Home >> Honda >> 2006 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 40 (Horn)

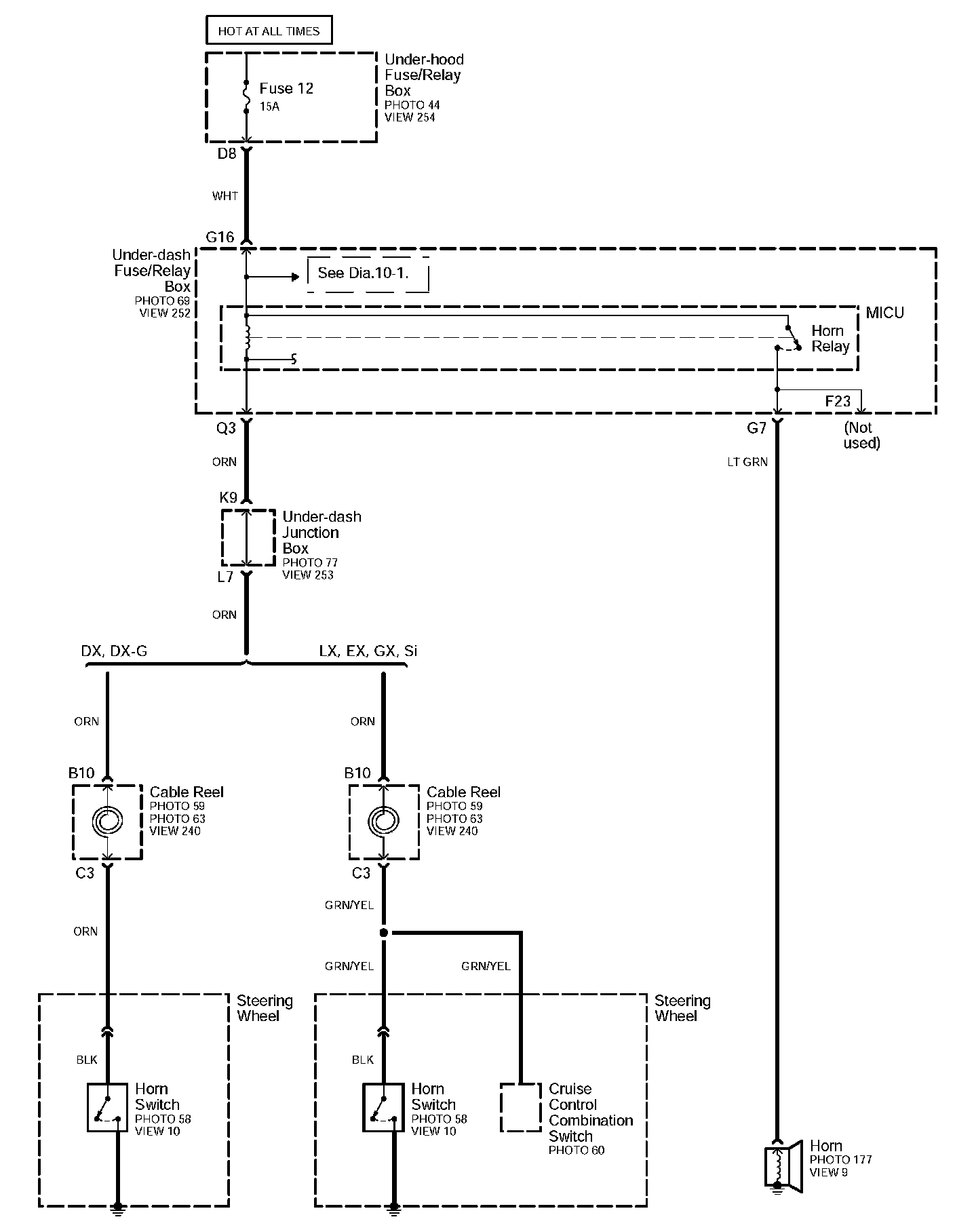

Diagram Set 40 (Horn)

Diagram 40:
