Diagram Set 23 (Fuel and Emissions (DX, DX-G, LX, EX))

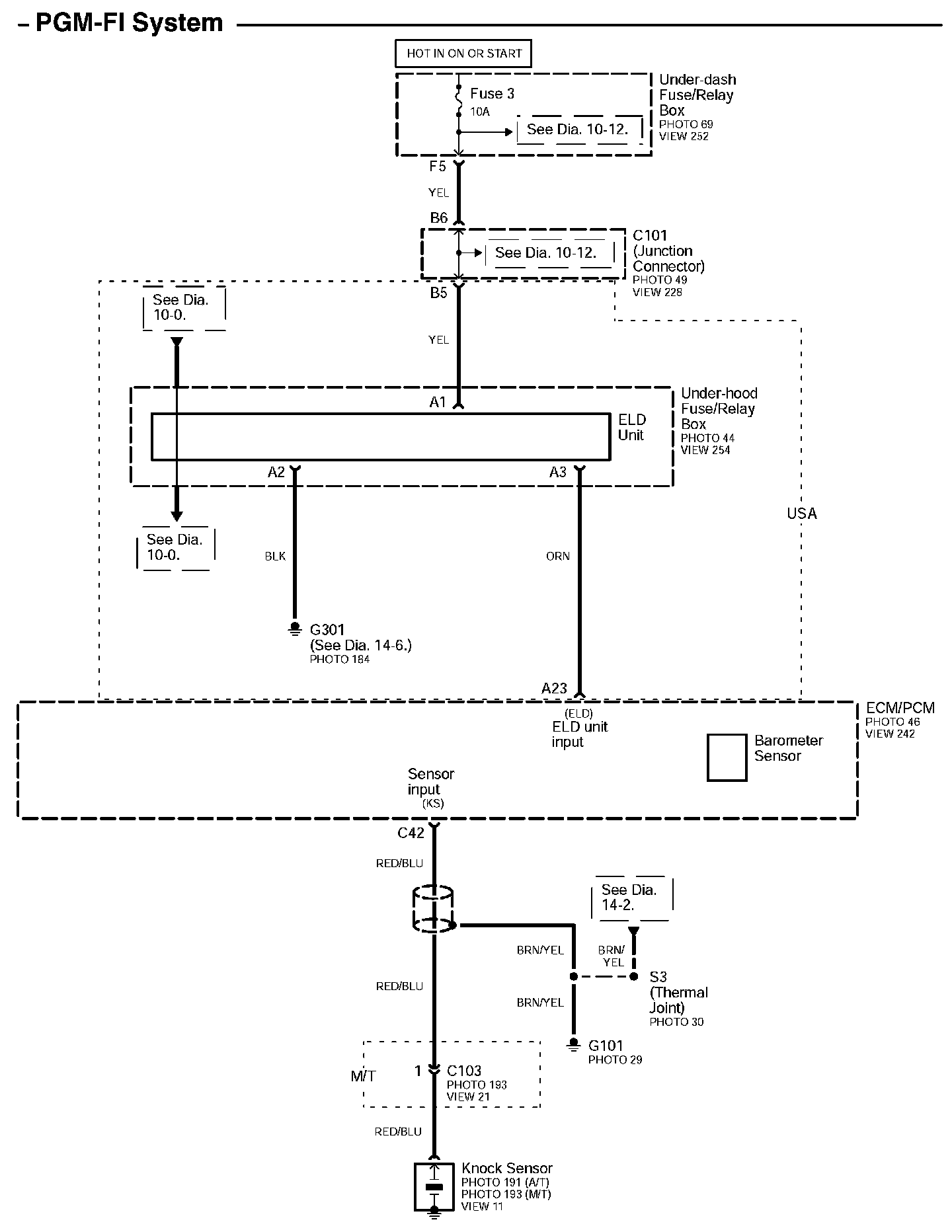

Diagram 23-0:

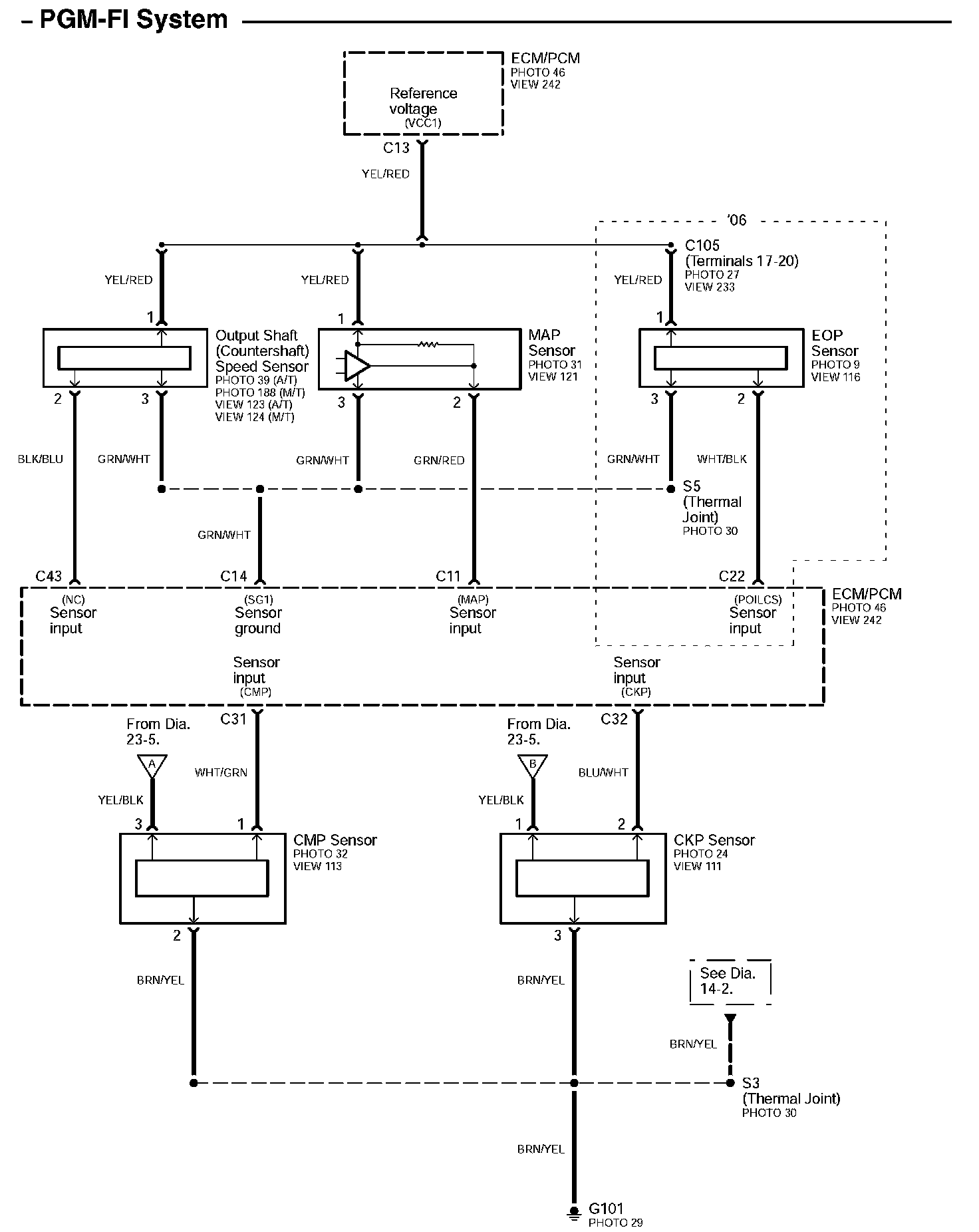

Diagram 23-1:

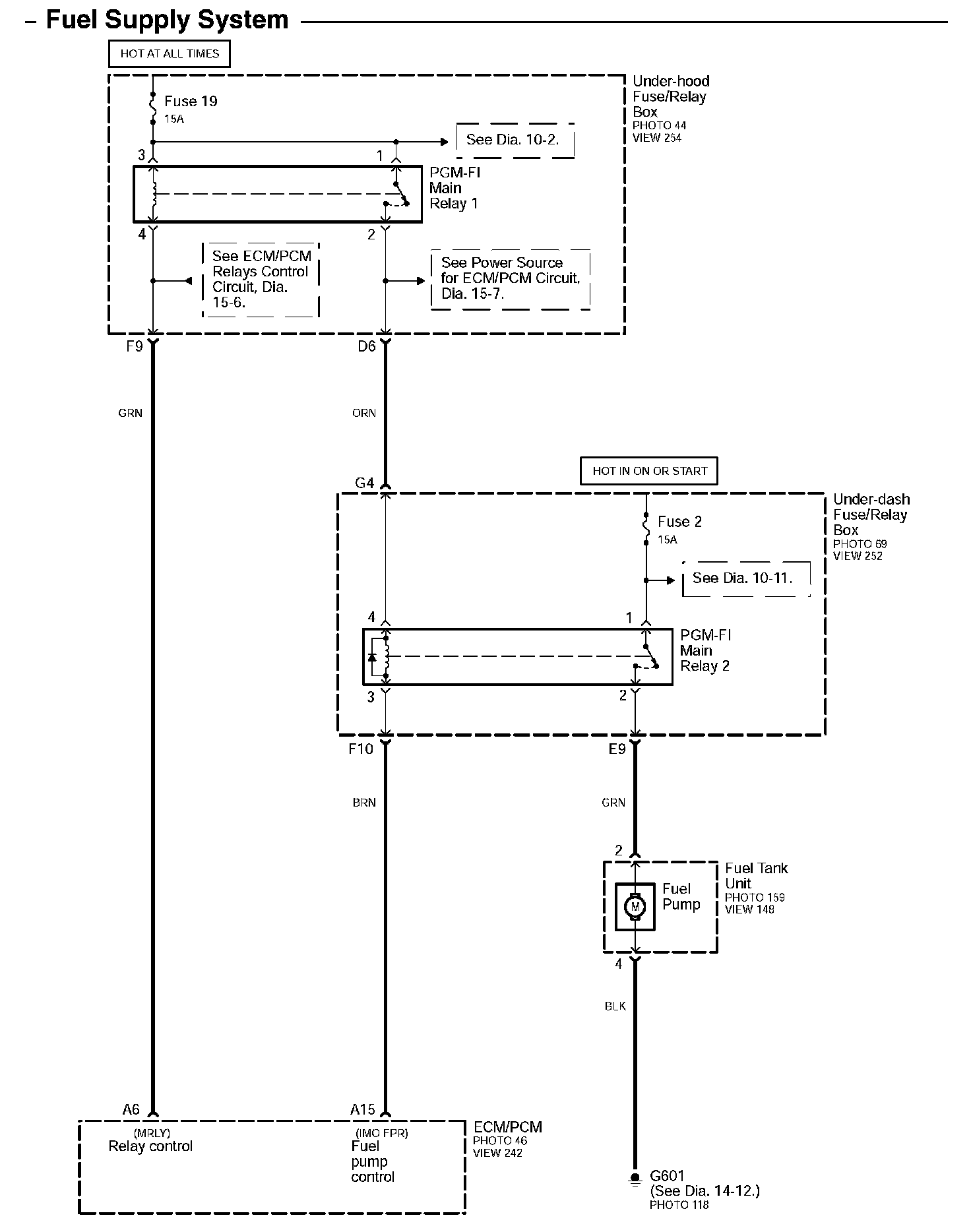

Diagram 23-2:

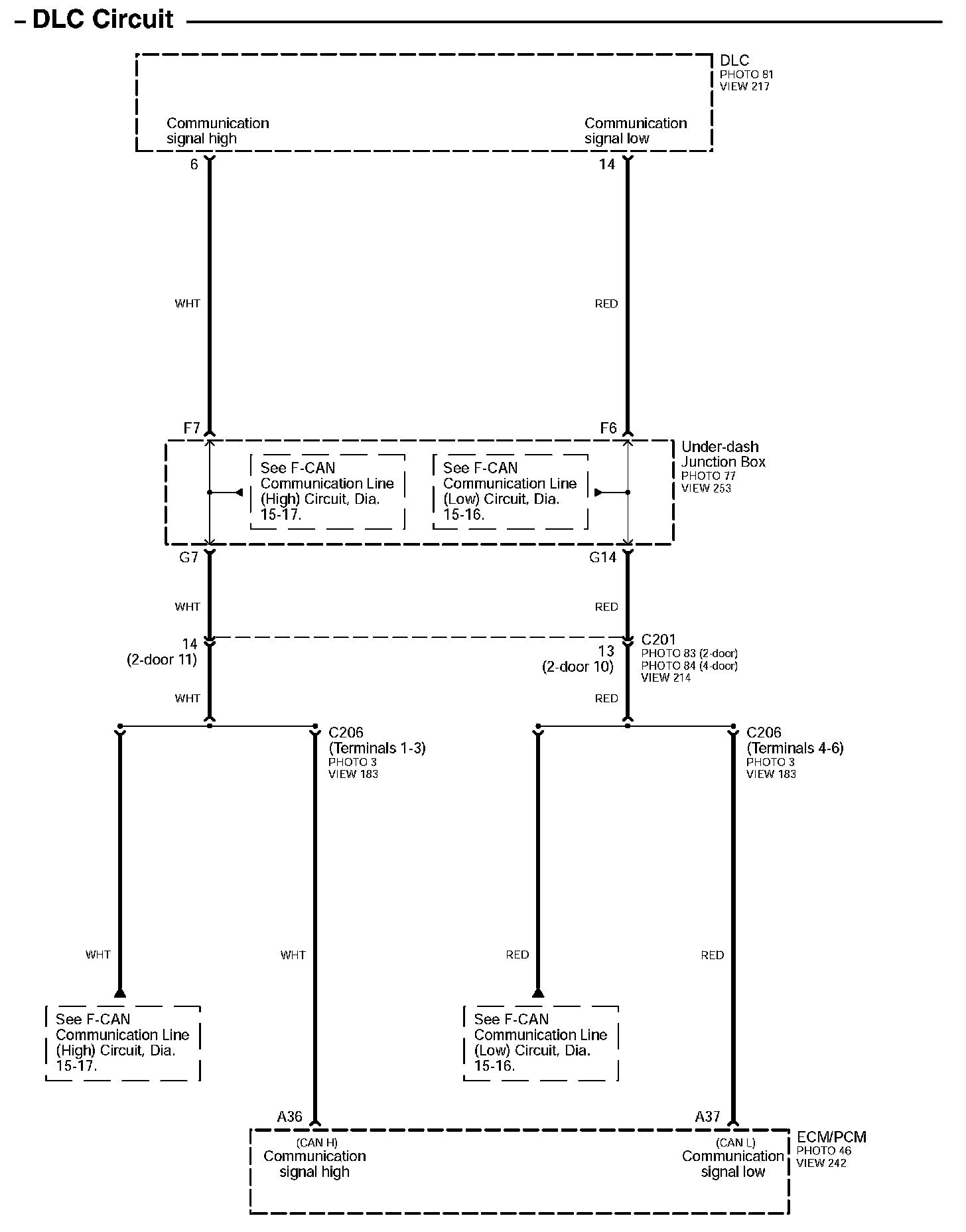

Diagram 23-3:

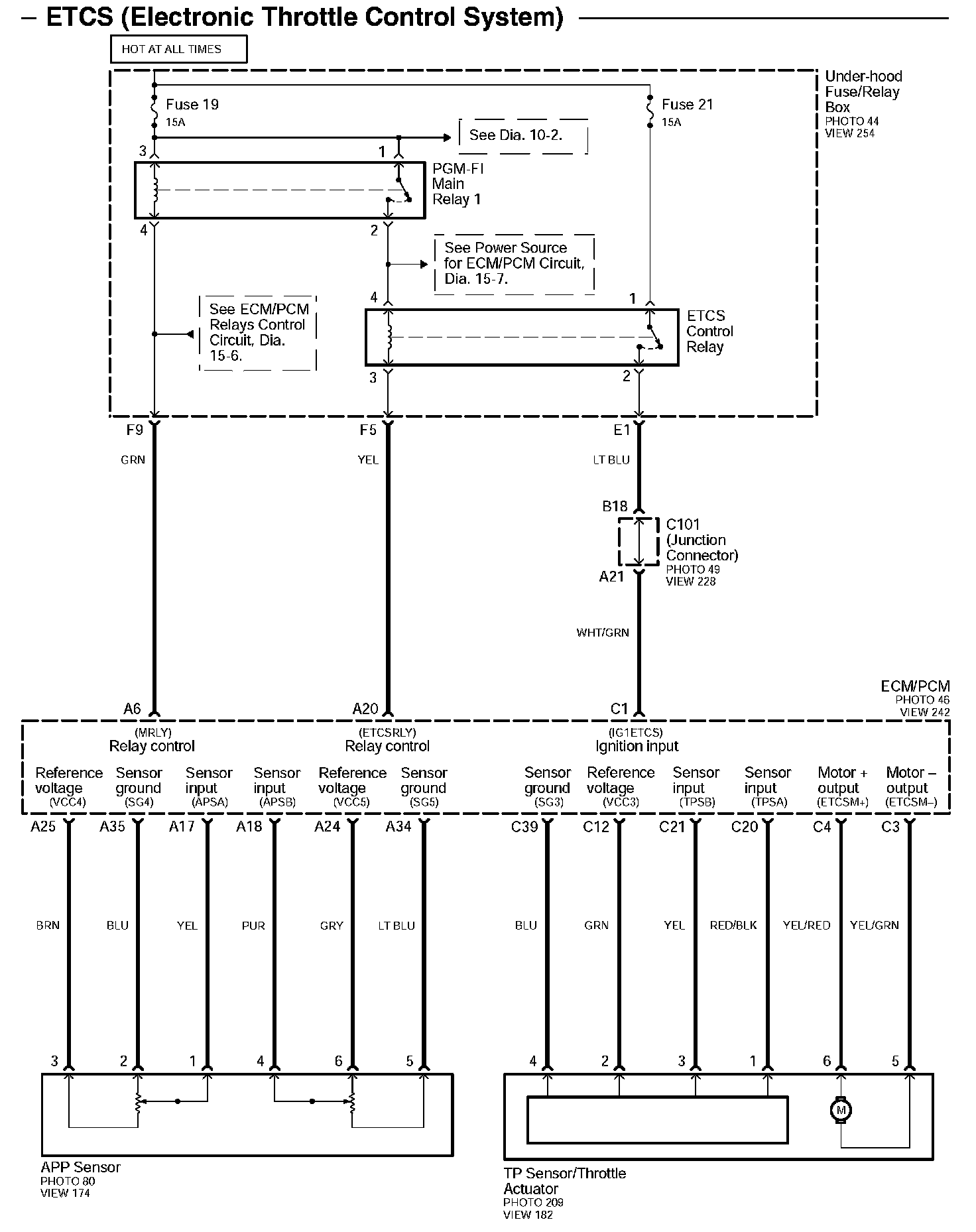

Diagram 23-4:

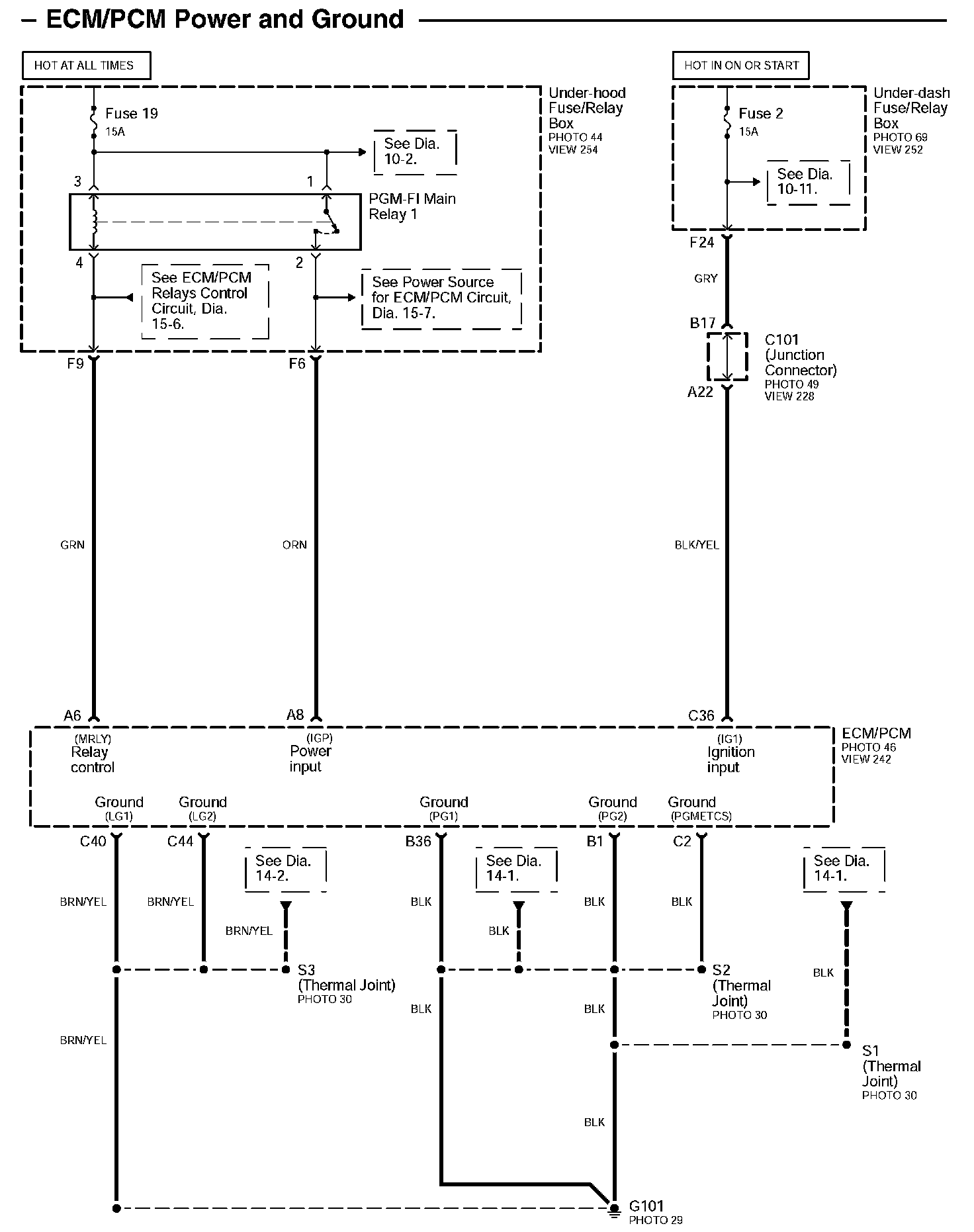

Diagram 23-5:

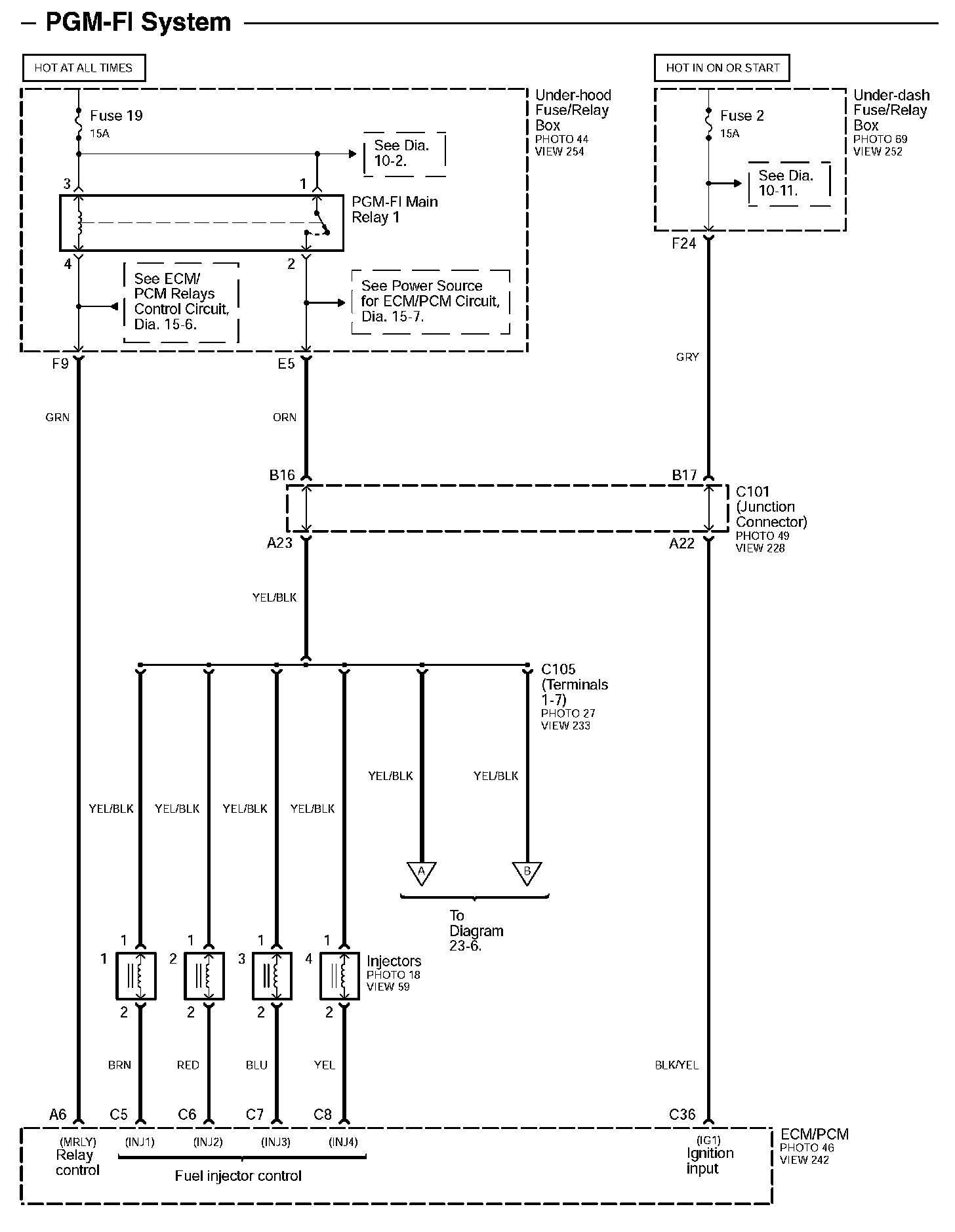

Diagram 23-6:

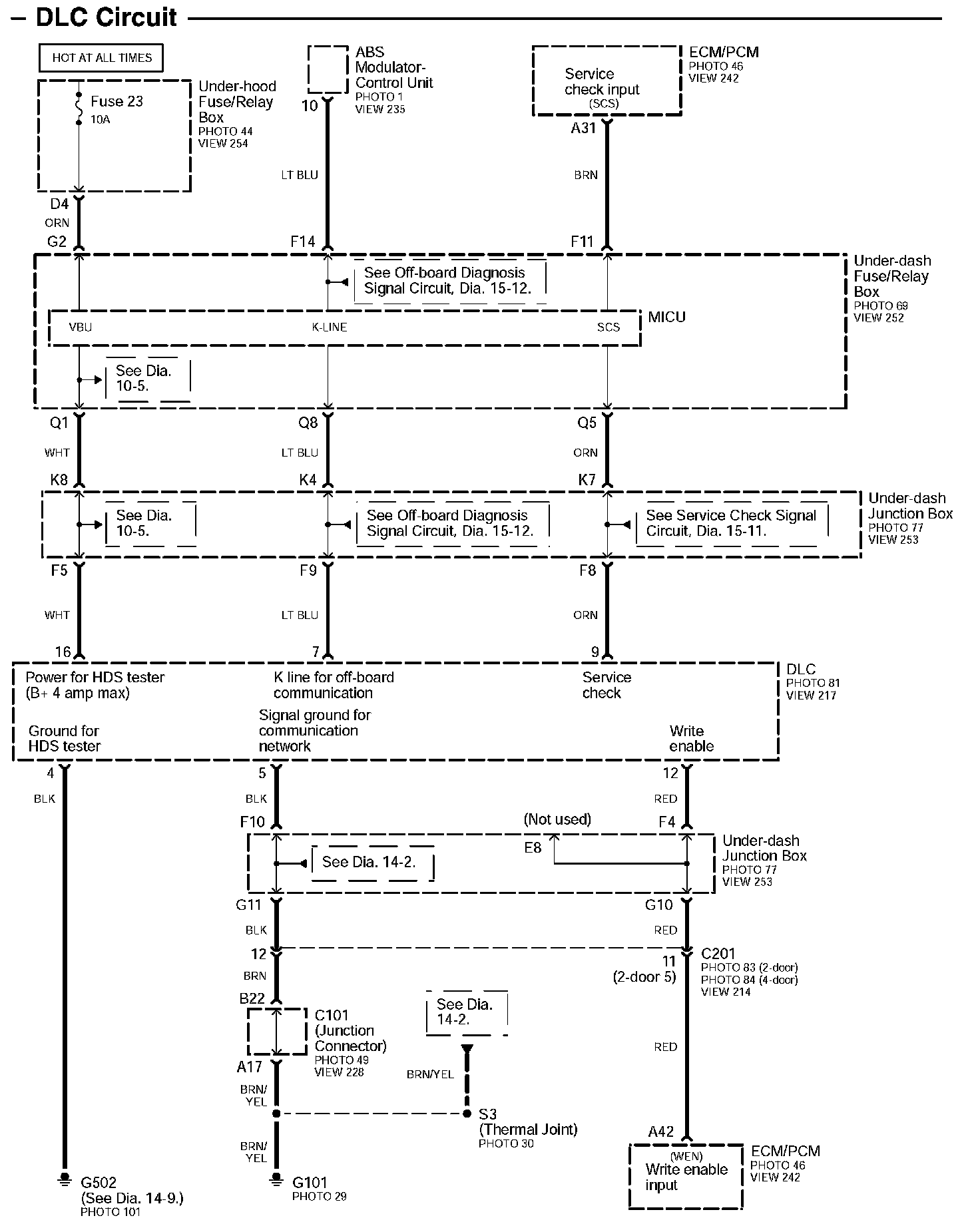

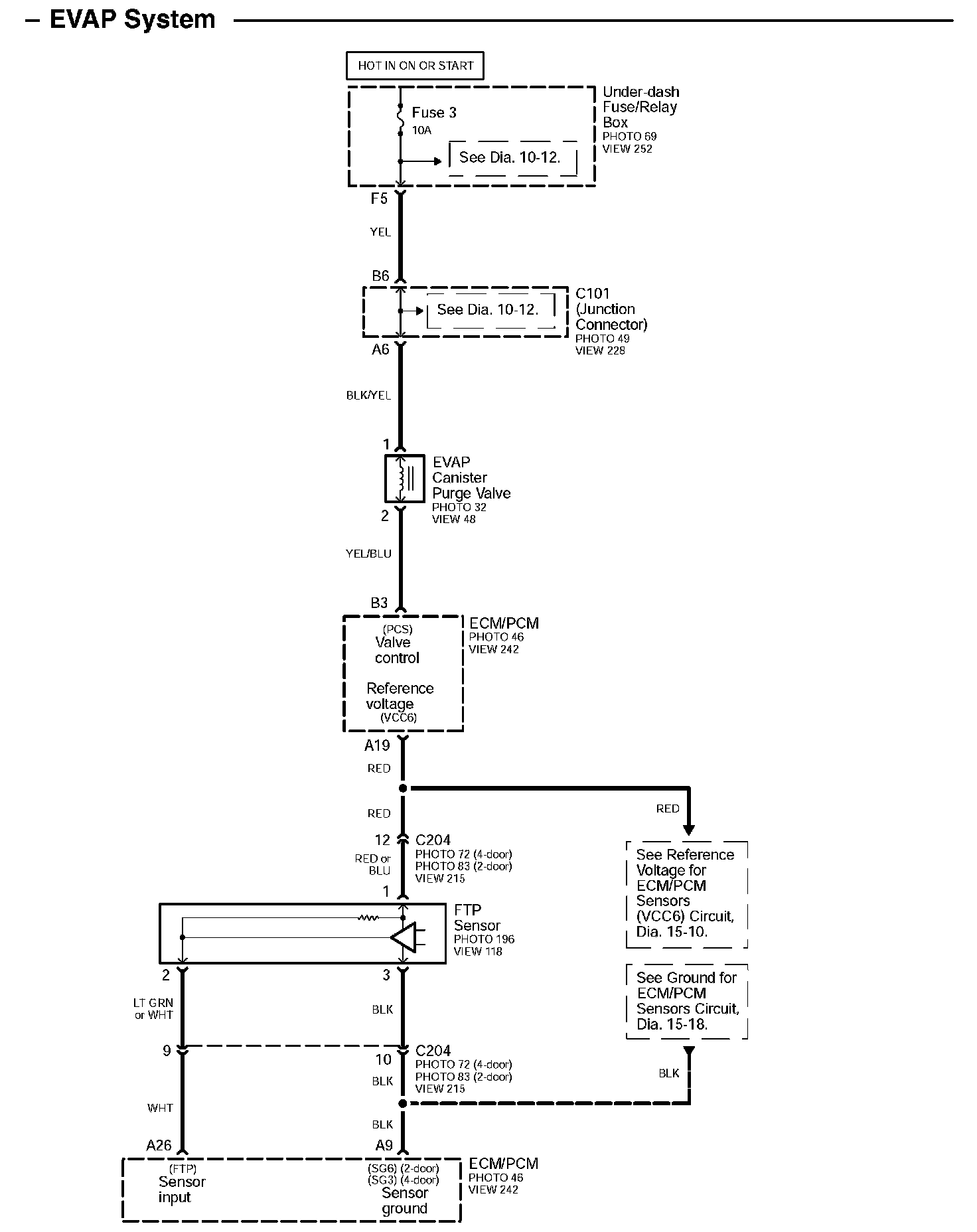

Diagram 23-7:



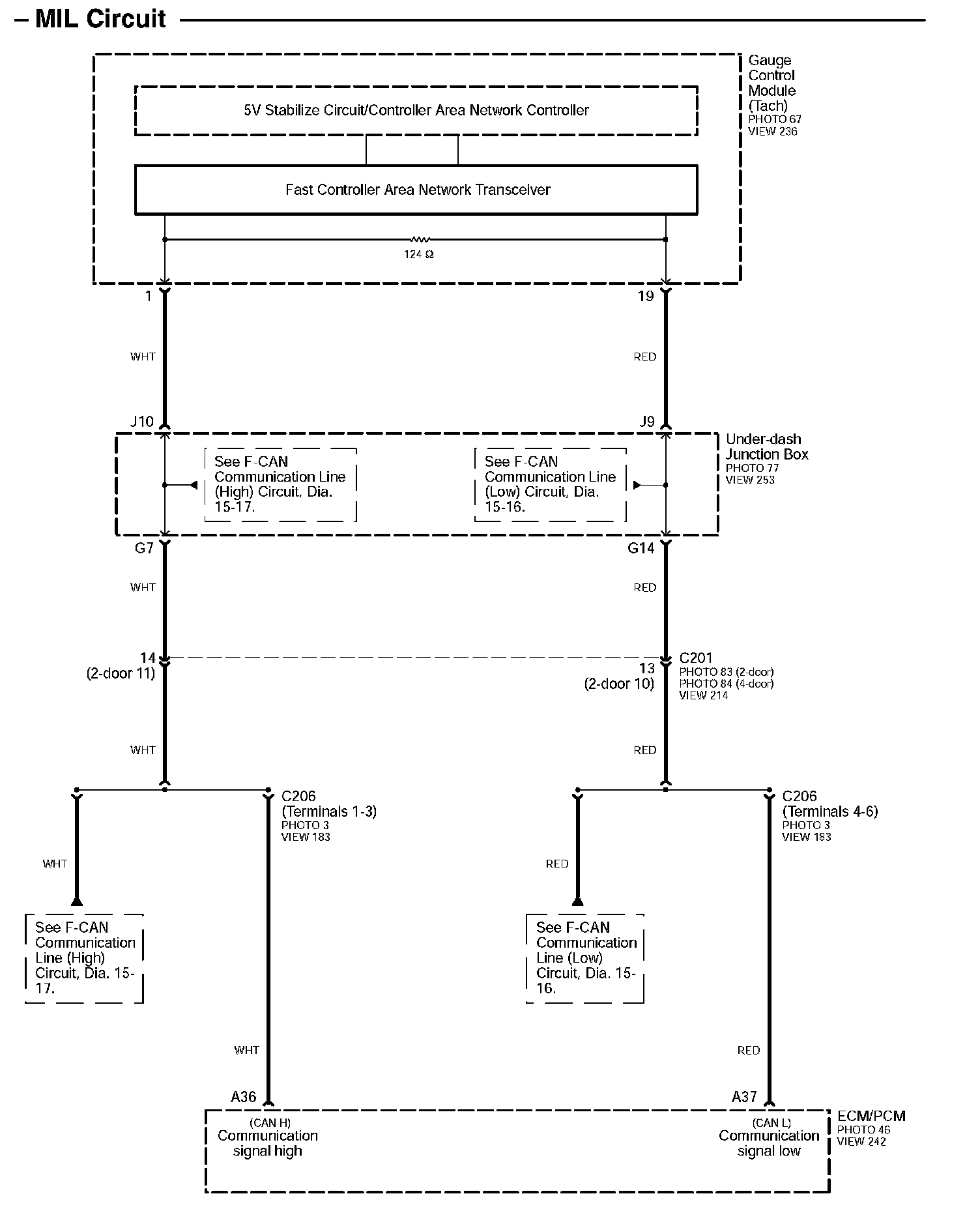

Diagram 23-8:



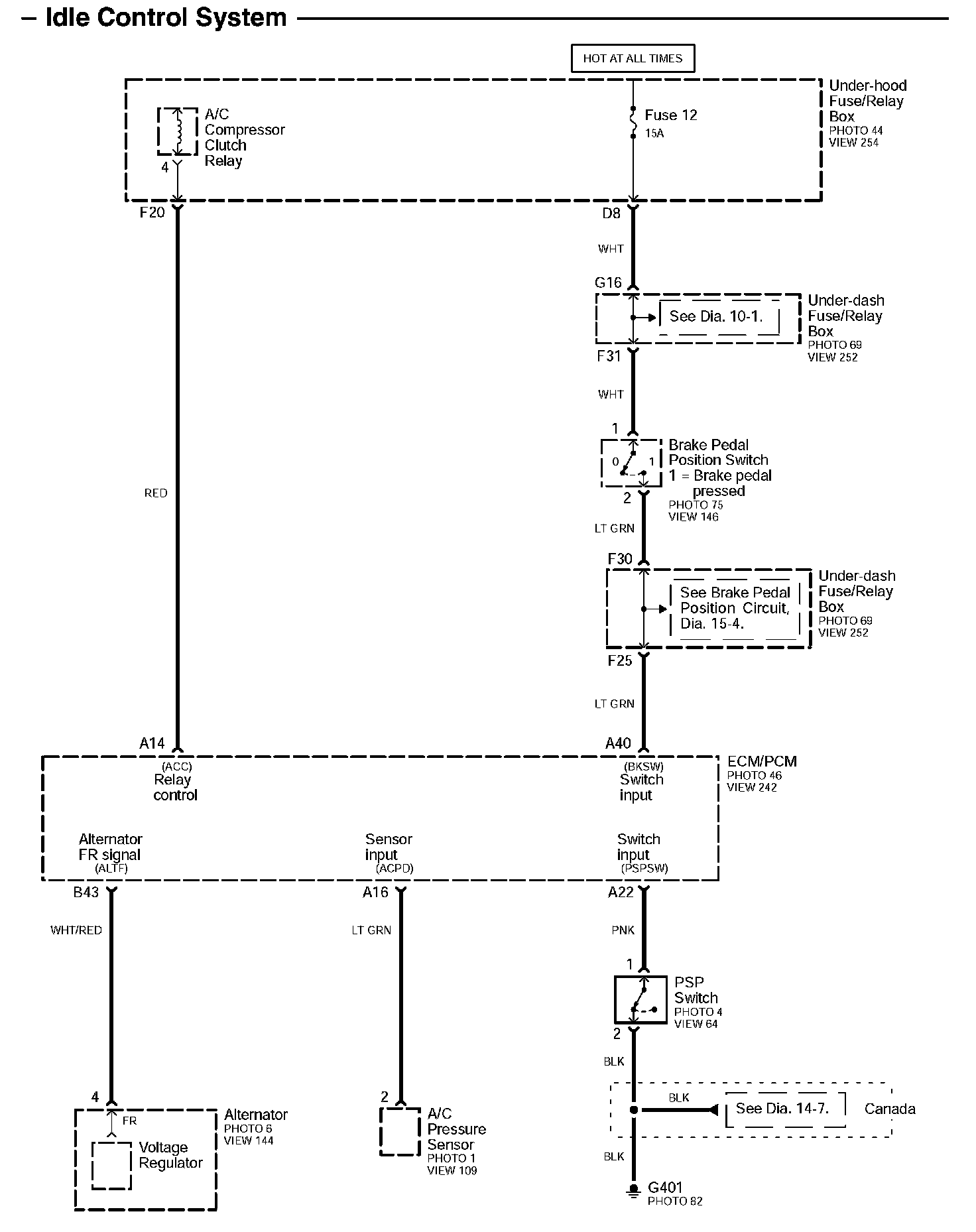

Diagram 23-9:



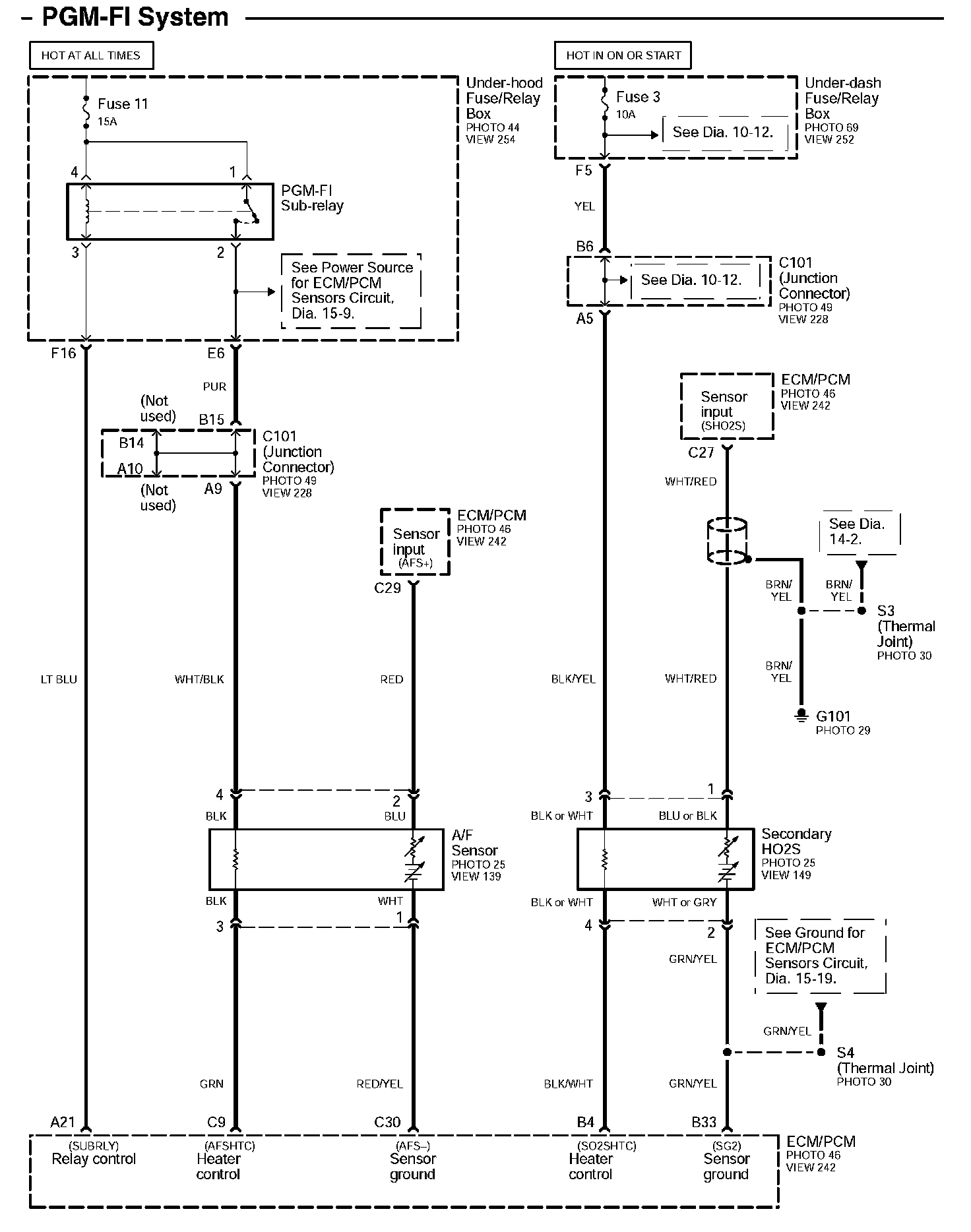

Diagram 23-10:



Diagram 23-11:



Diagram 23-12:



Diagram 23-13:



Diagram 23-14:



Diagram 23-15:



Diagram 23-16:
