Diagram Set 15 (Splice and Junction Connector Details)

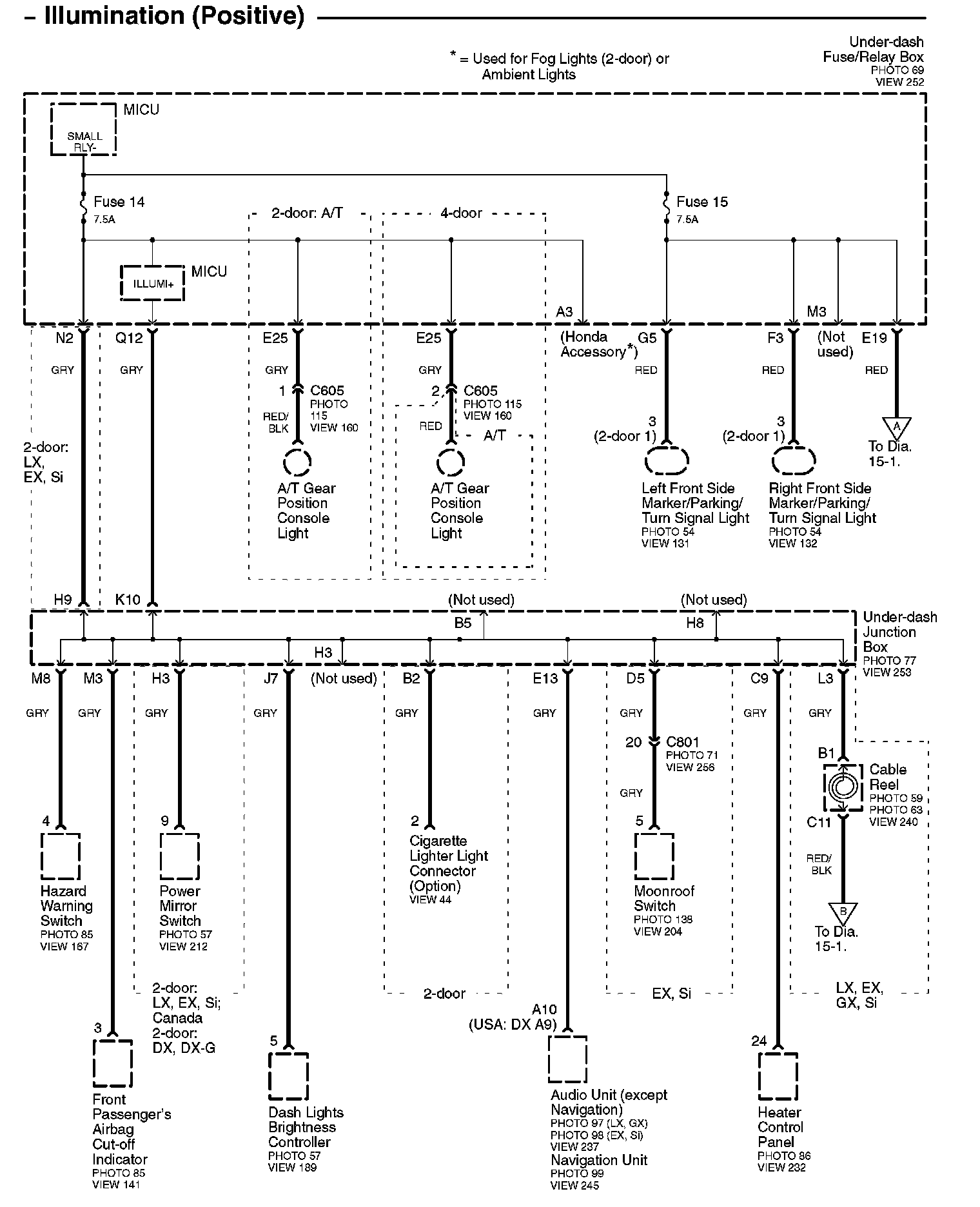

Illumination (Positive) Part 1:

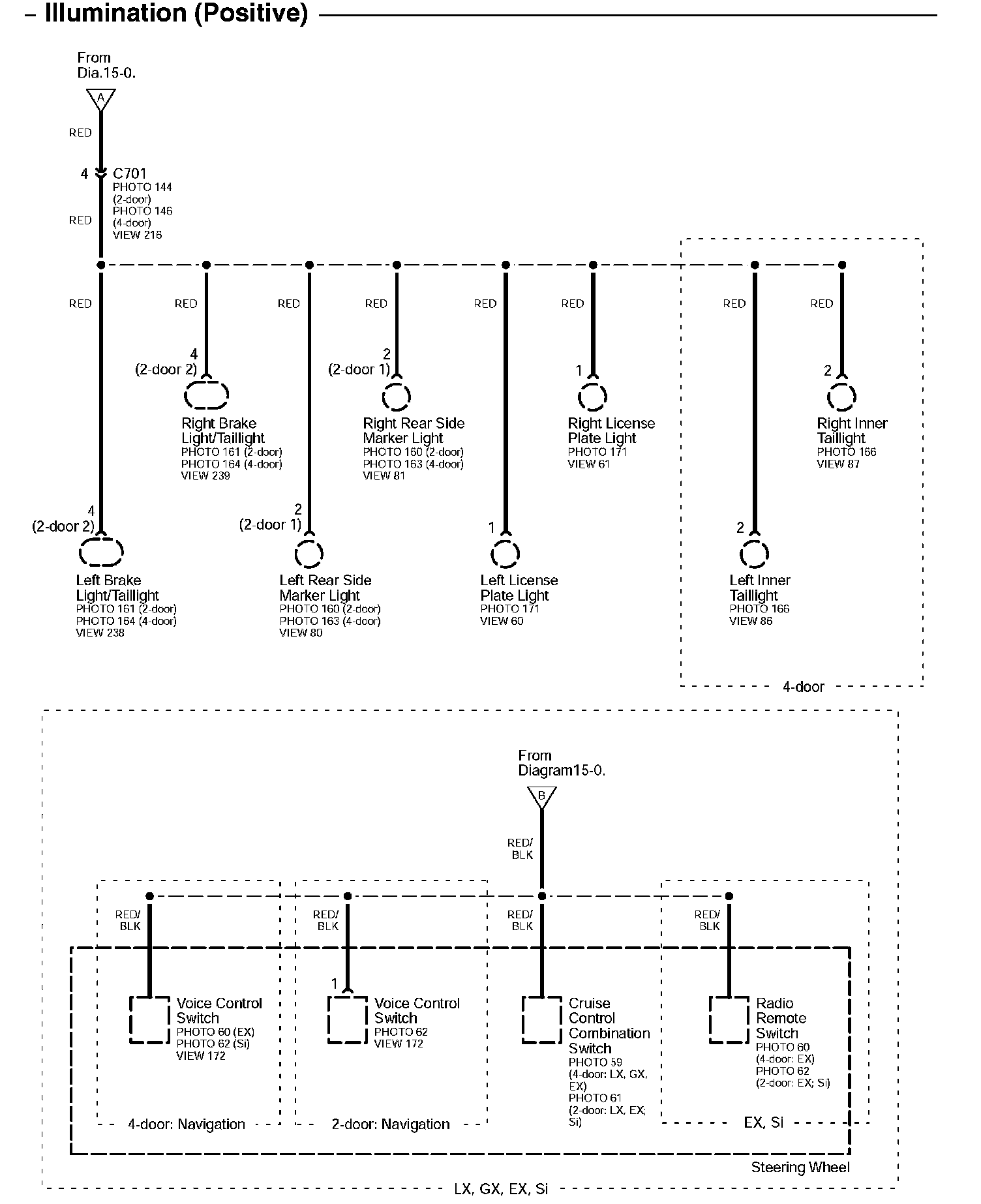

Illumination (Positive) Part 2:
