Connectors ID By Location on Harness
>>

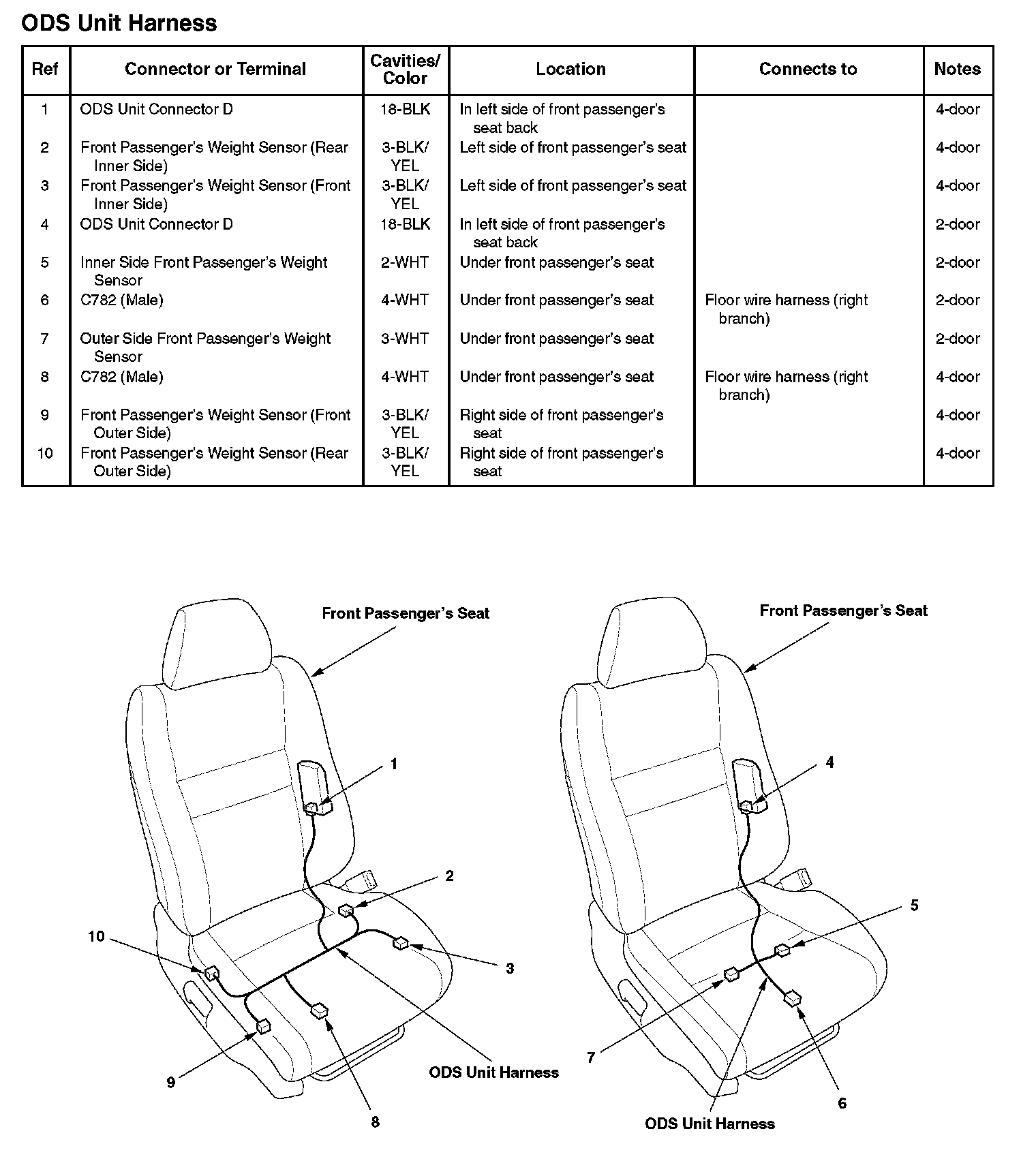

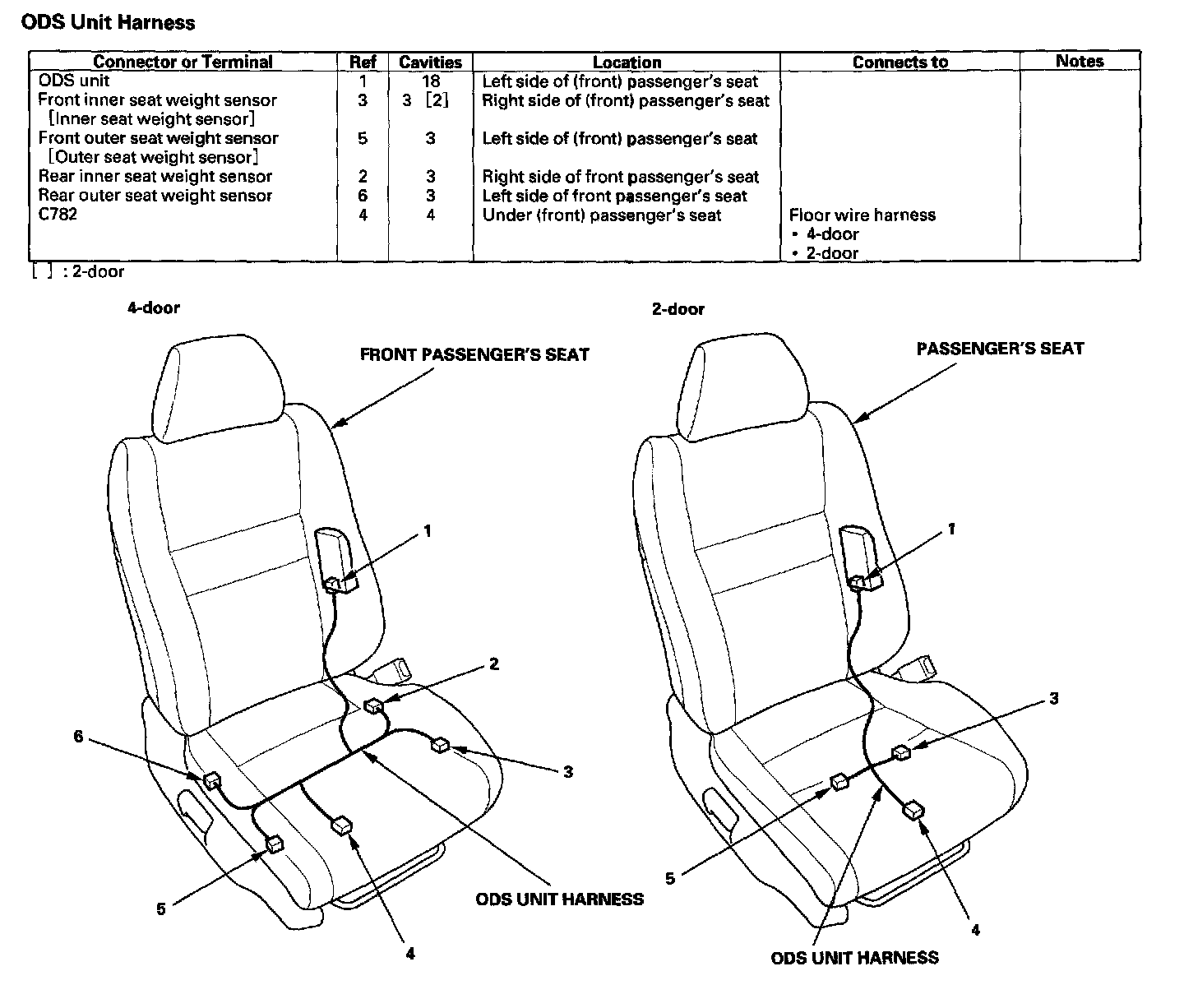

ODS Unit Harness
ODS Unit Harness
ODS Unit Harness:
ODS Unit Harness:
