Wheel Speed Sensor: Locations

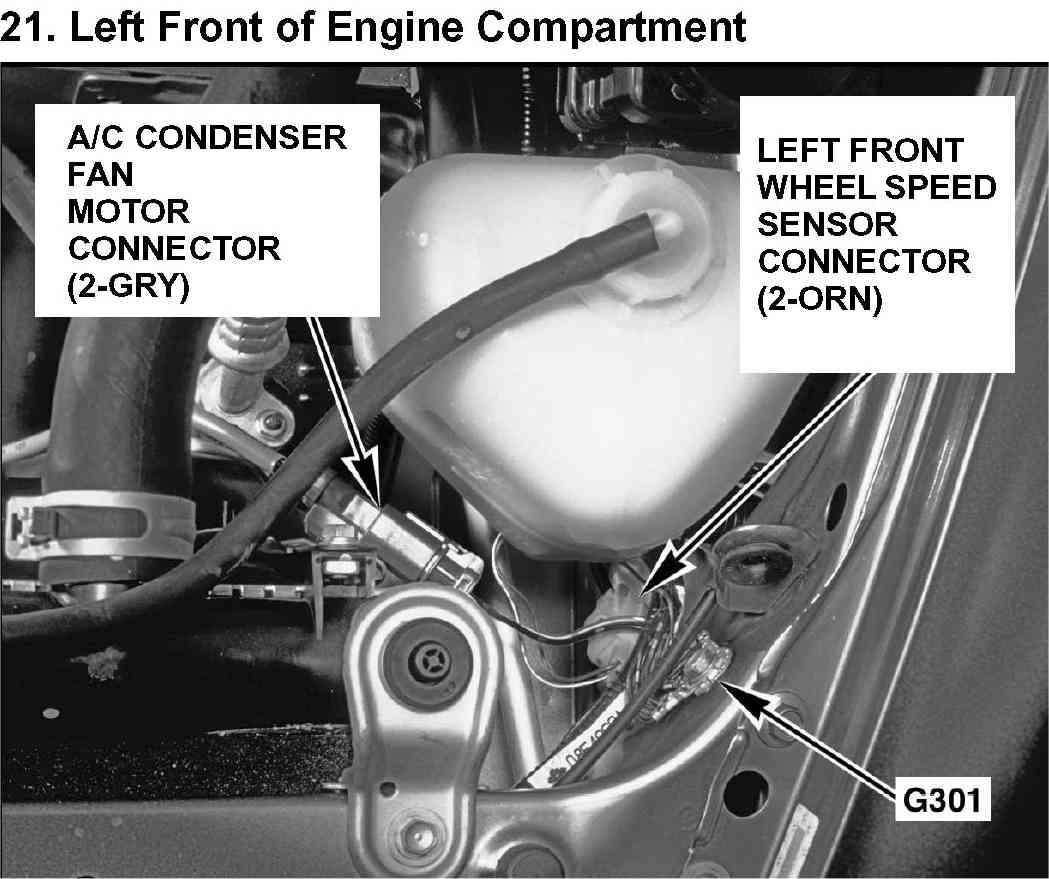

21. Left Front of Engine Compartment:

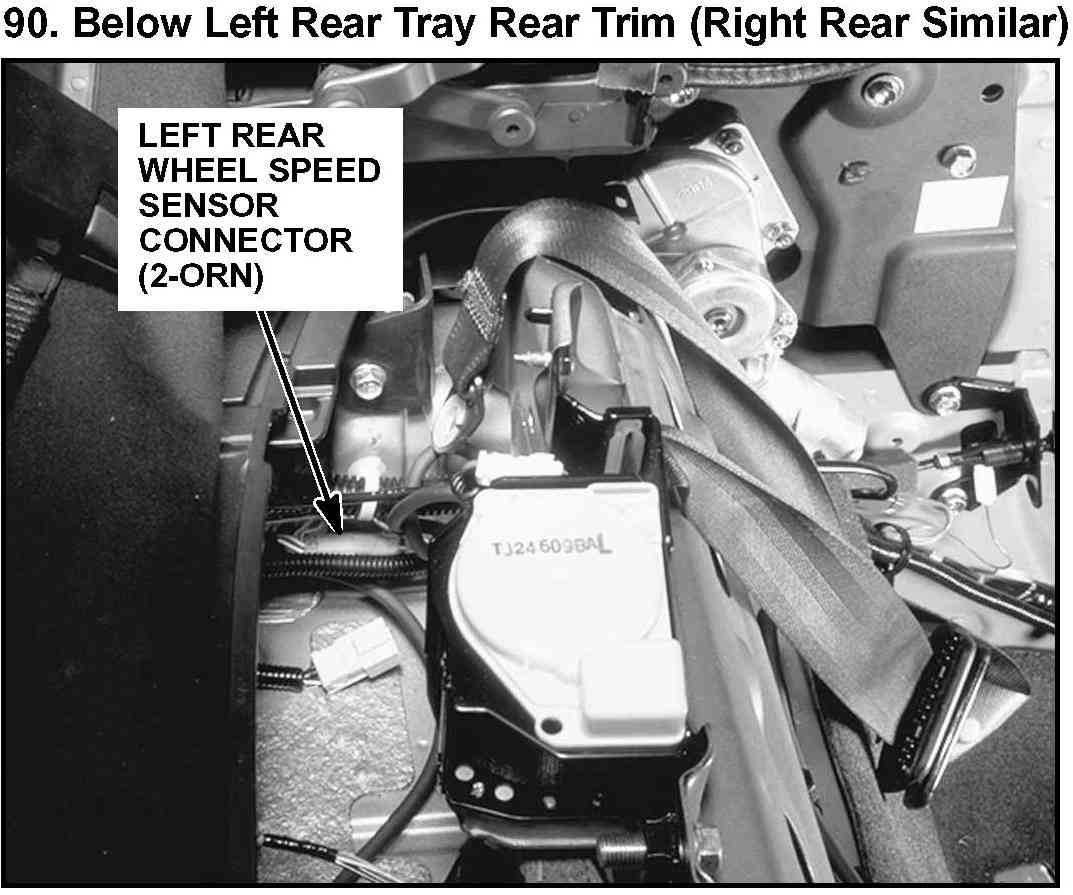

90. Below Left Rear Tray Rear Trim (Right Rear Similar):

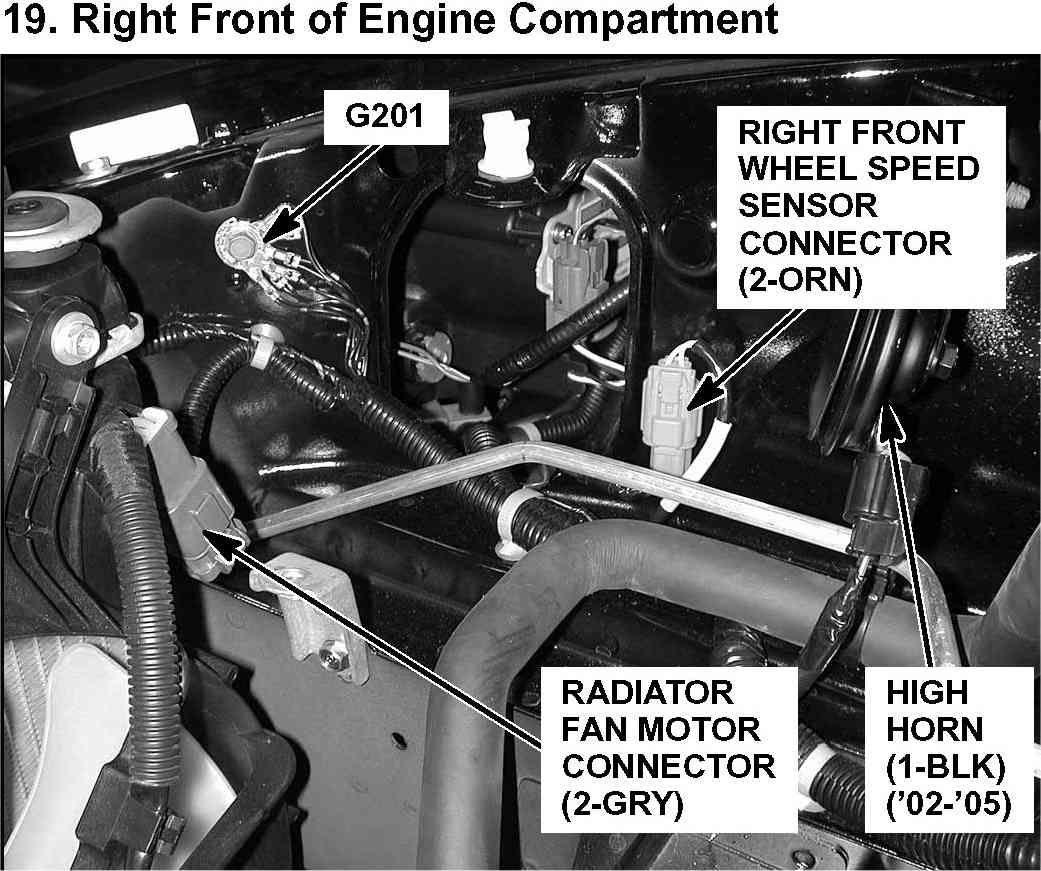

19. Right Front of Engine Compartment:
