Home >> Honda >> 2005 >> S2000 L4-2.2L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Horn Switch >> Locations

Horn Switch: Locations

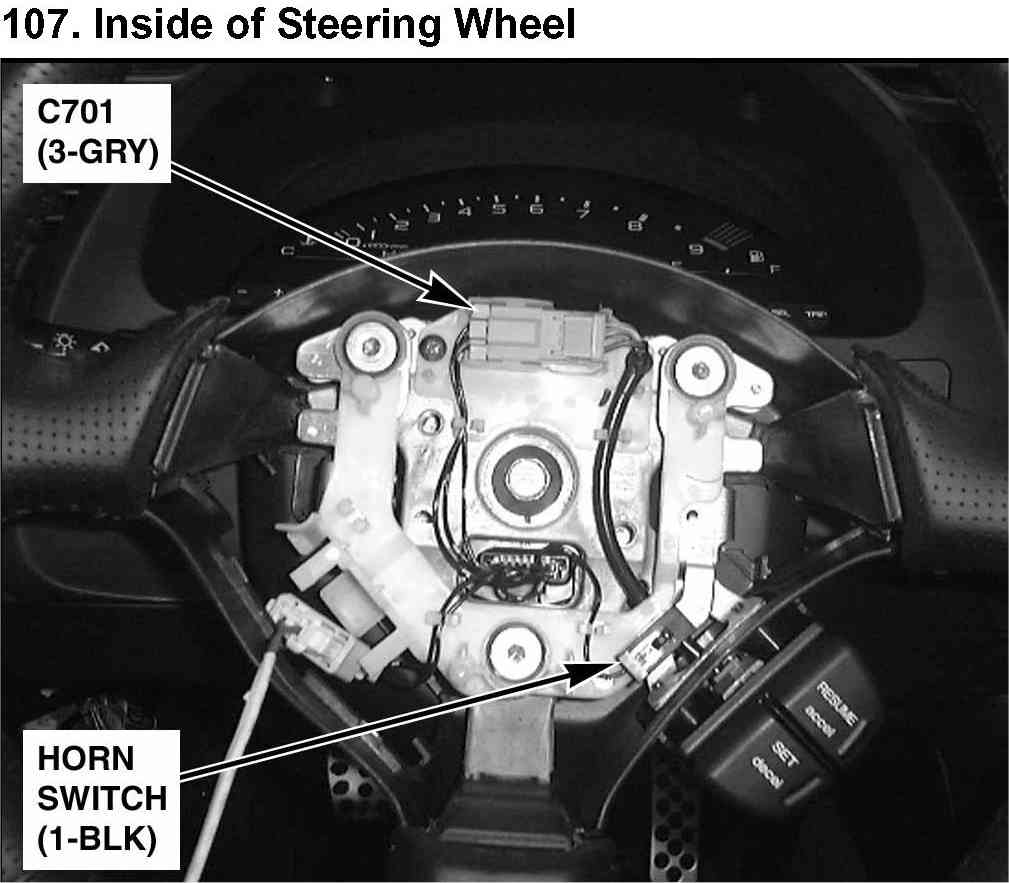

107. Inside of Steering Wheel:

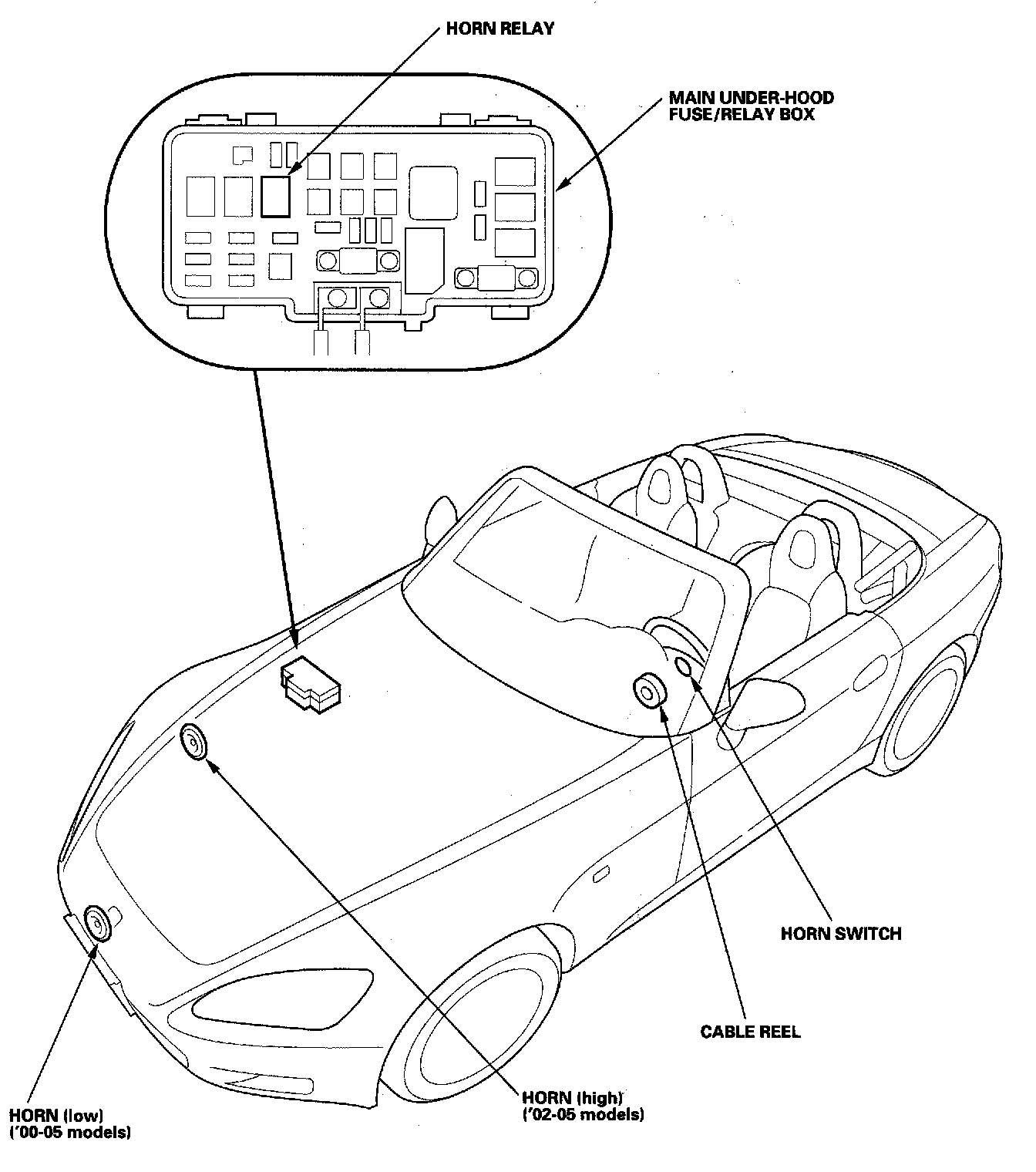

Horns - Component Location Index:
