Circuit Diagrams

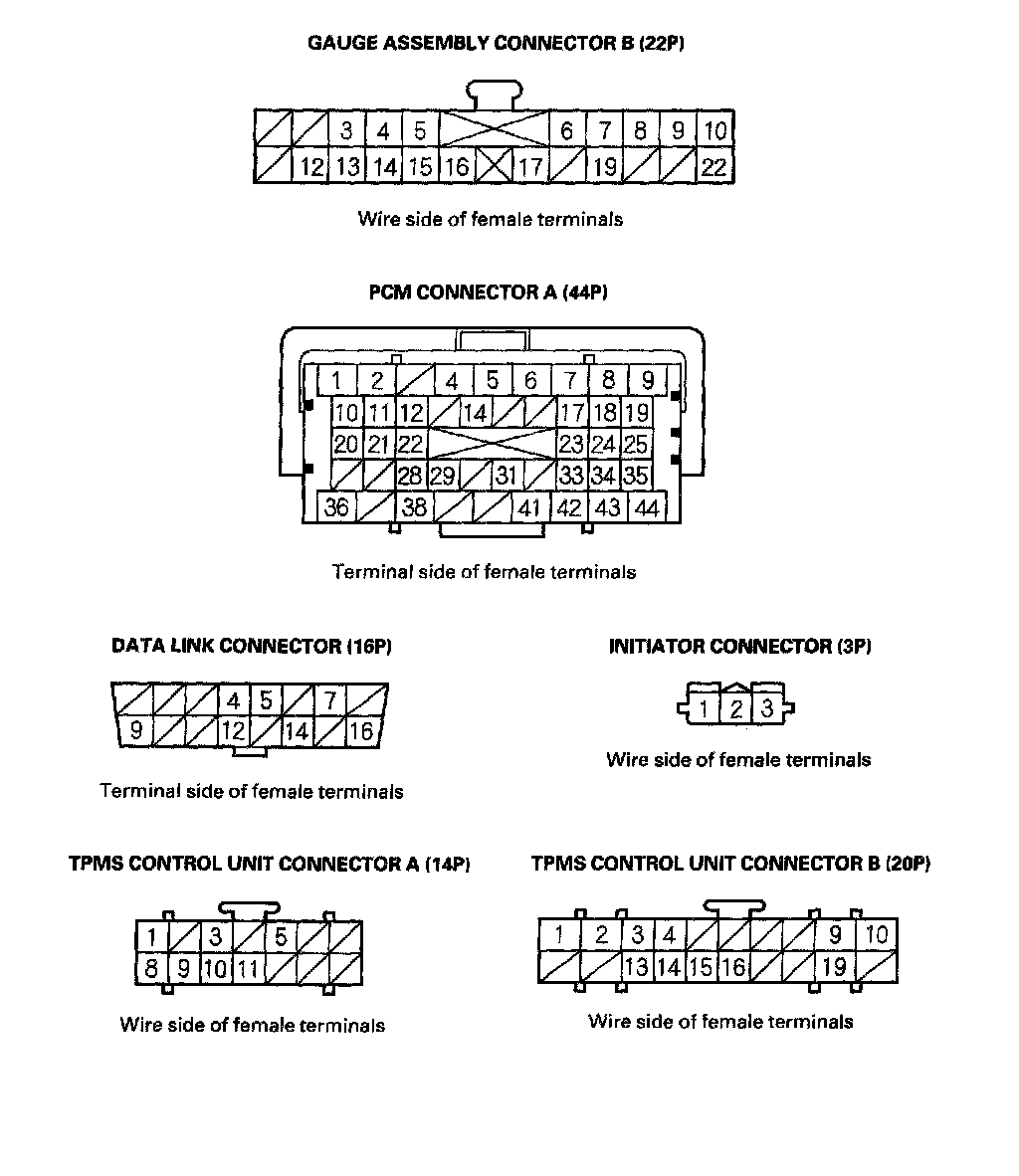

TPMS Circuit Diagram - Part 1:

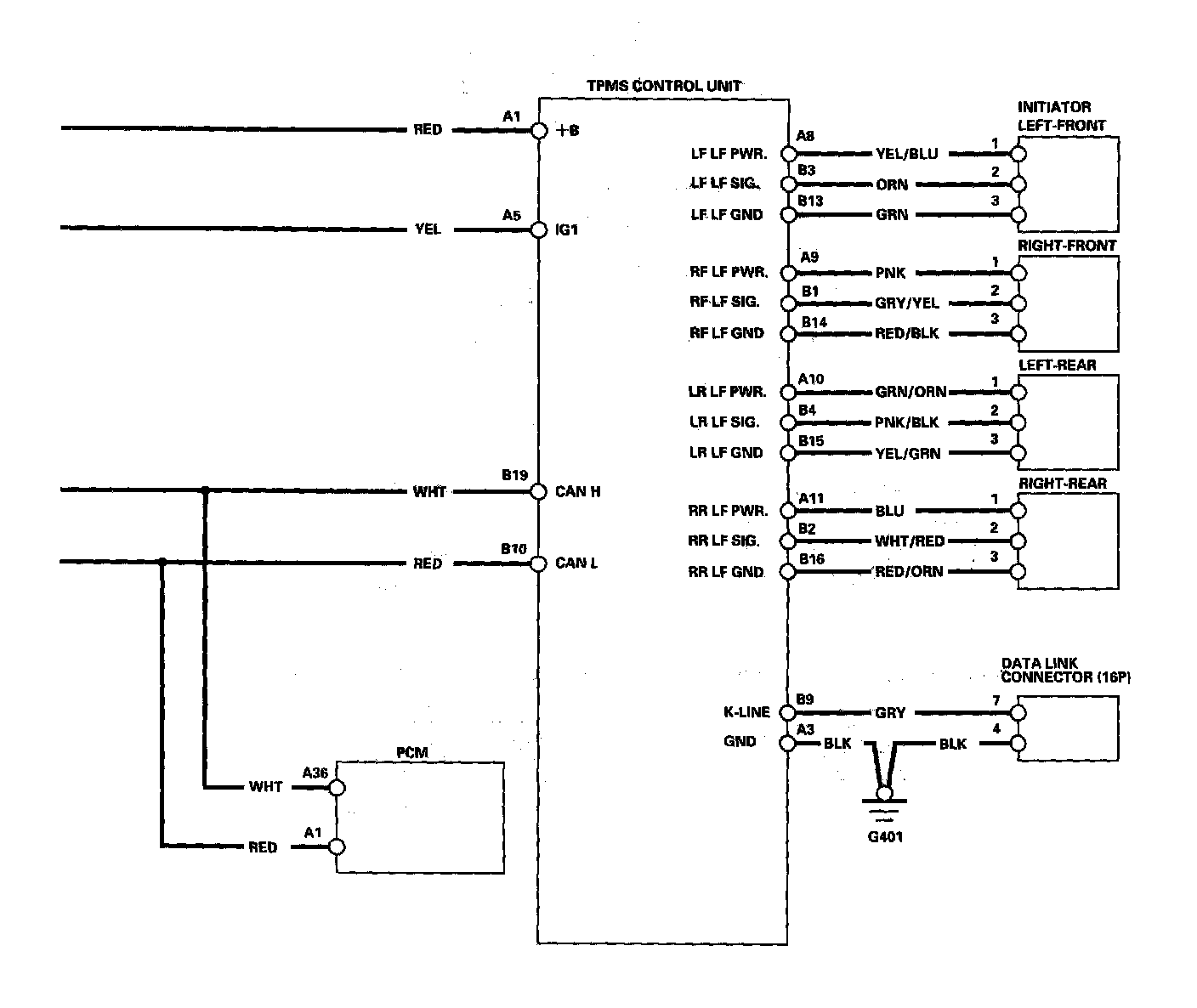

TPMS Circuit Diagram - Part 2:



TPMS Circuit Diagram - Part 3:
