Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Service and Repair >> ABS

ABS

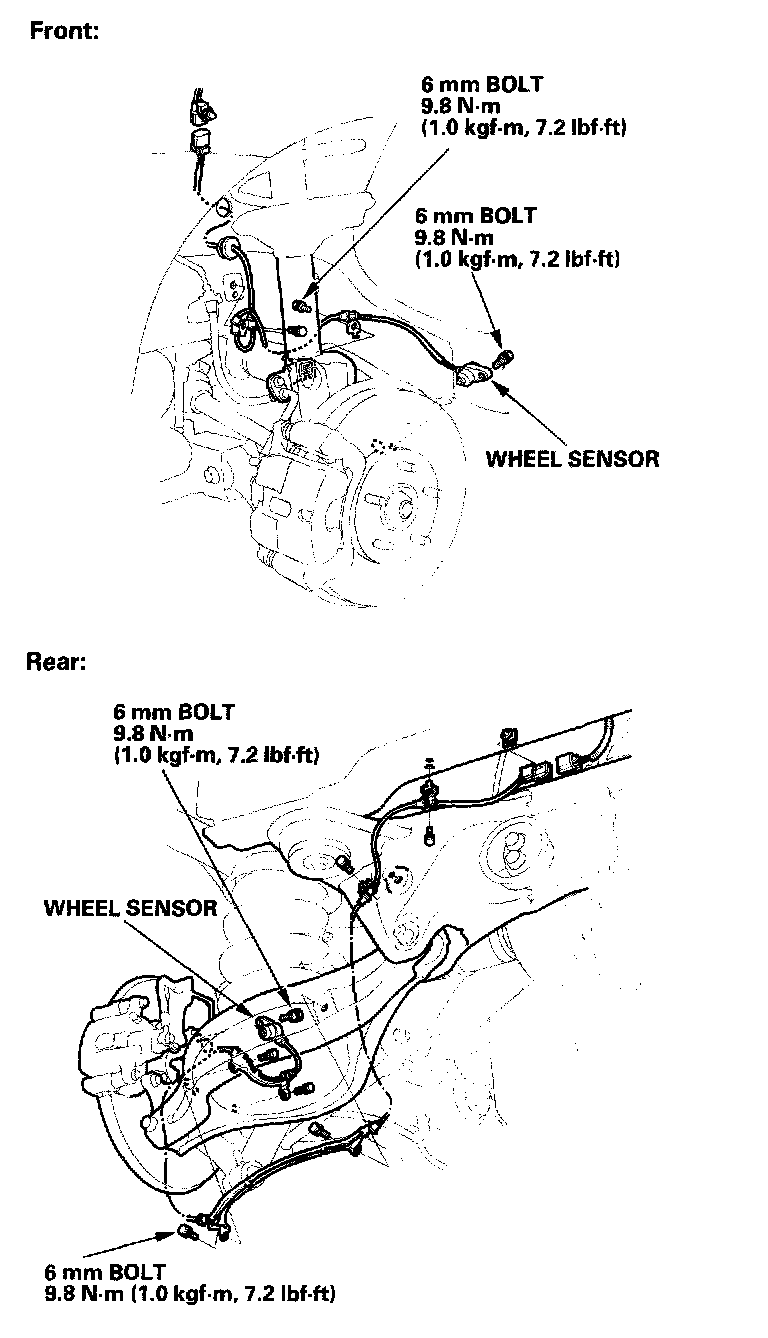

Wheel Sensor Replacement





NOTE: Install the sensors carefully to avoid twisting the wires.
