Wheel Speed Sensor: Locations

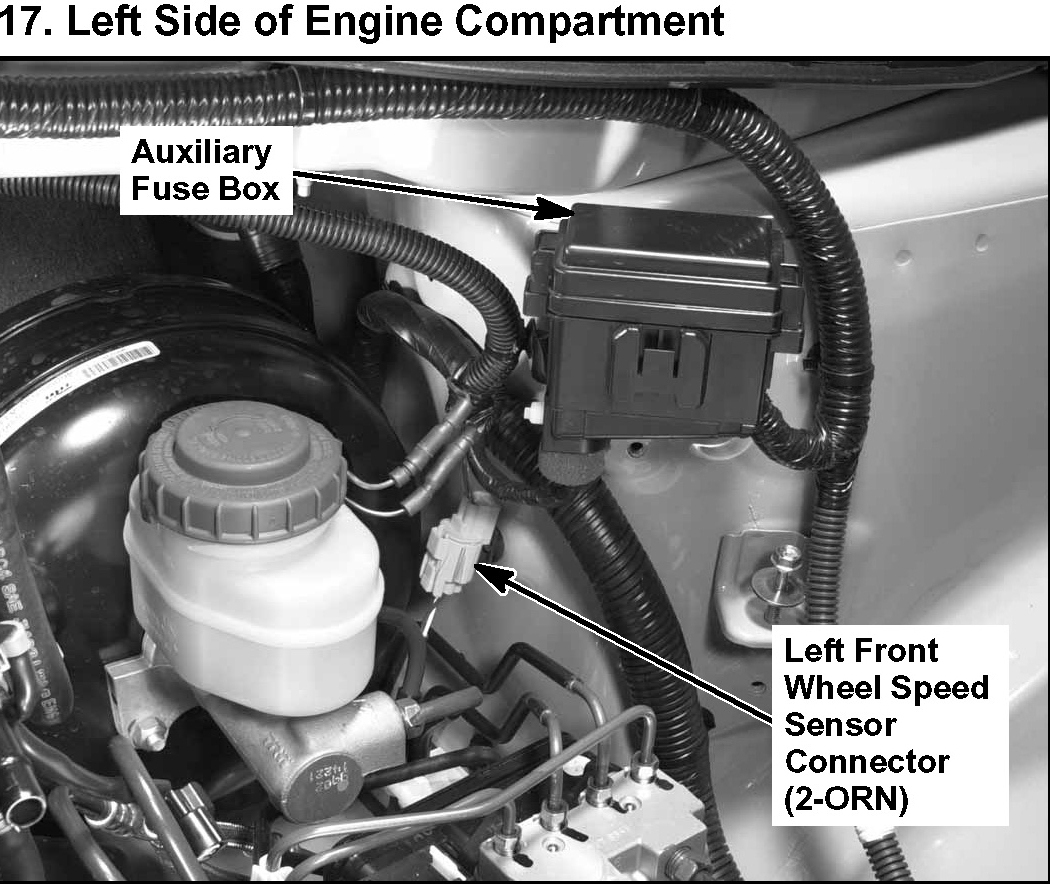

17. Left Side Of Engine Compartment:

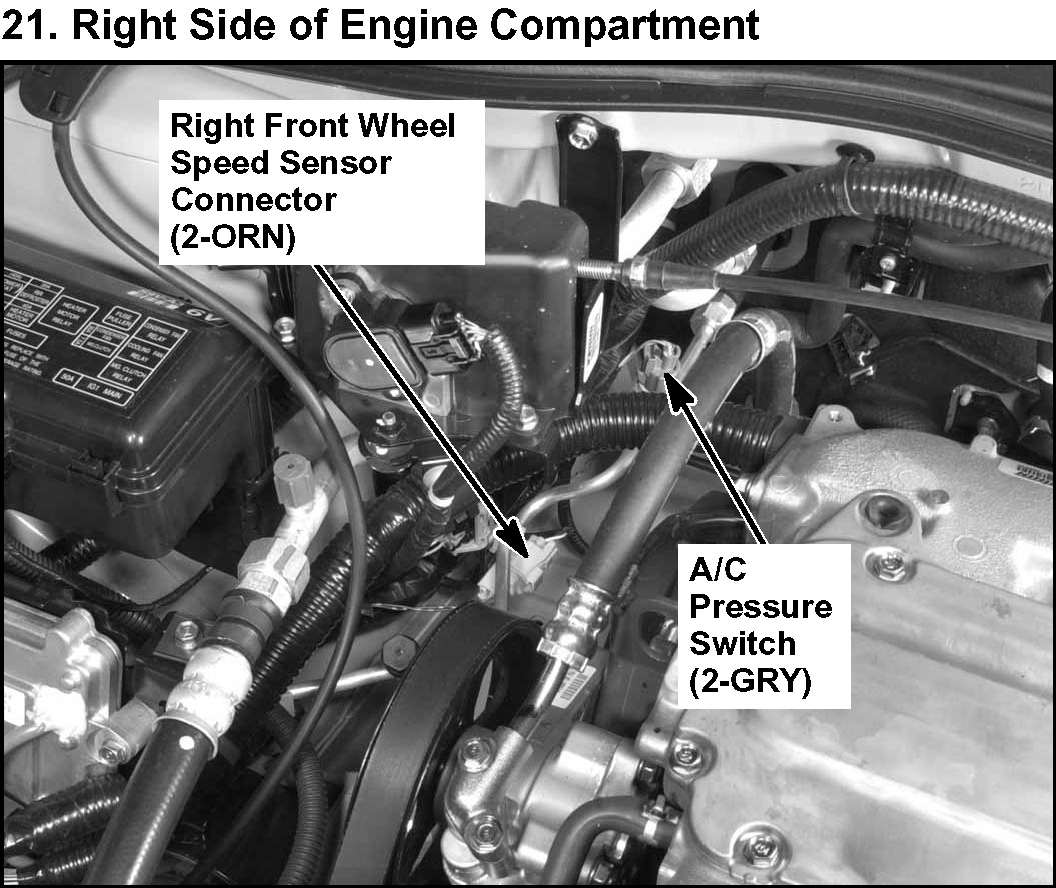

21. Right Side Of Engine Compartment:

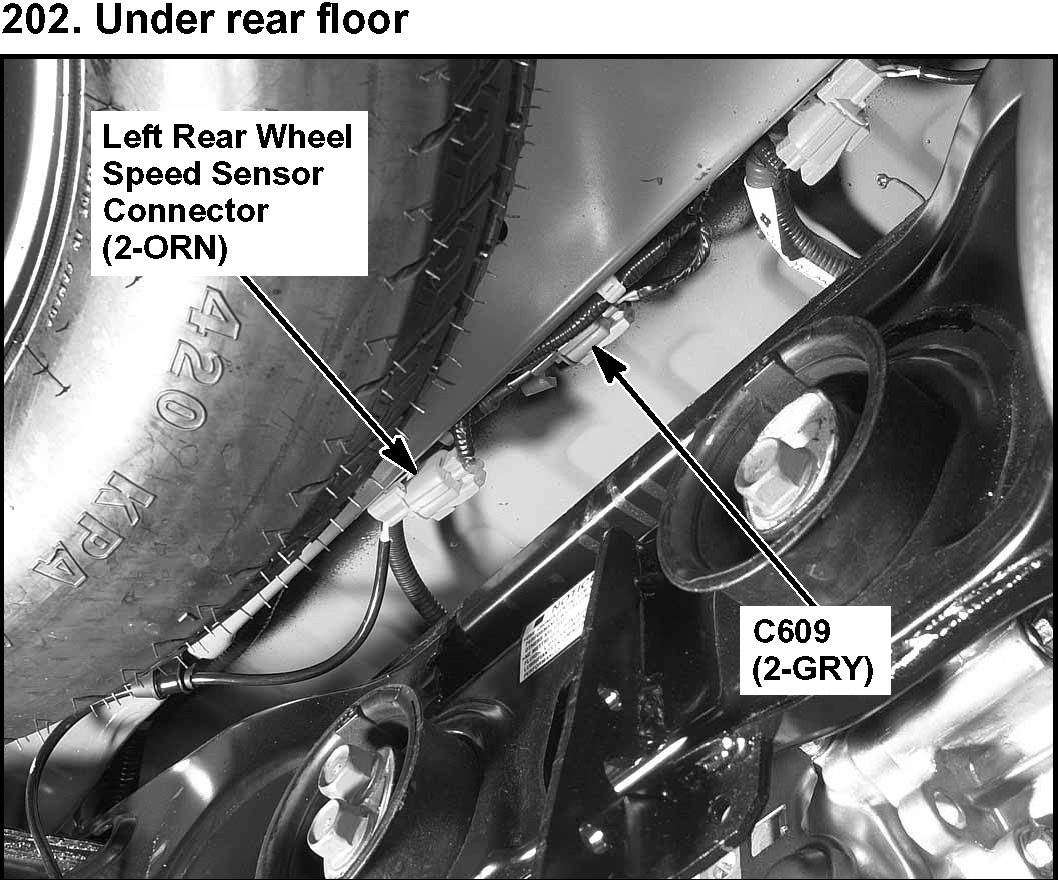

202. Under Rear Floor:

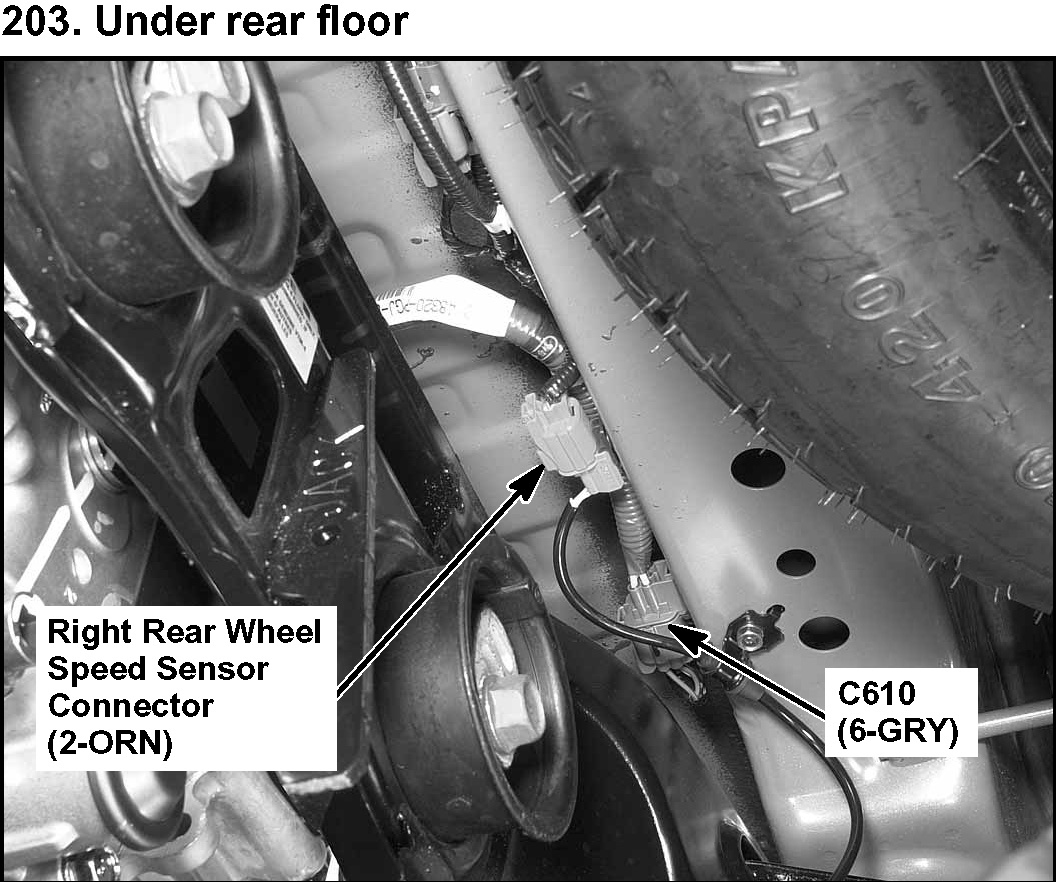

203. Under Rear Floor:
