Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Motor Position Sensor >> Locations

Power Seat Motor Position Sensor: Locations

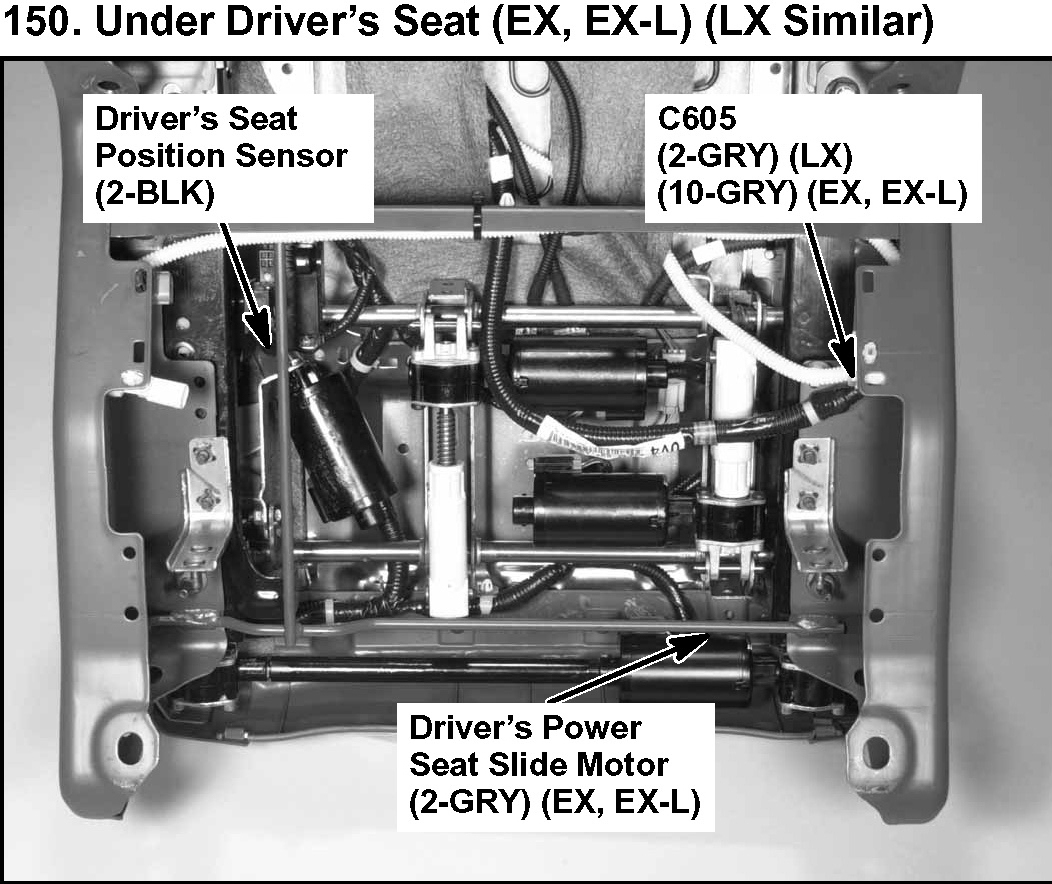

150. Under Driver's Seat (EX, EX-L) (LX Similar):
