Component Locations

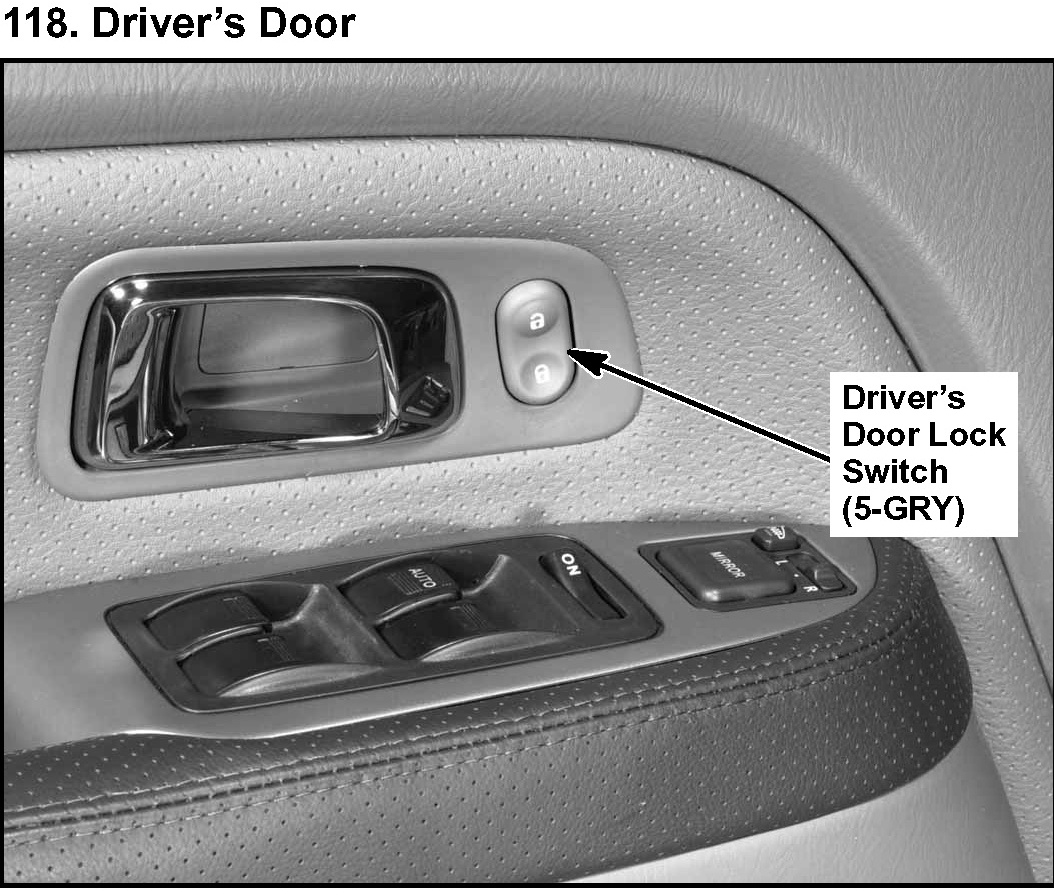

118. Driver's Door:



126. Driver's Door (Front Passenger's Similar):



128. Front Passenger's Door:

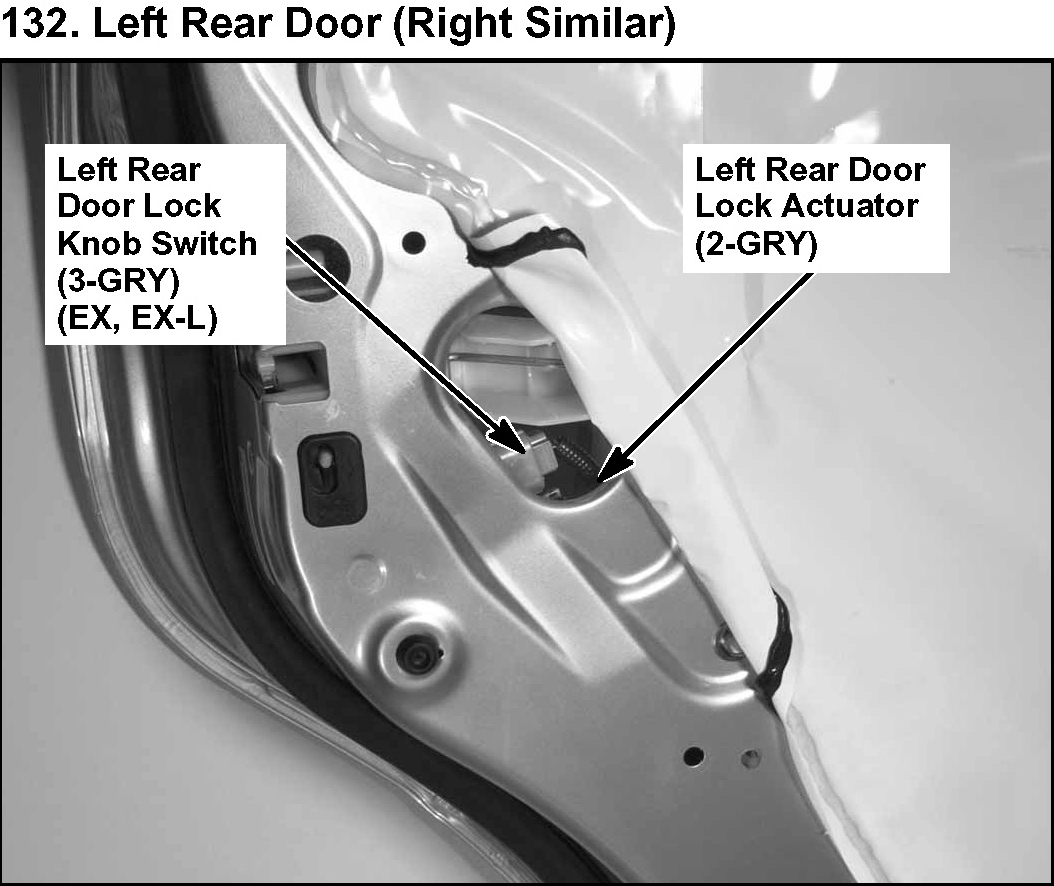

132. Left Rear Door (Right Similar):

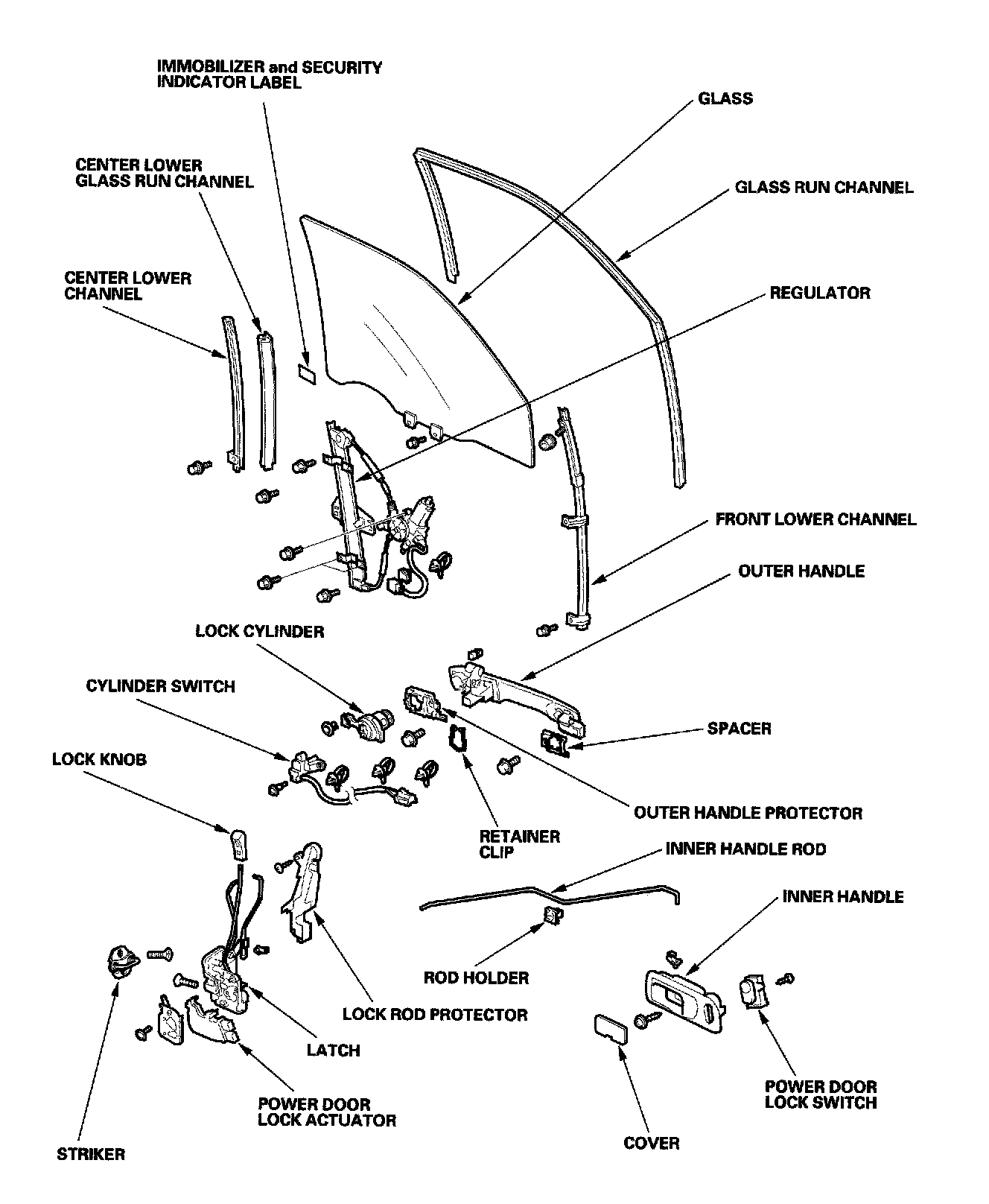

Doors - Component Location Index - Front Door:



Keyless Entry/Security Alarm System - Component Location Index:
