Circuit 11 Illumination (Positive)

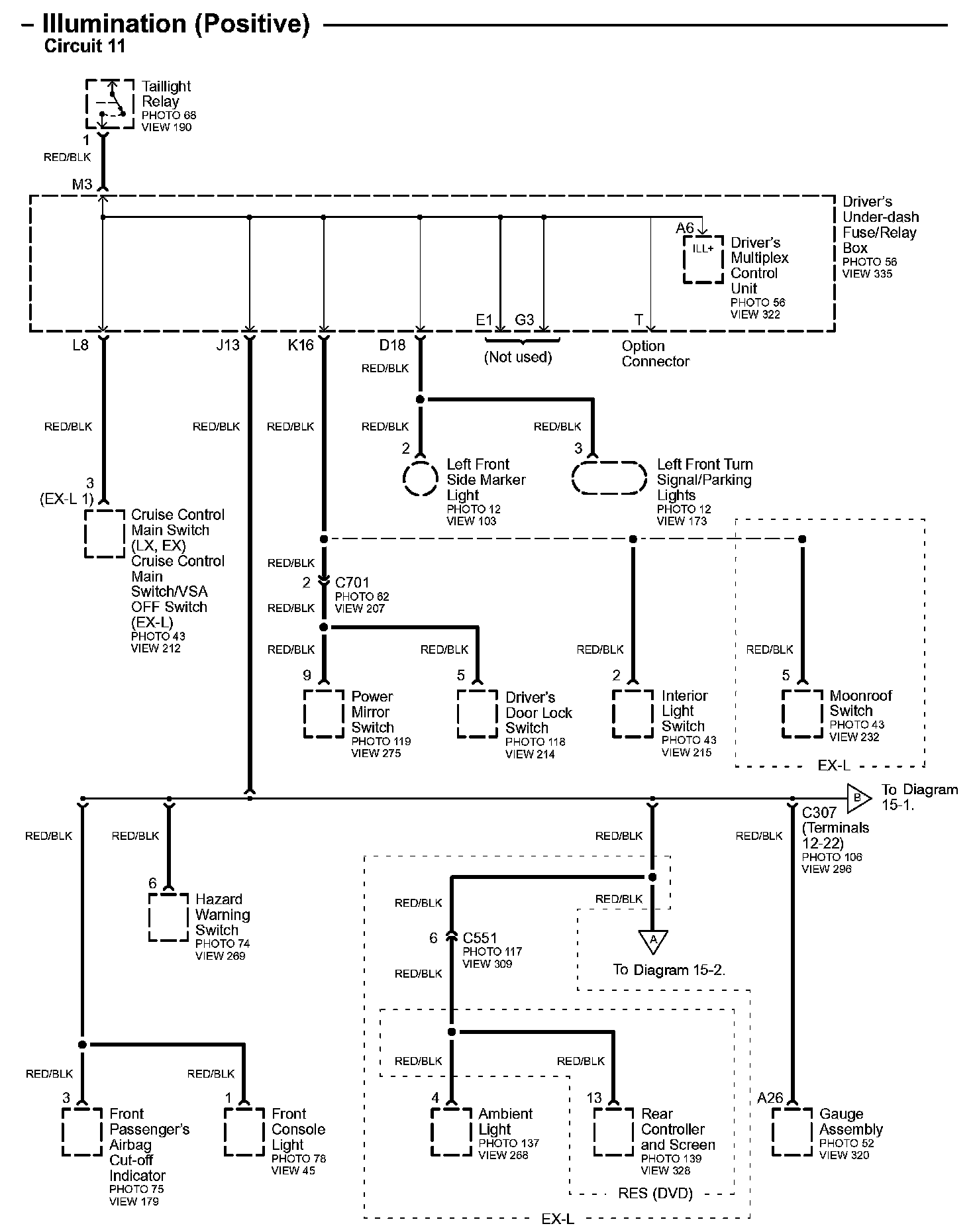

Circuit 11 Illumination (Positive) Part 1:

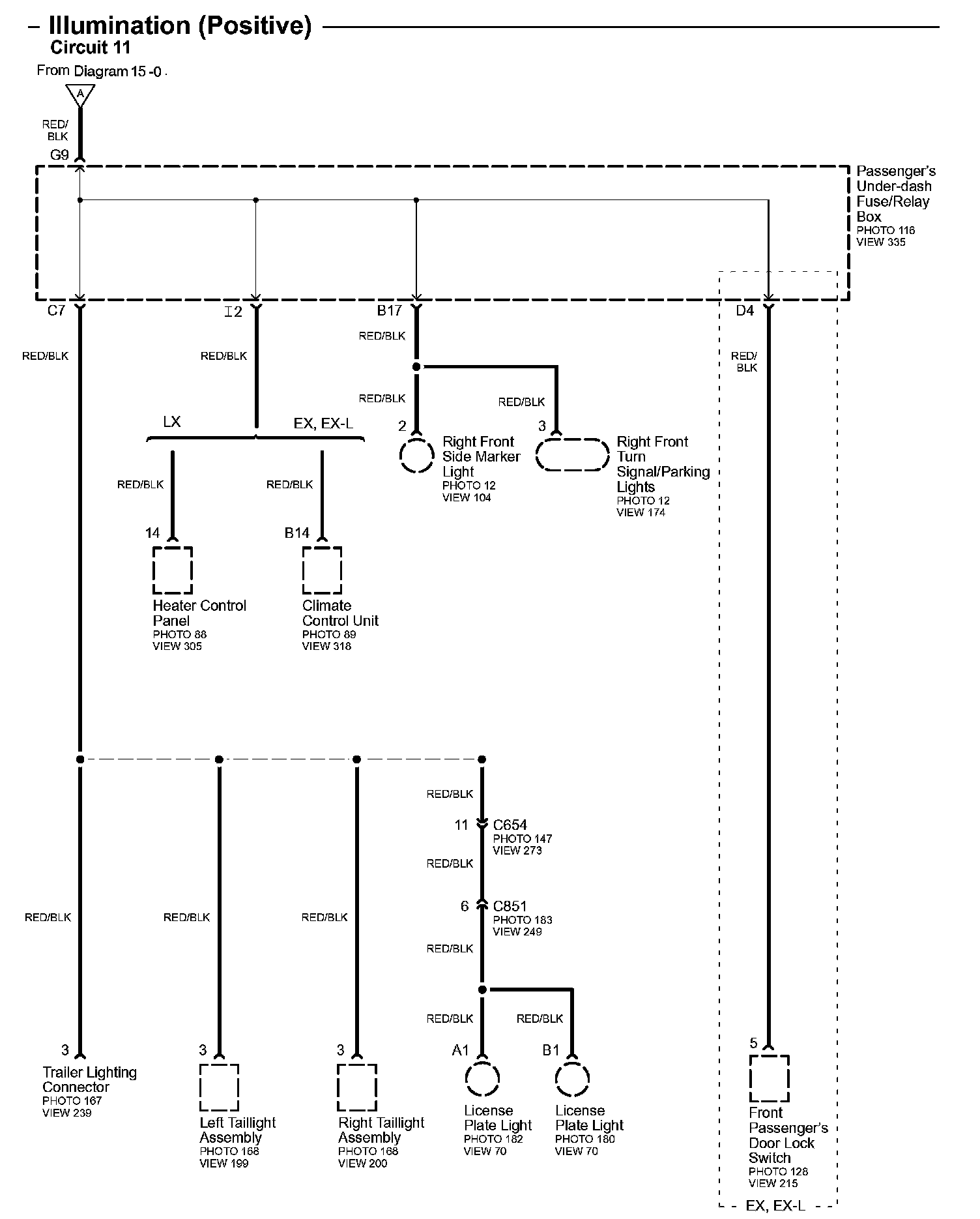

Circuit 11 Illumination (Positive) Part 2:

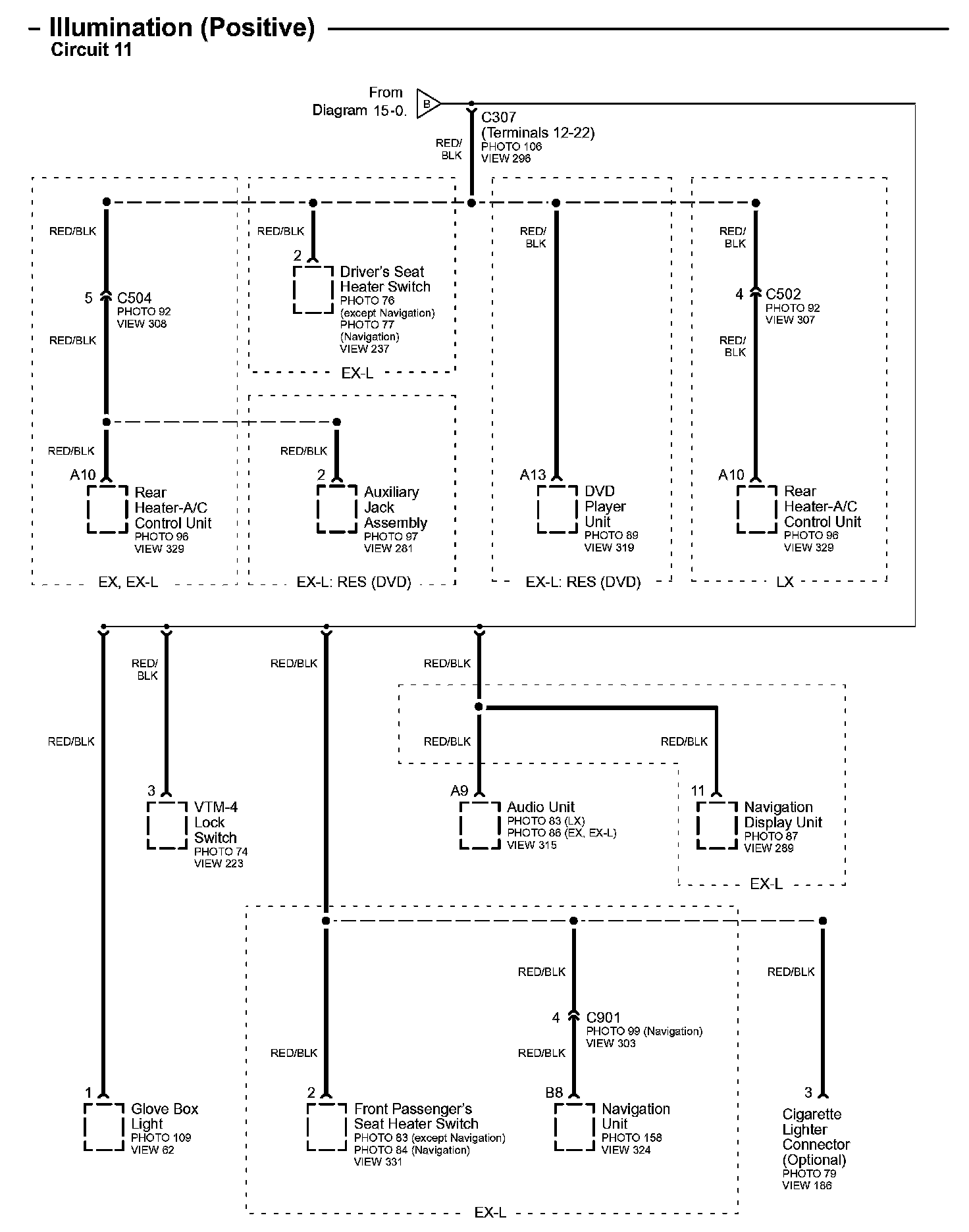

Circuit 11 Illumination (Positive) Part 3:
