Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Diagrams >> Electrical Diagrams >> Circuit Diagrams

Circuit Diagrams

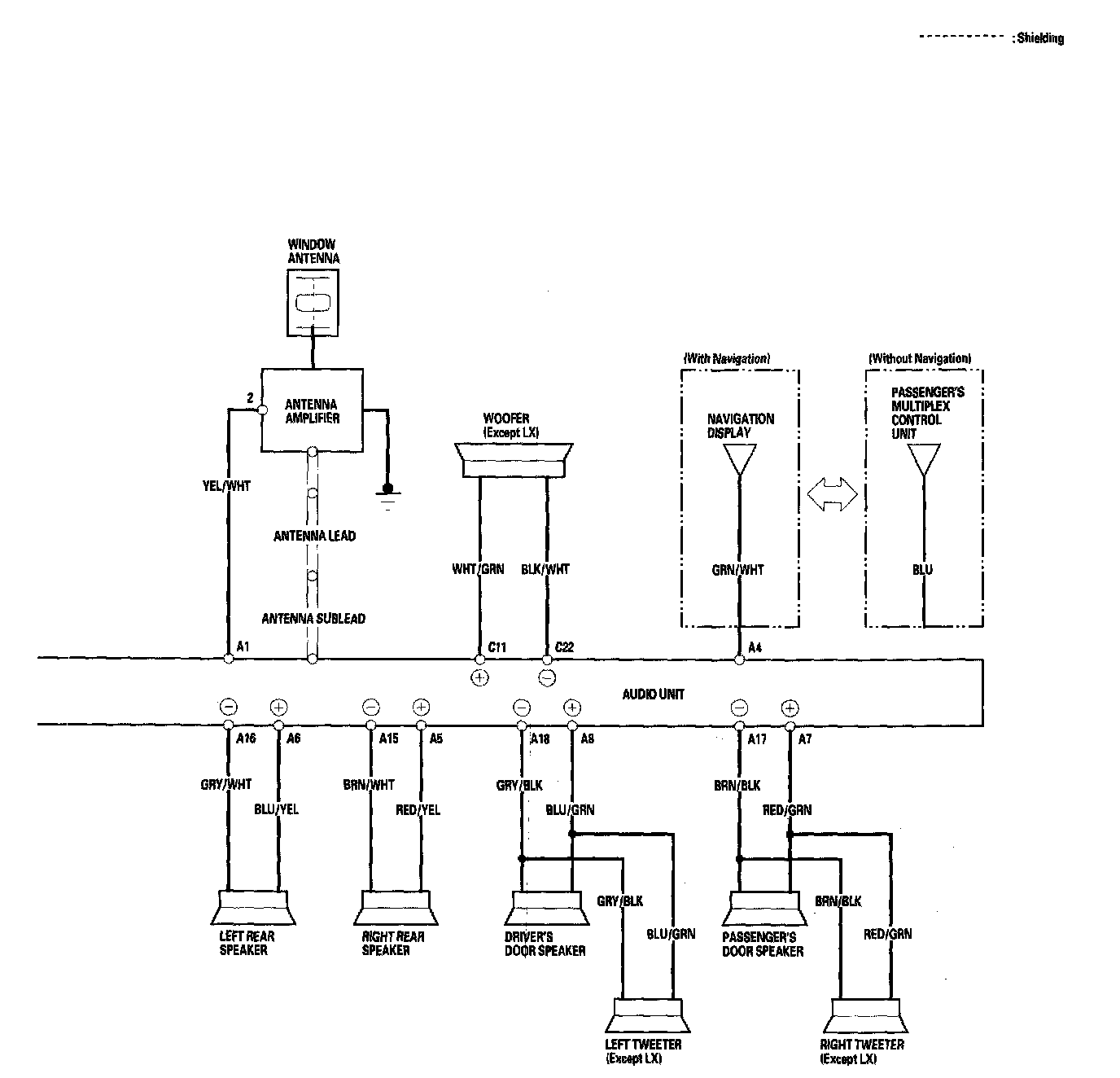

Audio System - Circuit Diagram Part 1:

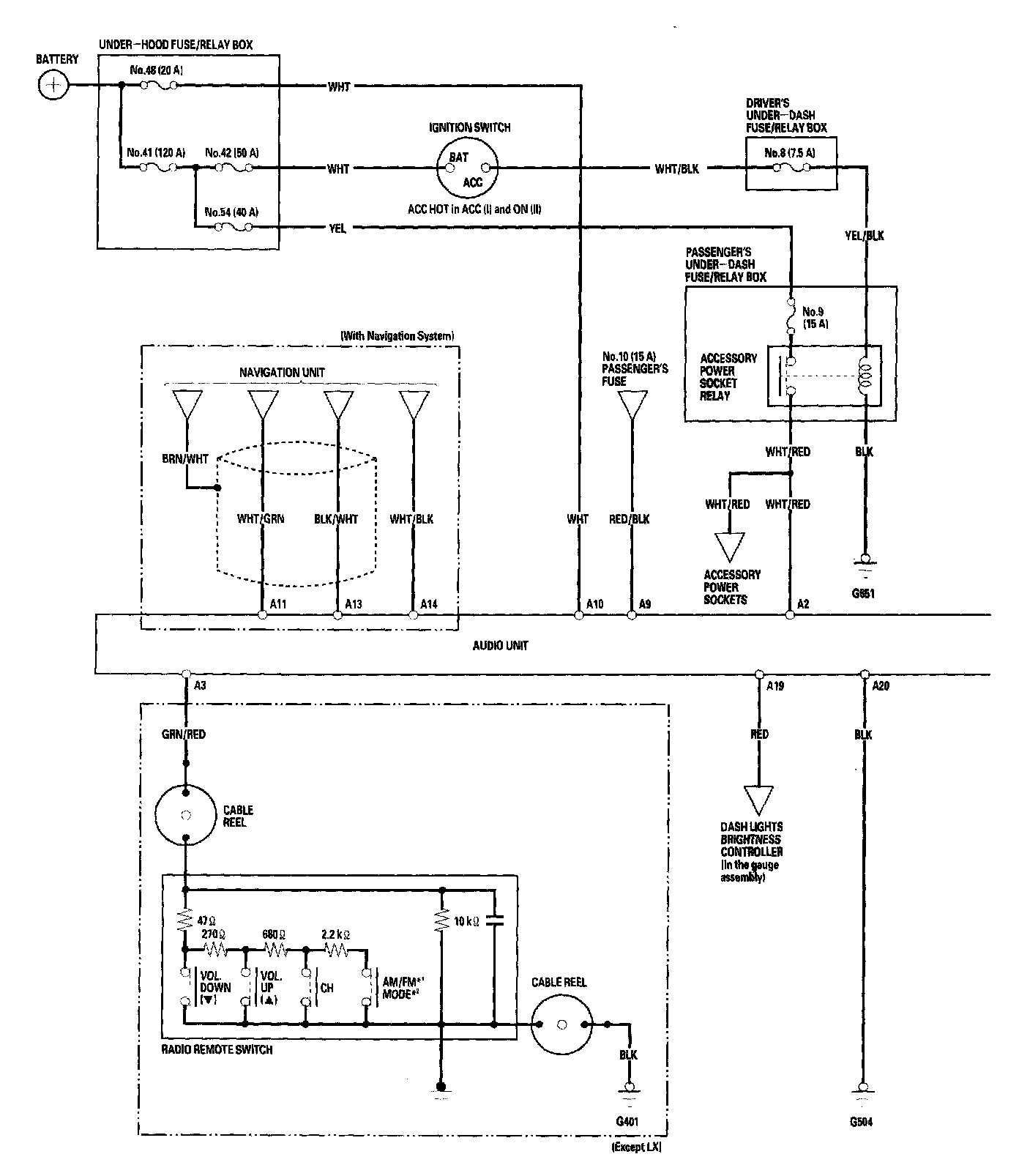

Audio System - Circuit Diagram Part 2:



Audio System - Circuit Diagram Part 3:
