Crankshaft Pulley Removal and Installation: Installation

Remove any oil or clean the pulleys (A), crankshaft (B), bolt (C), and washer (D). Lubricate new engine oil as shown.

Fig 1: Identifying Lubricating Areas
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the crankshaft pulley, and tighten the bolt. Do not use an impact wrench.

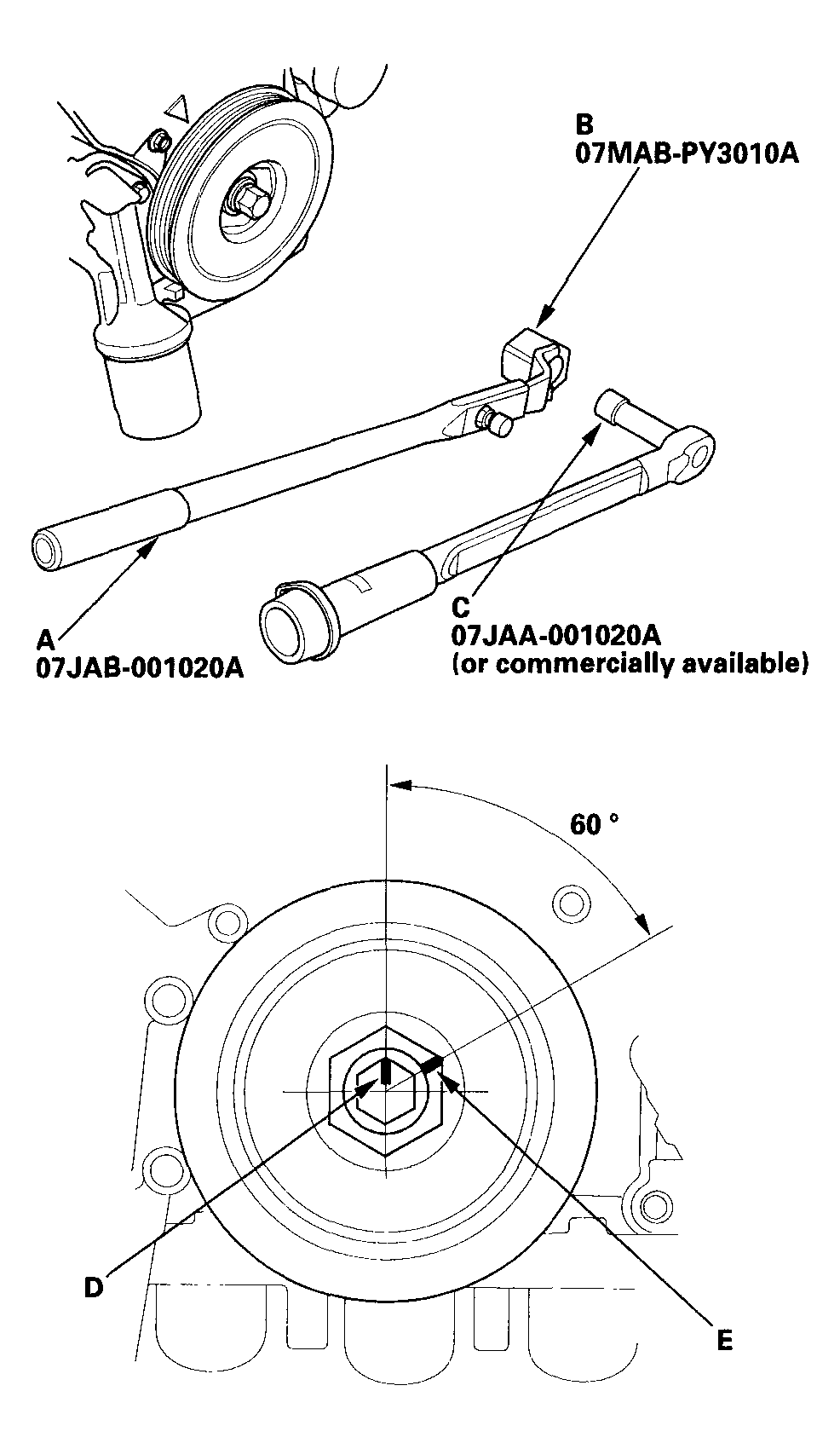

- -1 Hold the pulley with the handle (A) and holder attachment (B), then tighten the bolt to 64 N.m (6.5 kgf.m, 47 lbf.ft) with a torque wrench and heavy duty 19 mm socket (C).
- -2 Mark the bolt head (D) and crankshaft pulley (E) as shown, then tighten the bolt an additional 60° (The mark on the bolt head line up with the mark on the crankshaft pulley).

  Fig 2: Identifying Additional Tightening Angle Of Crankshaft Pulley Bolt
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the drive belt. (see DRIVE BELT INSPECTION ).
Install the splash shield.
Install the right front tire/wheel.
