The Gauge Drive Circuit Check

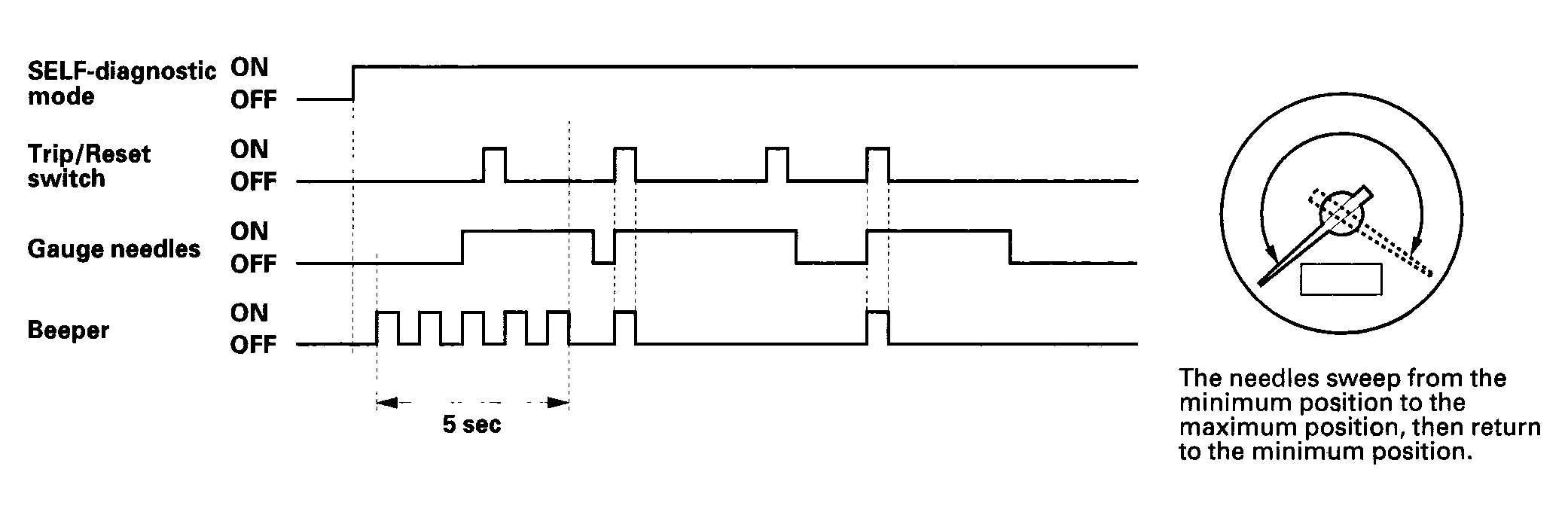

When entering the self-diagnostic mode, the speedometer and the tachometer, the fuel gauge, and the coolant temperature gauge needles sweep from the minimum position to maximum position, then return to the minimum position.
NOTE:
After the beeper stops sounding and the gauge needles return to the minimum position, pushing the trip/reset button starts the beeper drive circuit check (one beep), and the gauge drive circuit check again.
The check cannot be started until the needles return to the minimum position.
If the gauge needles fail to sweep, replace the gauge assembly.
