Circuit Diagram

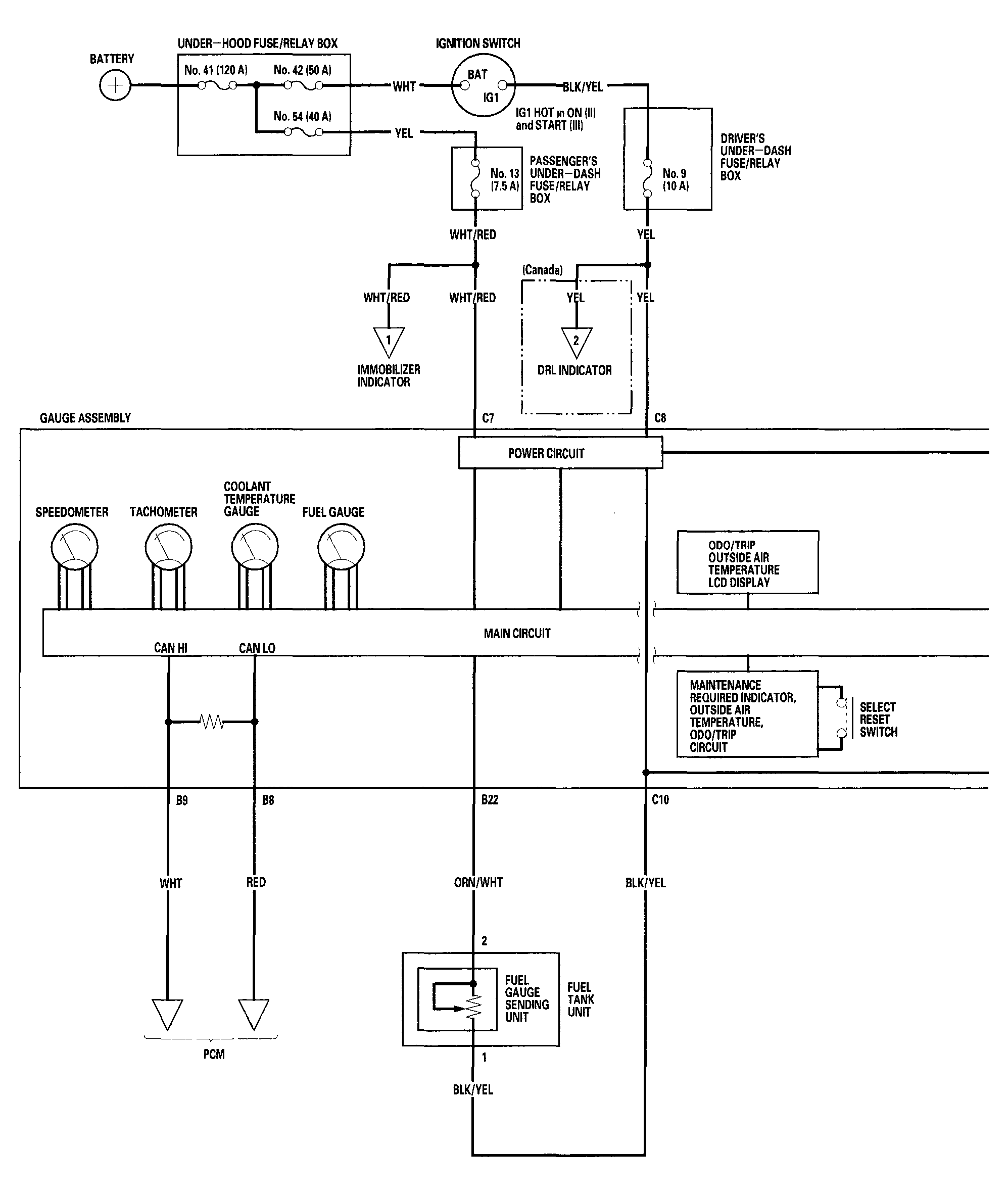

Fig 1: Gauges Circuit Diagram (1 Of 6)

G04548208

Courtesy of AMERICAN HONDA MOTOR CO., INC.

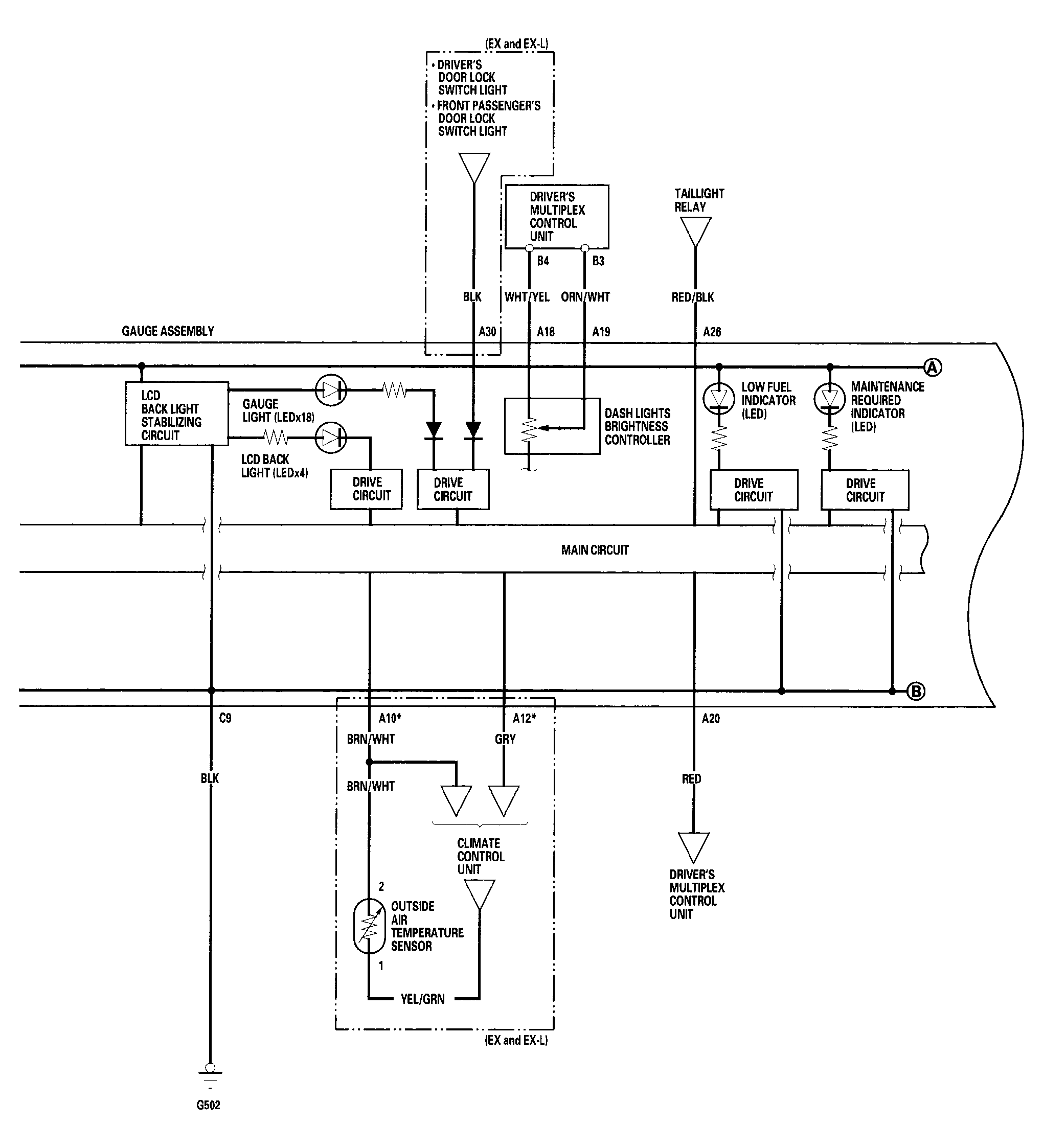

Fig 2: Gauges Circuit Diagram (2 Of 6)

G04548209

Courtesy of AMERICAN HONDA MOTOR CO., INC.

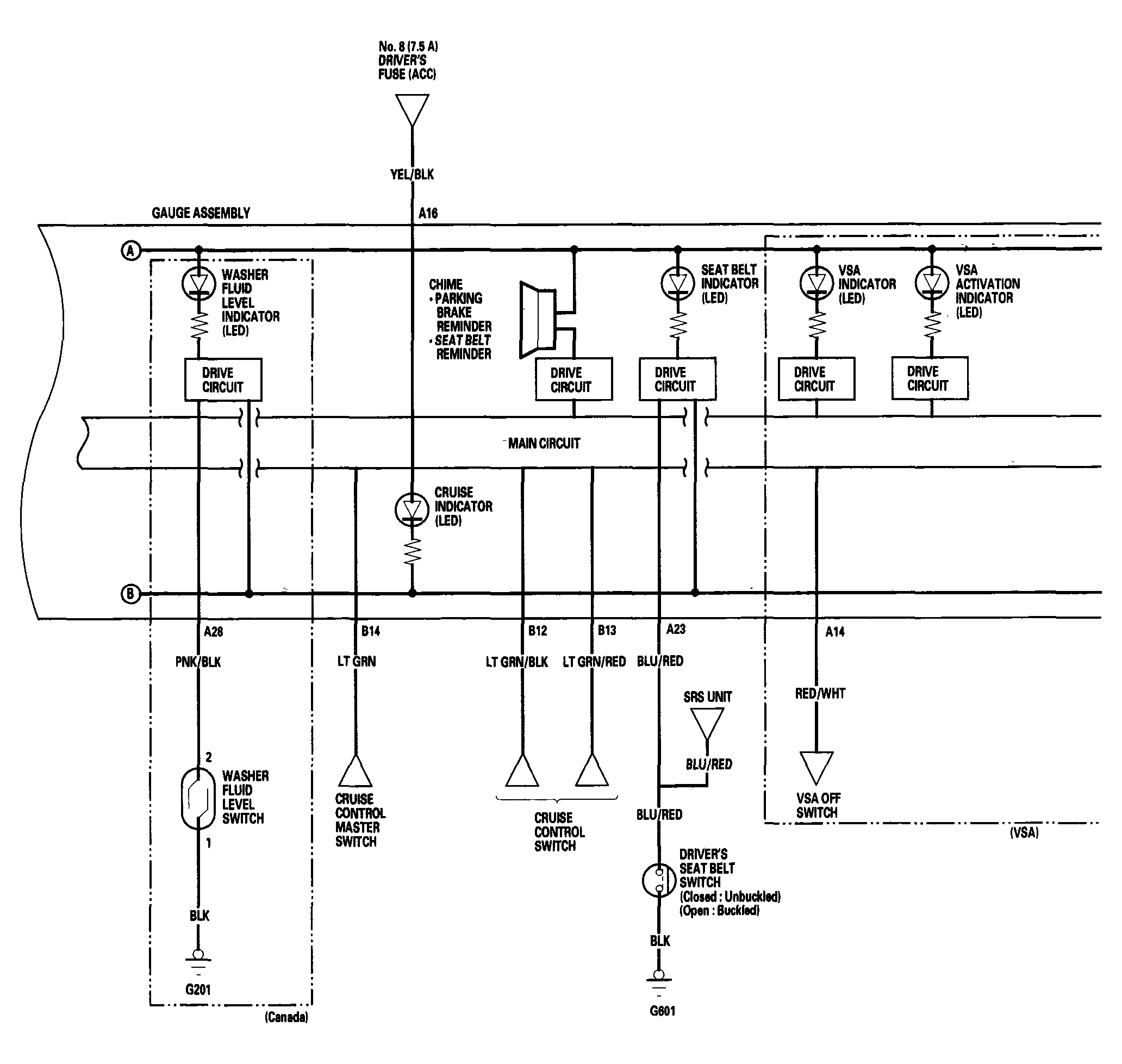

Fig 3: Gauges Circuit Diagram (3 Of 6)

G04548210

Courtesy of AMERICAN HONDA MOTOR CO., INC.

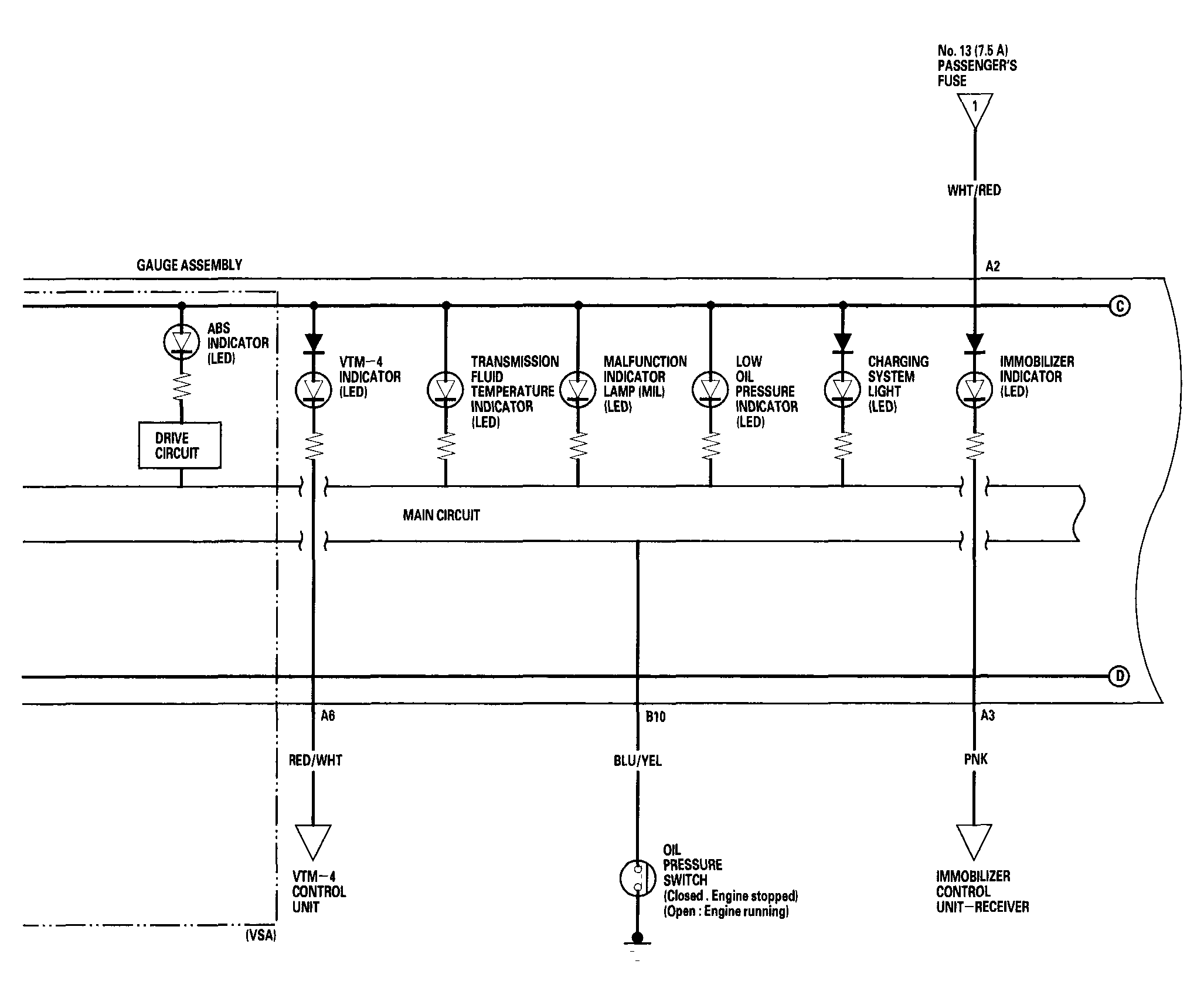

Fig 4: Gauges Circuit Diagram (4 Of 6)

G04548211

Courtesy of AMERICAN HONDA MOTOR CO., INC.

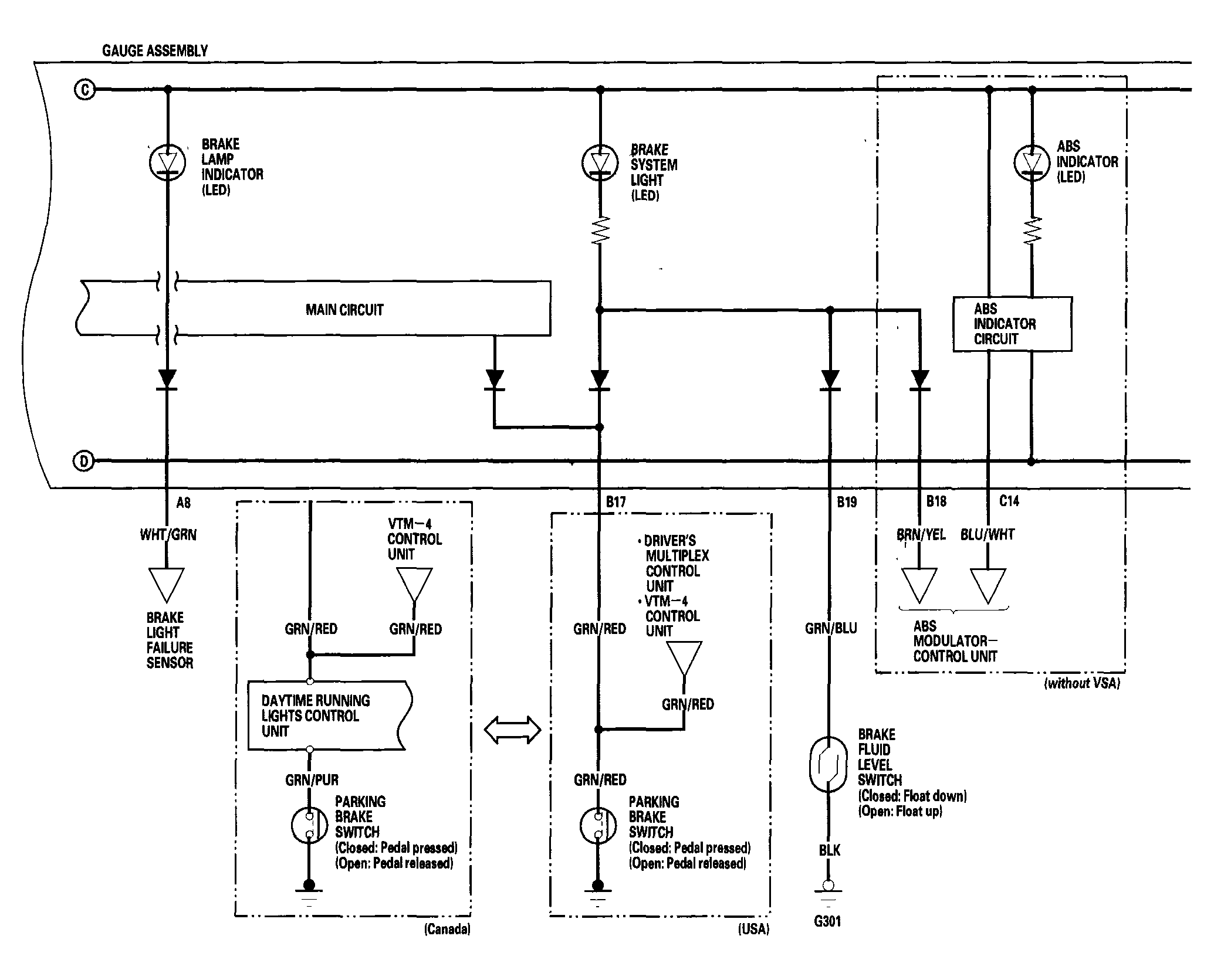

Fig 5: Gauges Circuit Diagram (5 Of 6)

G04548212

Courtesy of AMERICAN HONDA MOTOR CO., INC.

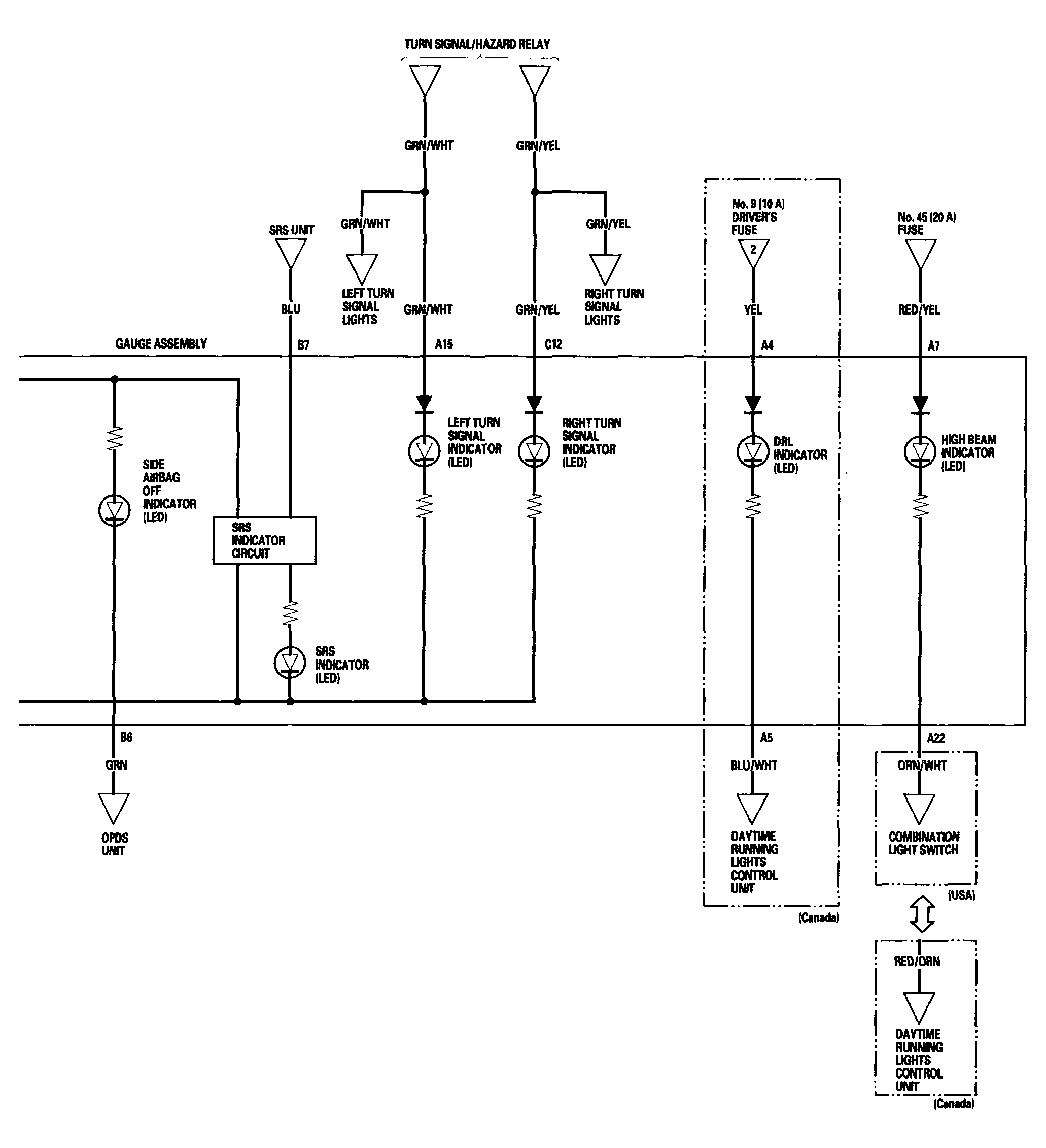

Fig 6: Gauges Circuit Diagram (6 Of 6)

G04548213

Courtesy of AMERICAN HONDA MOTOR CO., INC.
