Beverage Holder Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

Remove the dashboard center lower cover (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ).

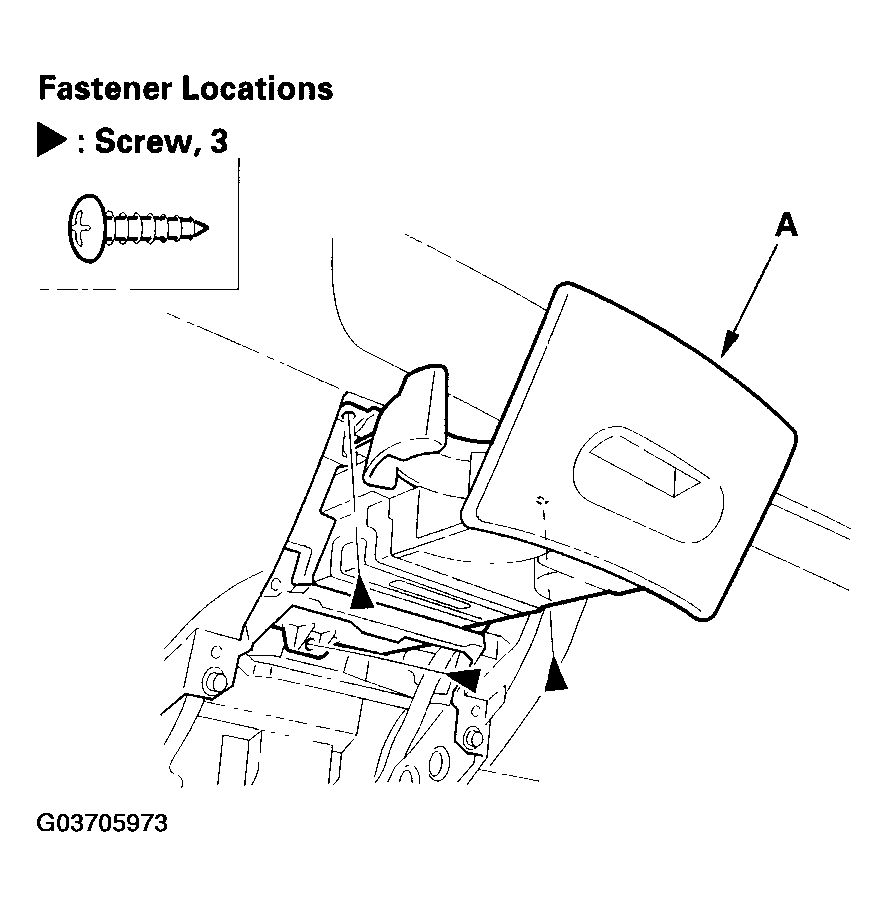

Open the beverage holder (A), and remove the screws.

Fig 1: Removing Beverage Holder Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

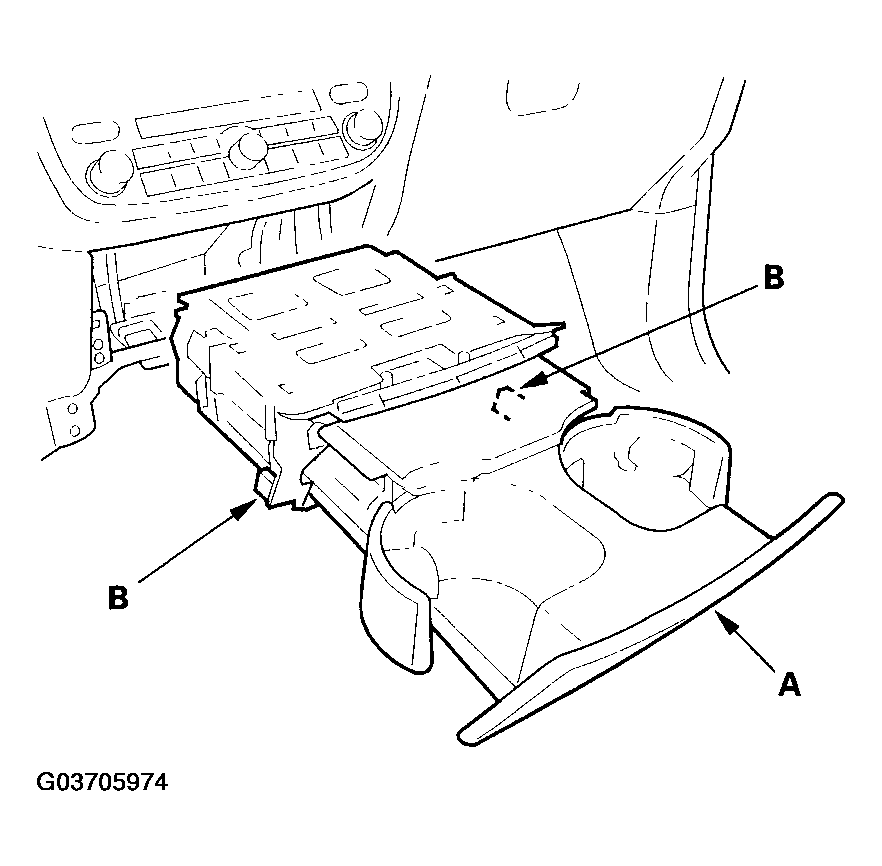

Pull out the beverage holder (A) to detach the bosses (B), then remove the holder.

Fig 2: Removing Beverage Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the holder in the reverse order of removal.
