Circuit Diagram

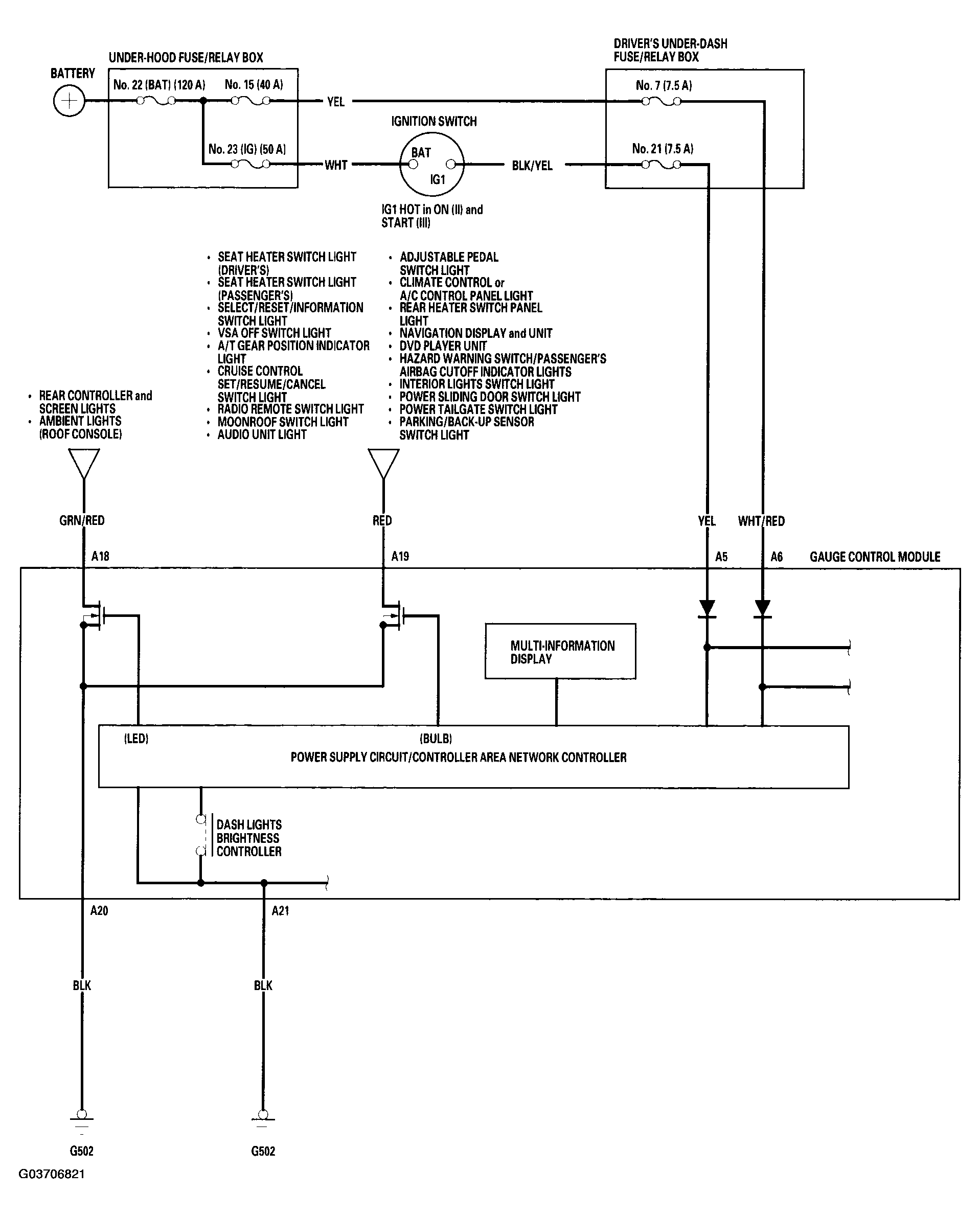

Fig 1: Dash Lights Brightness Controller Circuit Diagram

G03706821

Courtesy of AMERICAN HONDA MOTOR CO., INC.
