Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Take care not to scratch the dashboard and related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Tilt the steering column down.
Remove the instrument panel (A).
1. -1 Gently pull out along the bottom to release the clips (B) and hooks (C).
2. -2 Gently pull out the upper portion of the panel to release the clips (D).

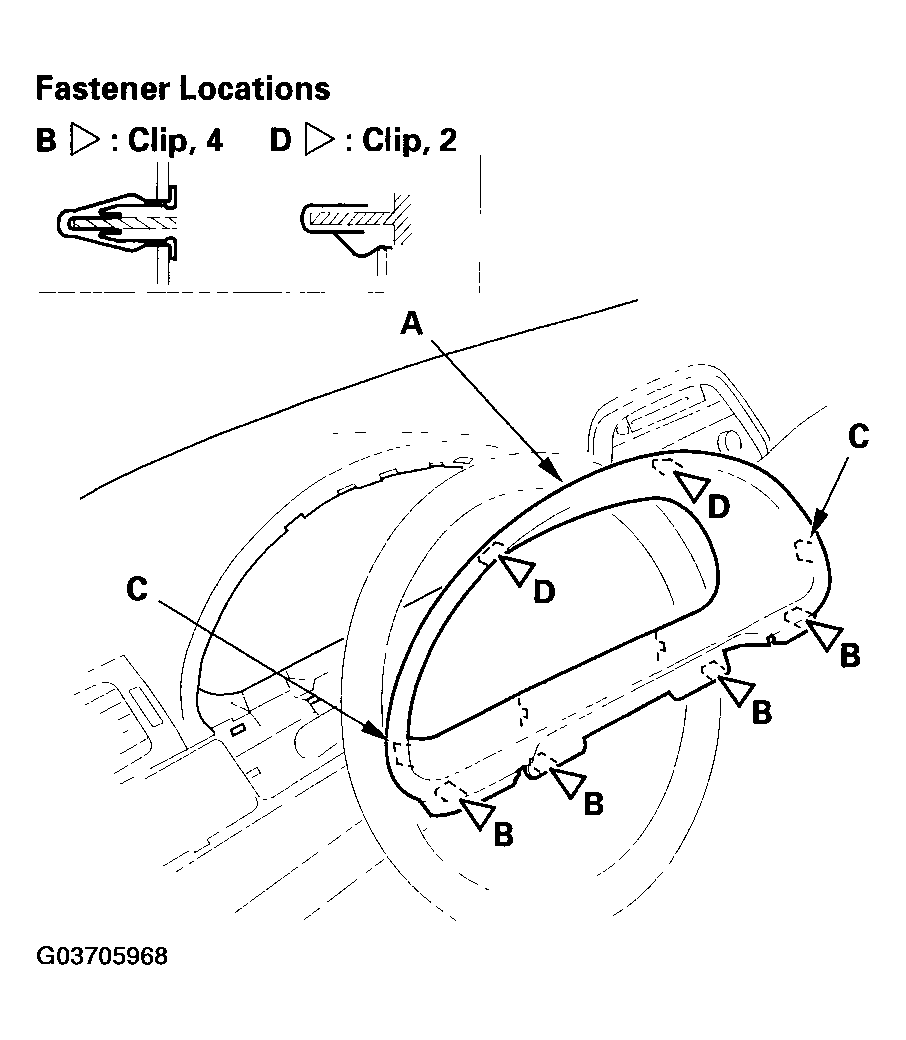

Fig 1: Removing Instrument Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
