Driver's Lower Dashboard Switch Panel Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.
  1. Remove the dashboard (see DASHBOARD/STEERING HANGER BEAM REMOVAL/INSTALLATION  ).
  2. Remove the screws and the driver's lower dashboard switch panel (A).

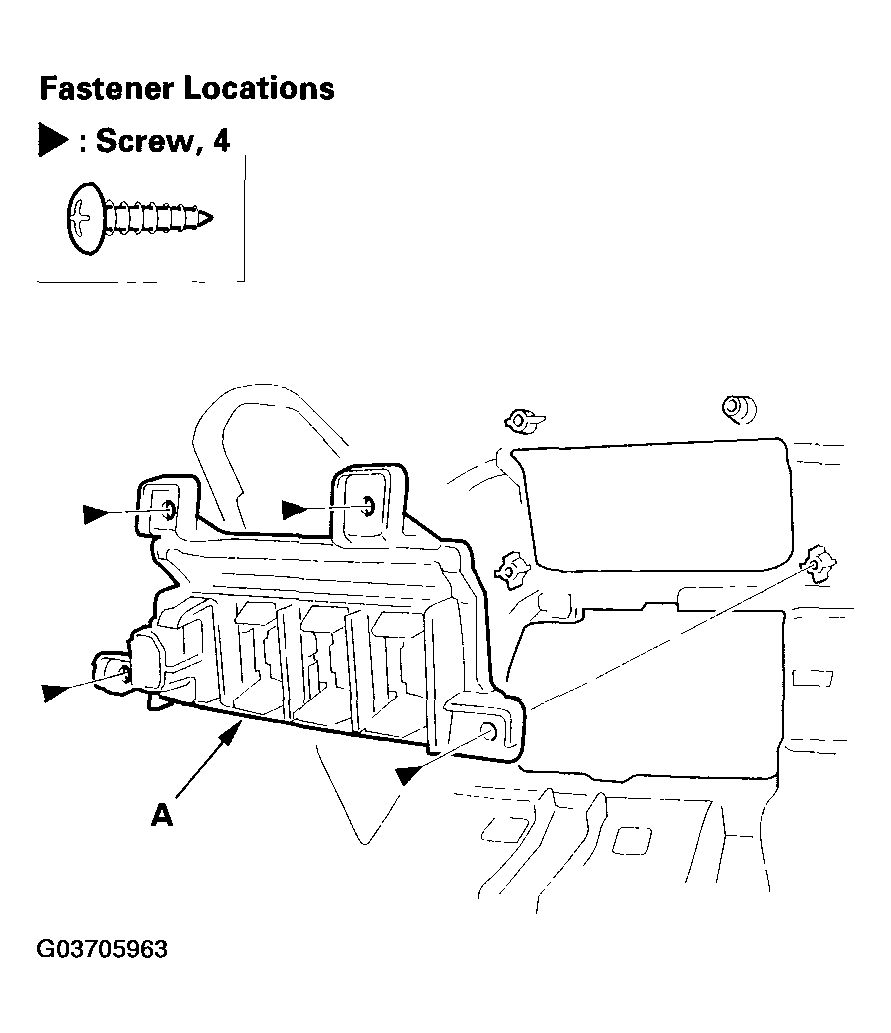

    Fig 1: Removing Driver's Lower Dashboard Switch Panel
    G03705963Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the panel in the reverse order of removal.
