Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Take care not to scratch the dashboard and related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Remove the driver's dashboard lower cover (A).
1. -1 Remove the screw (B) from the driver's dashboard lower cover.
2. -2 Pull out the bottom of the driver's dashboard lower cover to release the clips (C) and hooks (D).
3. -3 If equipped, disconnect the in-car temperature sensor connector (E) and the air hose (F).

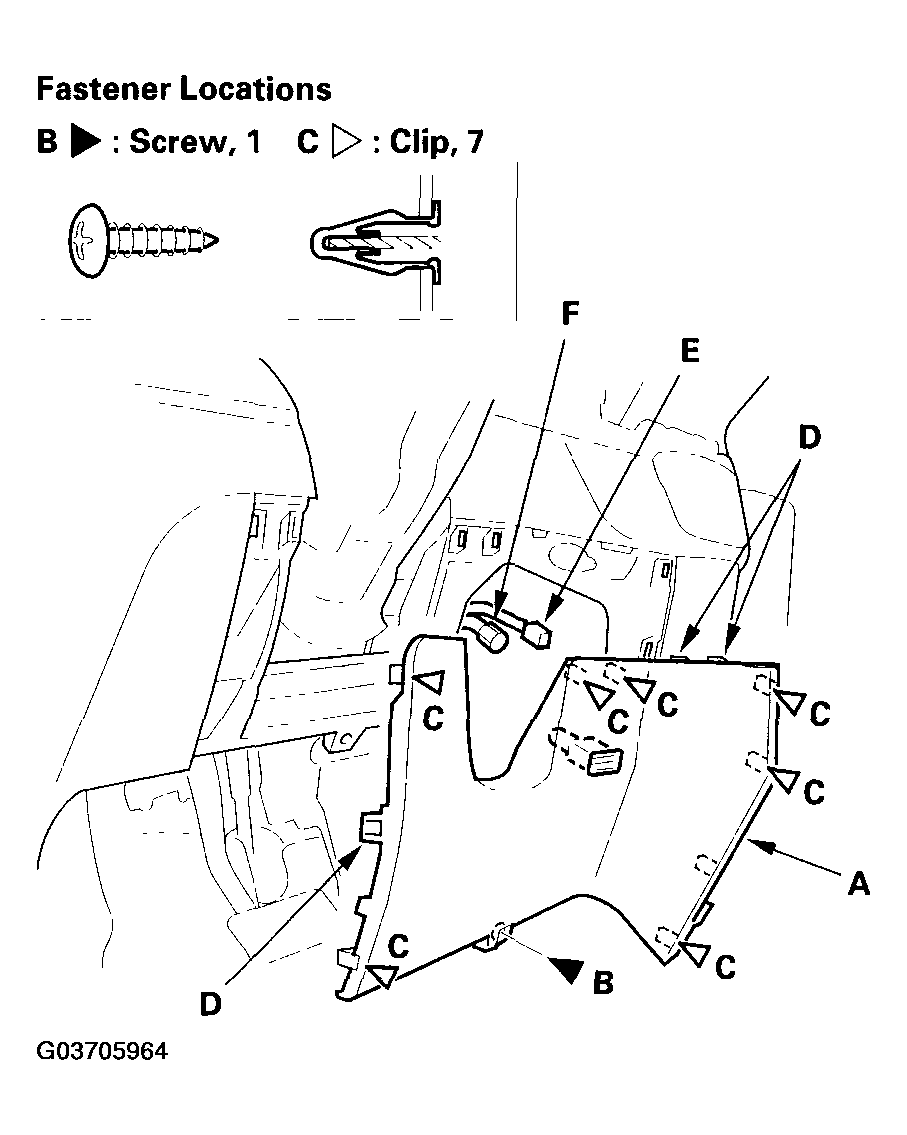

Fig 1: Removing Driver's Dashboard Lower Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- Make sure that each connector is plugged in properly, and the air hose is connected properly.
- Replace any damaged clips.
- Push the clips into place securely.
