Special Tools Required

KTC trim tool set SOJATP2014

NOTE: Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Carefully insert a trim tool next to the hooks (A), and release the hooks by prying on the side vent (B). Take care not to scratch the dashboard and related part.

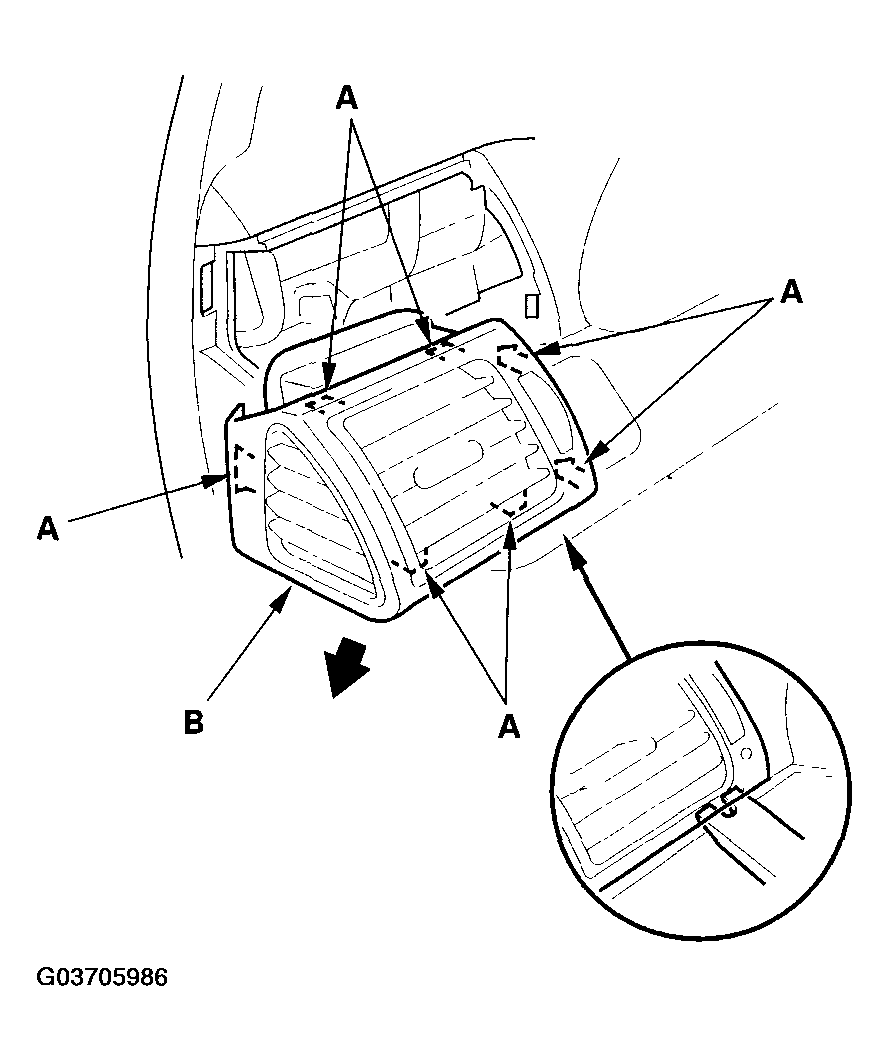

Fig 1: Releasing Hooks By Prying On Side Vent
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Position the side vent on the dashboard, then push the hooks into place securely.
