Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Put on gloves to protect your hands.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Remove the dashboard center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).
Remove the bolts (A), and pull out the center pocket (B) to release the clips (C, D).

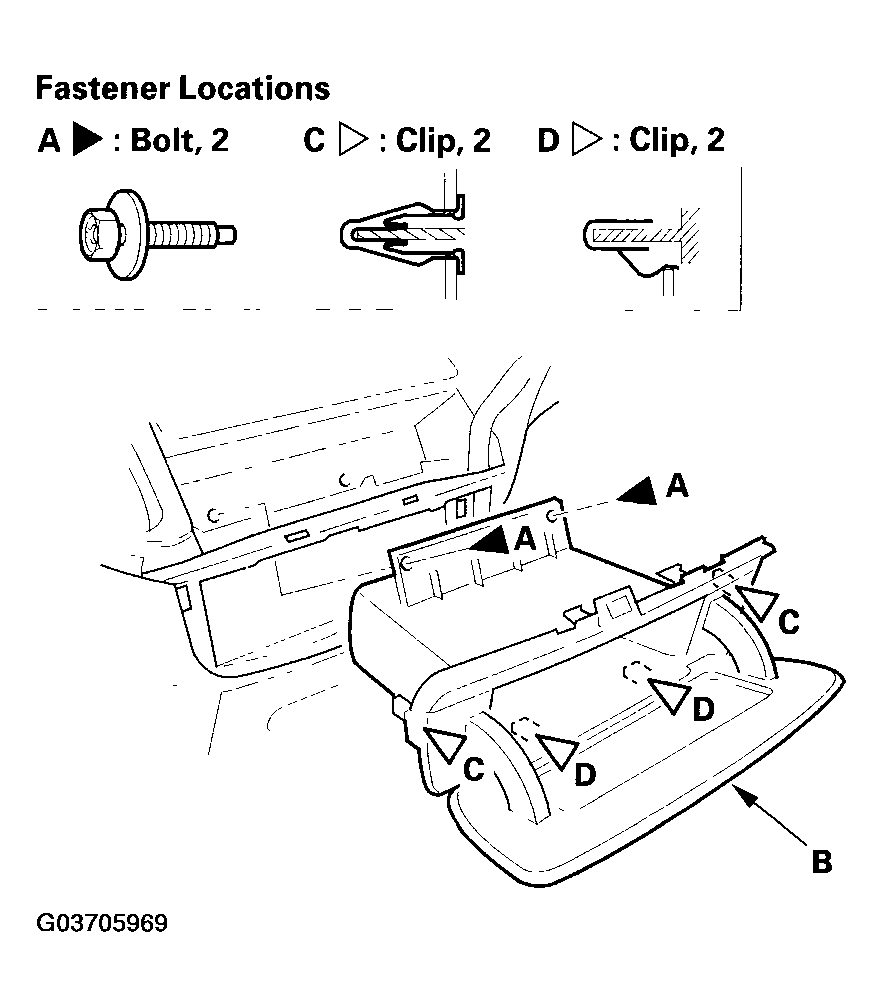

Fig 1: Pulling Out Center Pocket To Release Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the center pocket in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
