Home >> Honda >> 2005 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Braking Sensor/Switch >> Locations

Braking Sensor/Switch: Locations

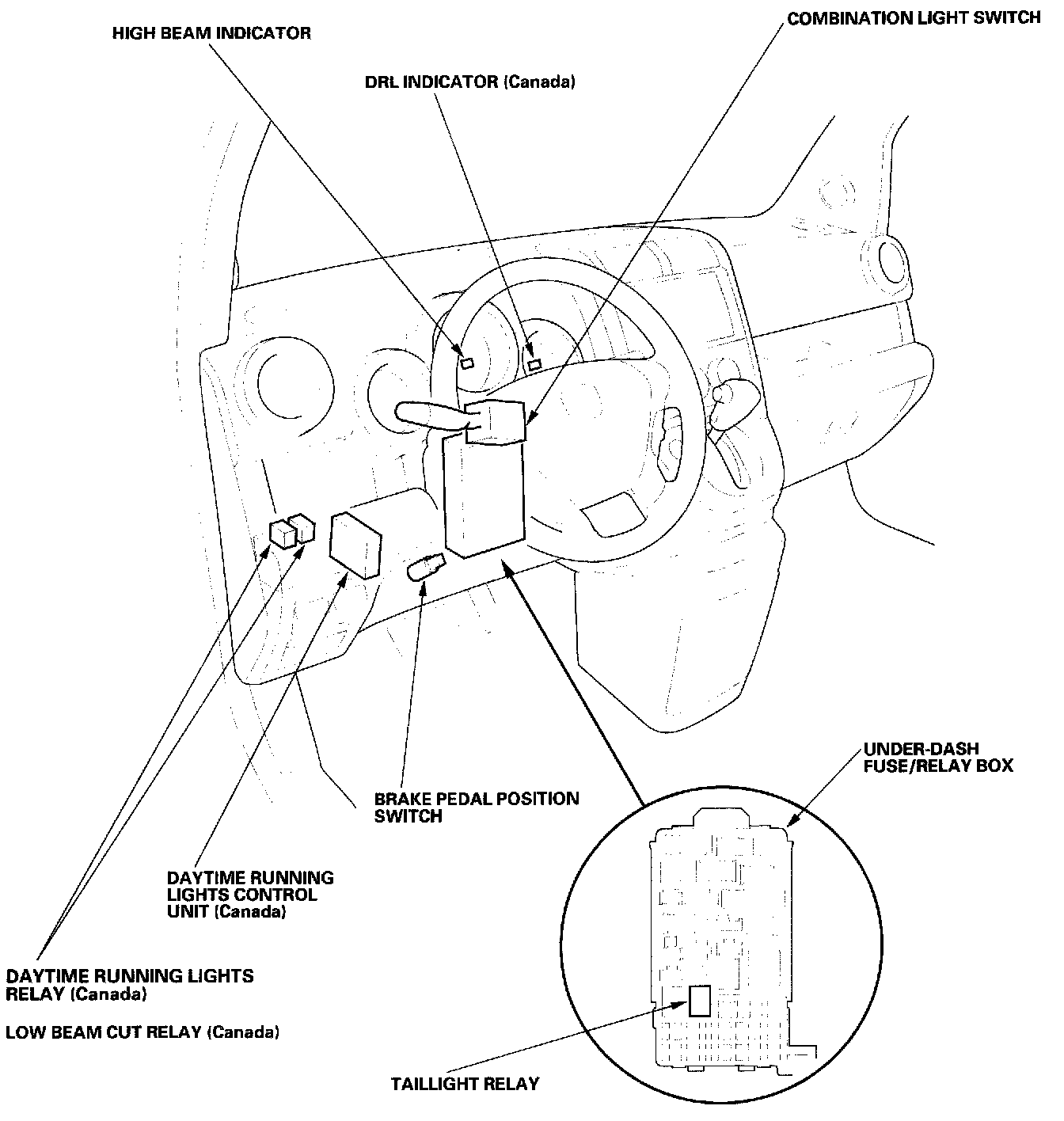

Exterior Lights - Component Location Index:



Turn Signal/Hazard Flasher - Component Location Index:

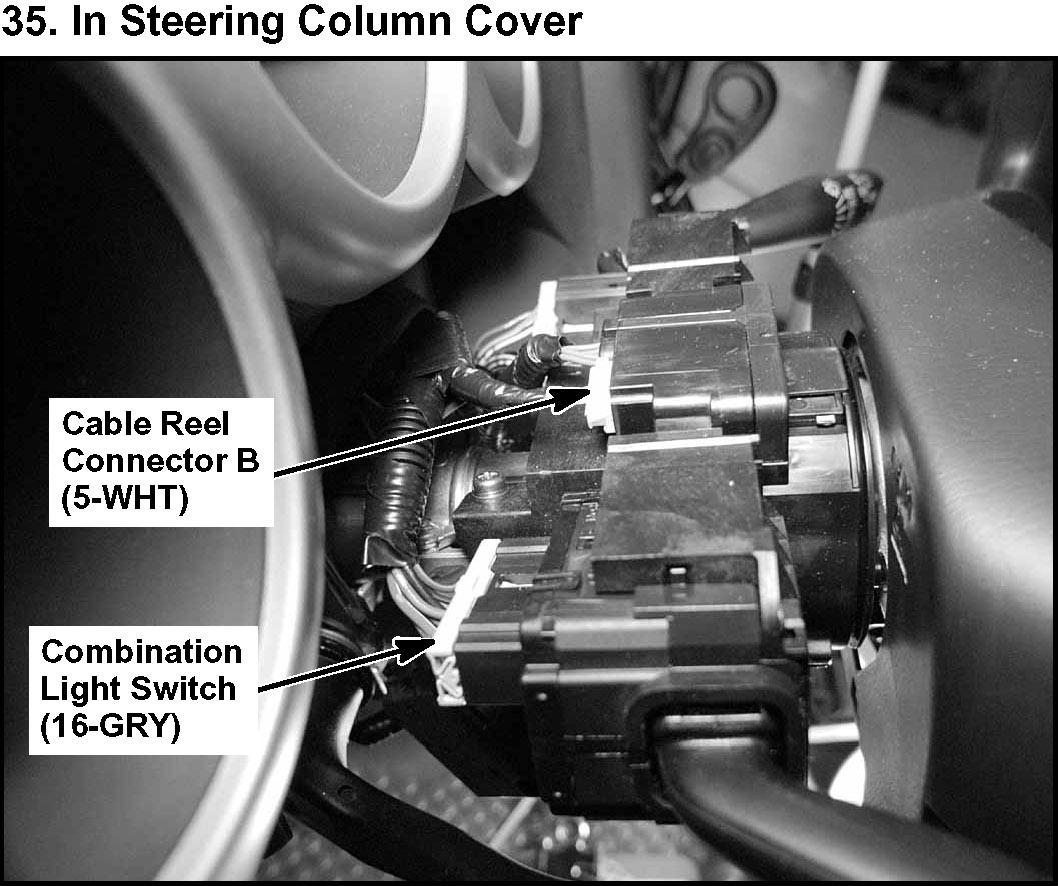

35. In Steering Column Cover:
