Component Locations

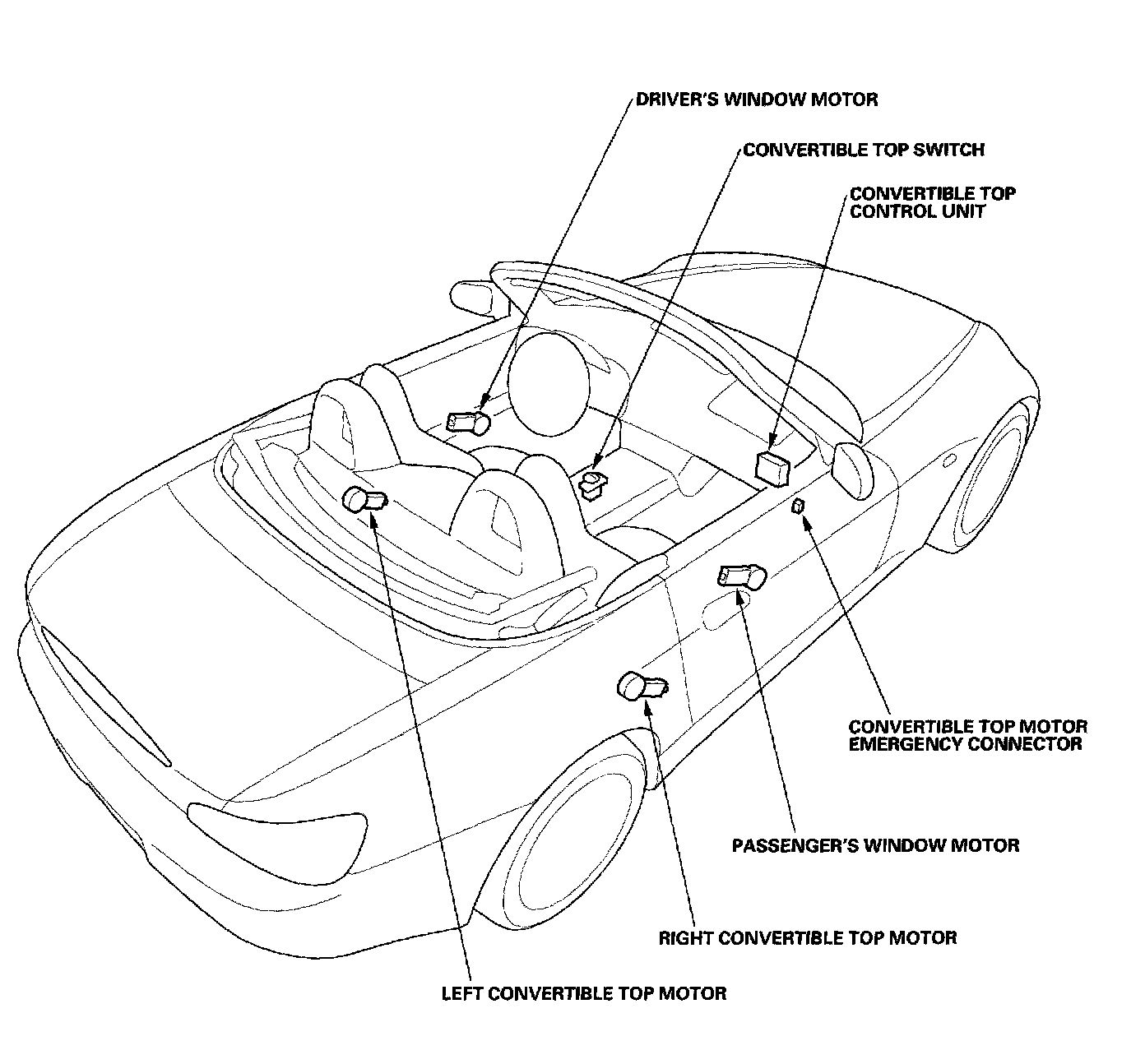

Convertible Top - Component Location Index:

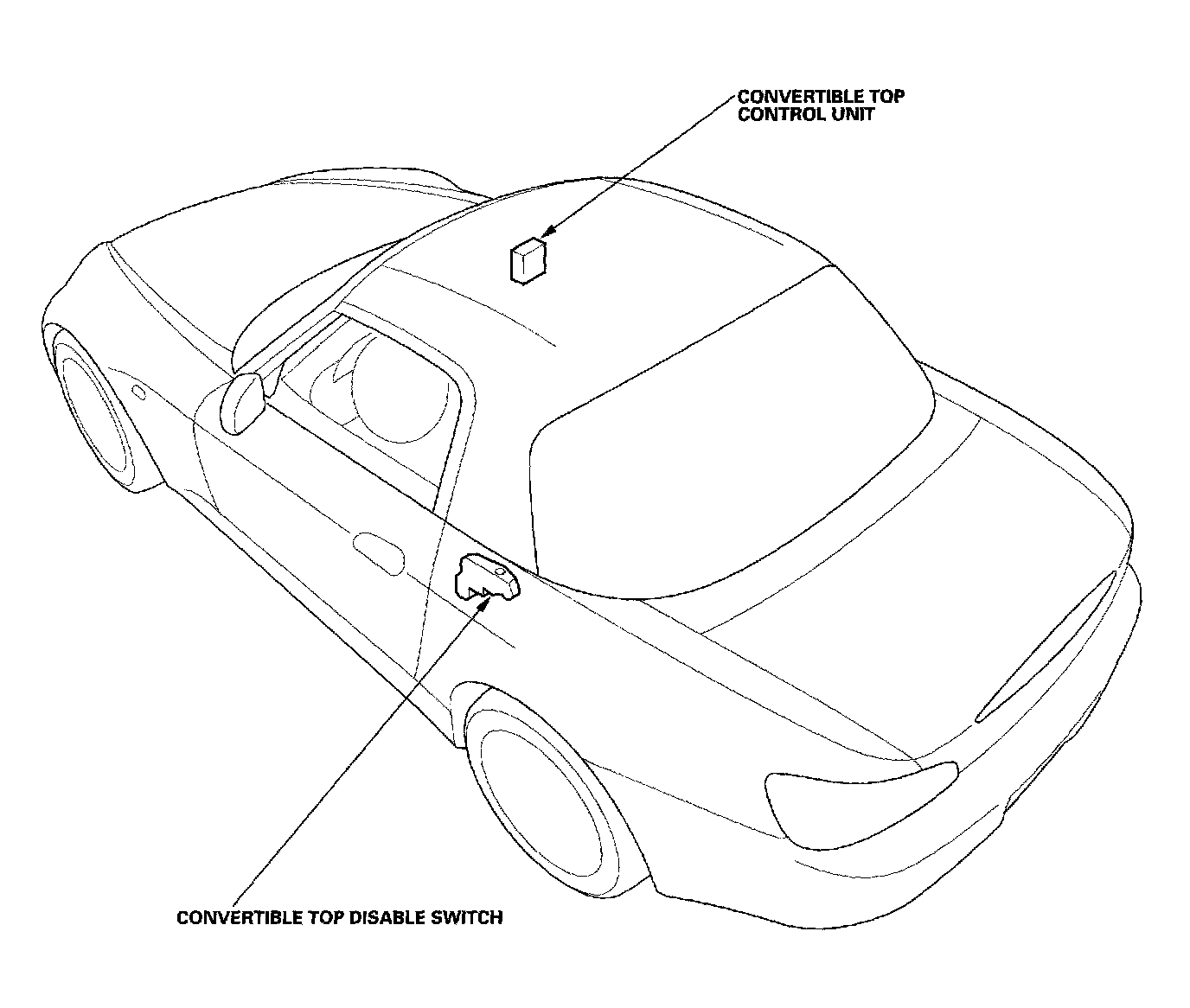

Removable Hardtop - Component Location Index:

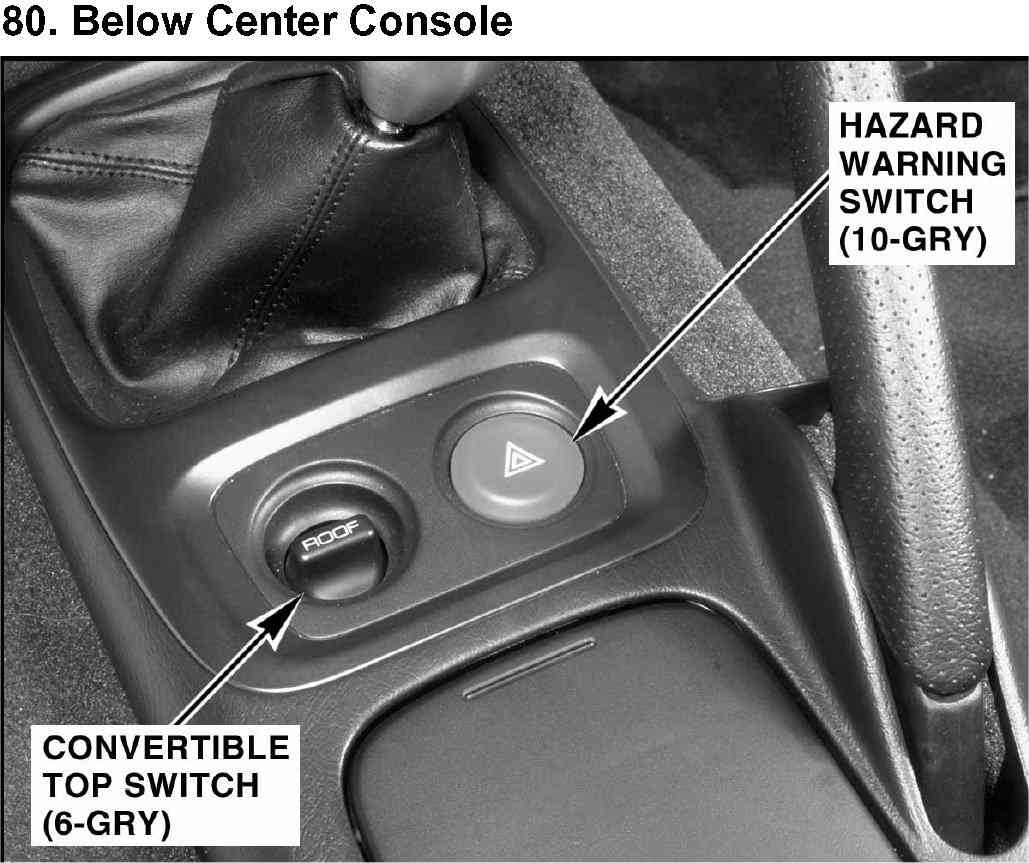

80. Below Center Console:
