Connector ID By Location on harness
>>
Rear Wire Harness (right branch)
Rear Wire Harness (right branch)

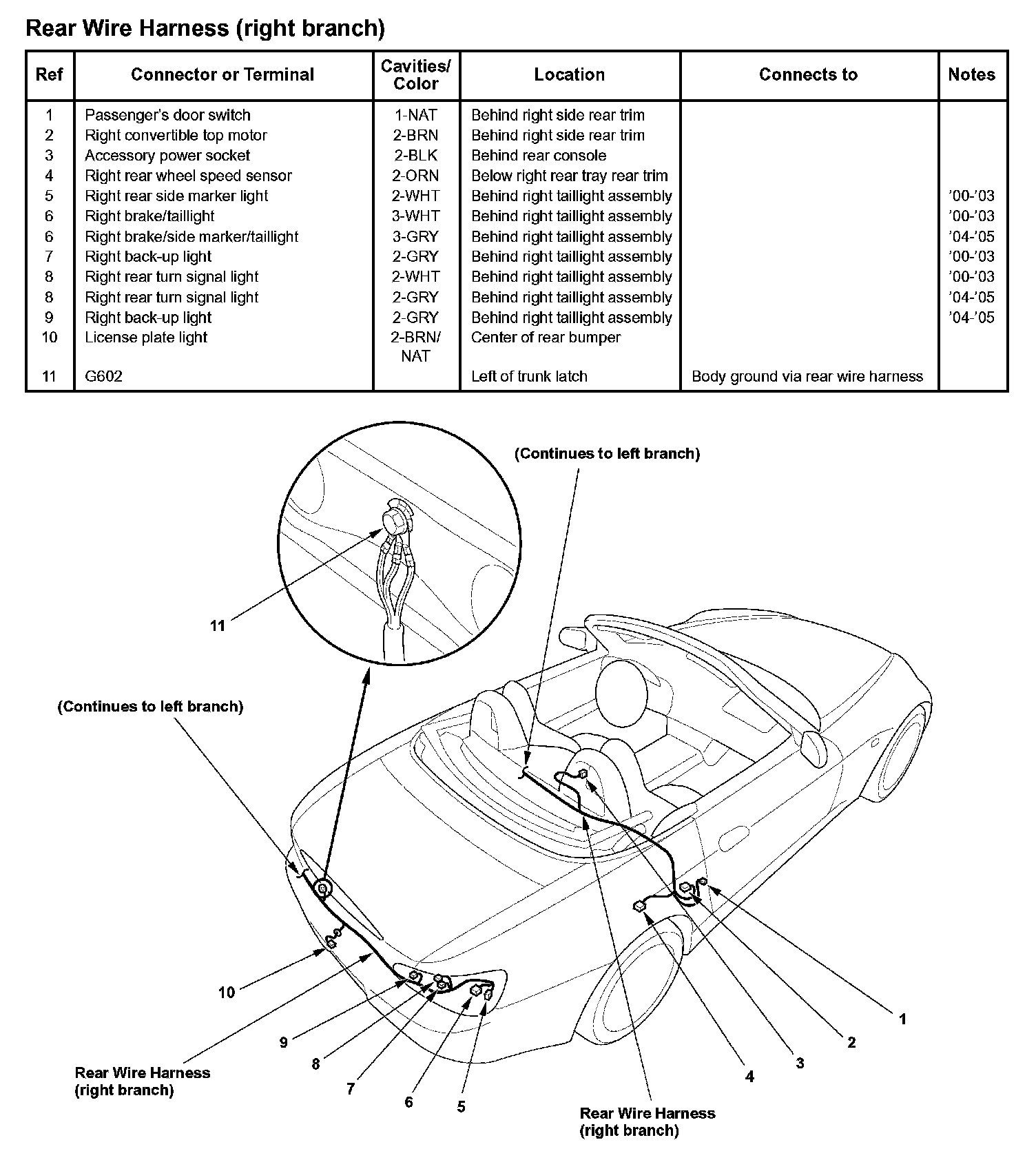

Rear Wire Harness (Right Branch):

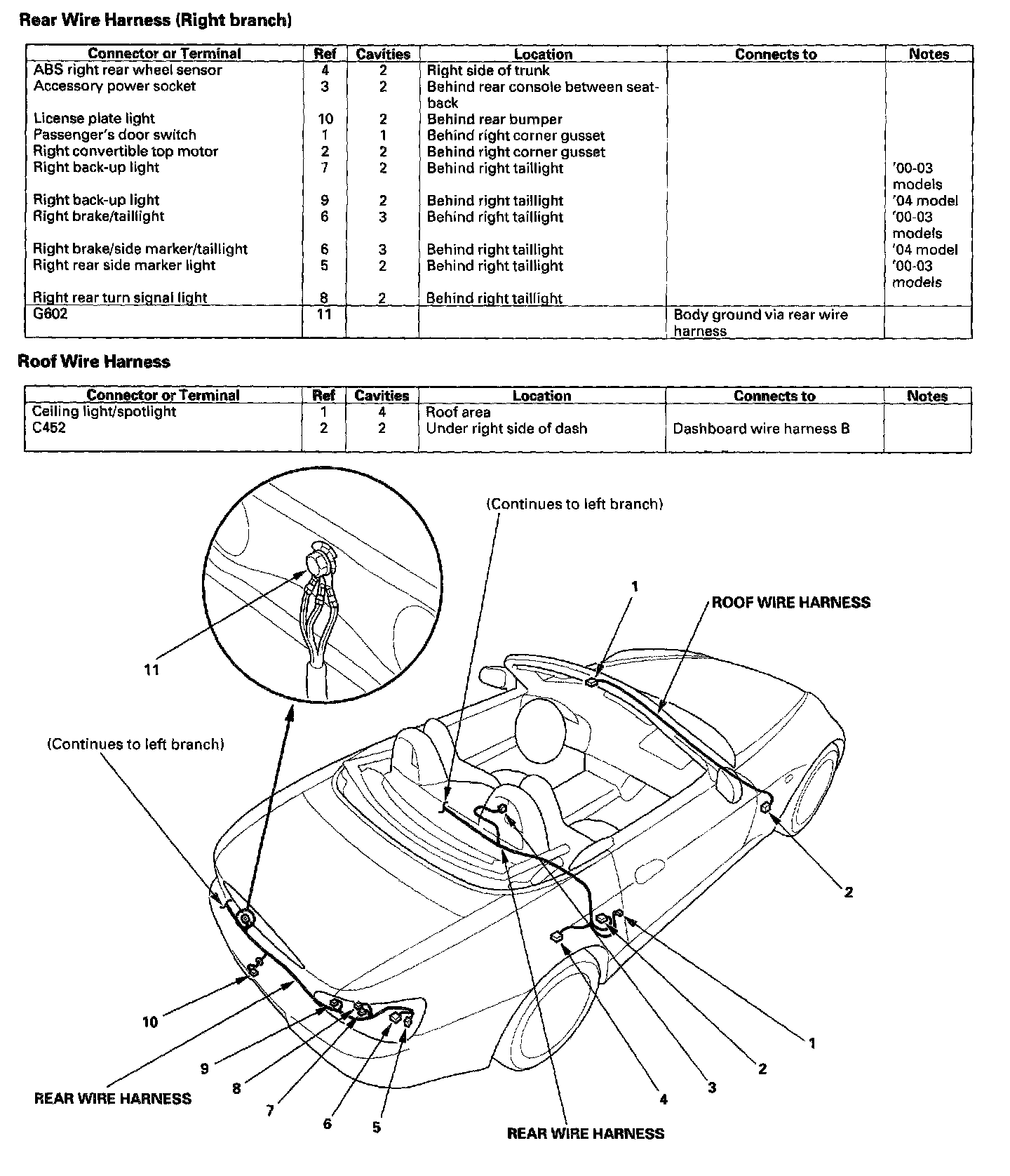

Rear Wire Harness (Right Branch)/Roof Wire Harness:
