Dashboard Wire Harness B (right branch)

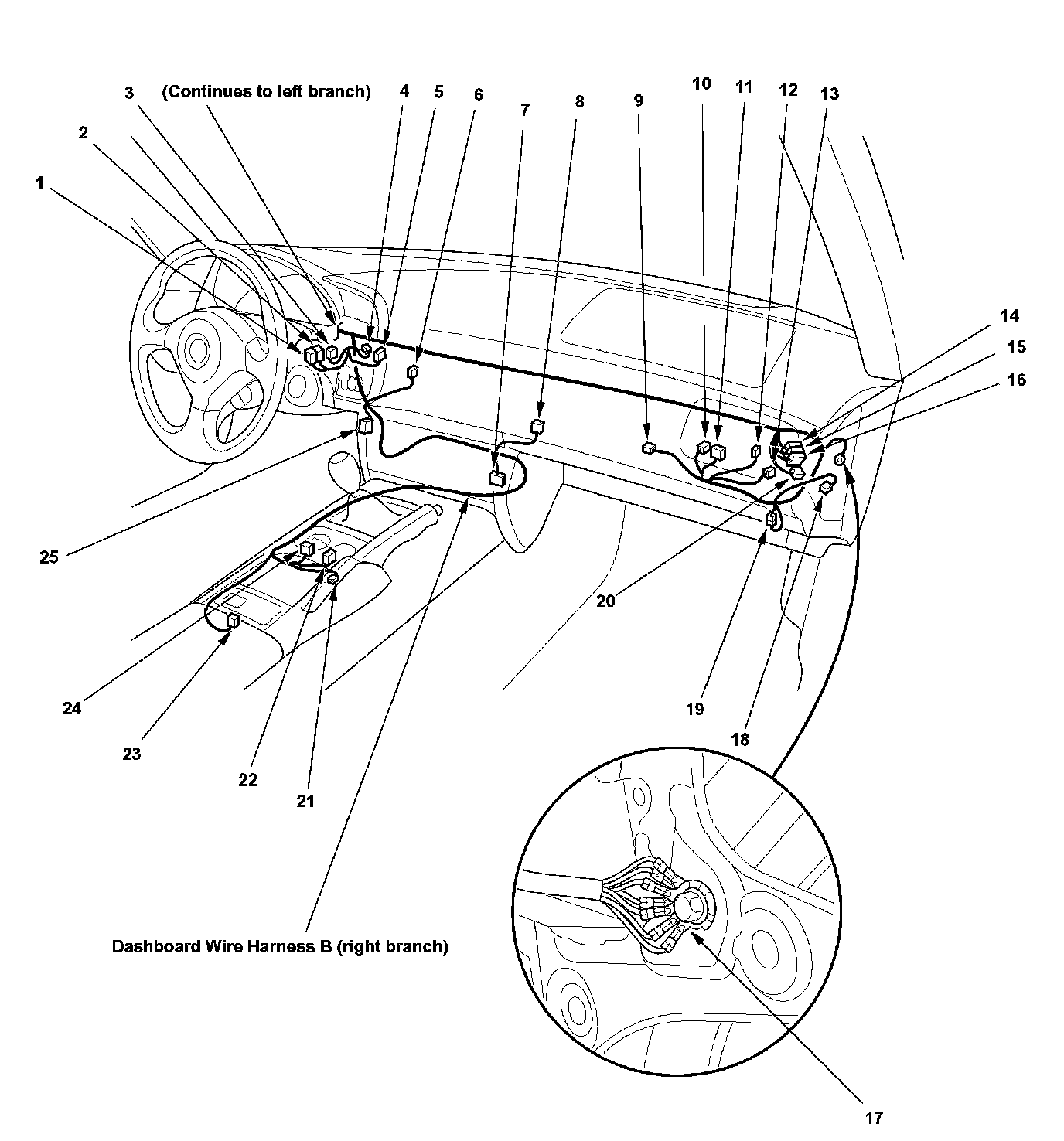

Harness Location View:

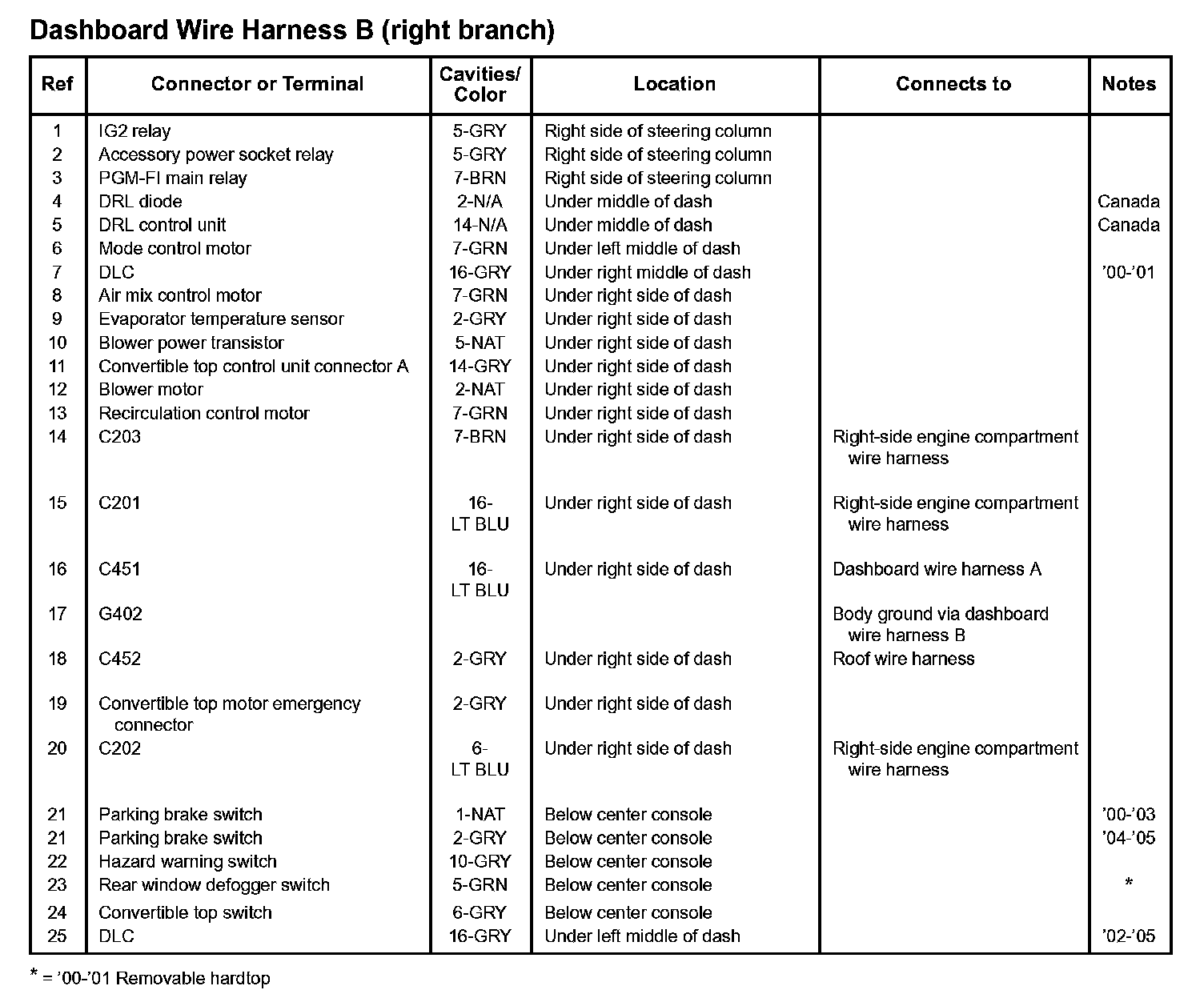

Dashboard Wire Harness B (Right Branch):
