Power Mirror Switch: Locations

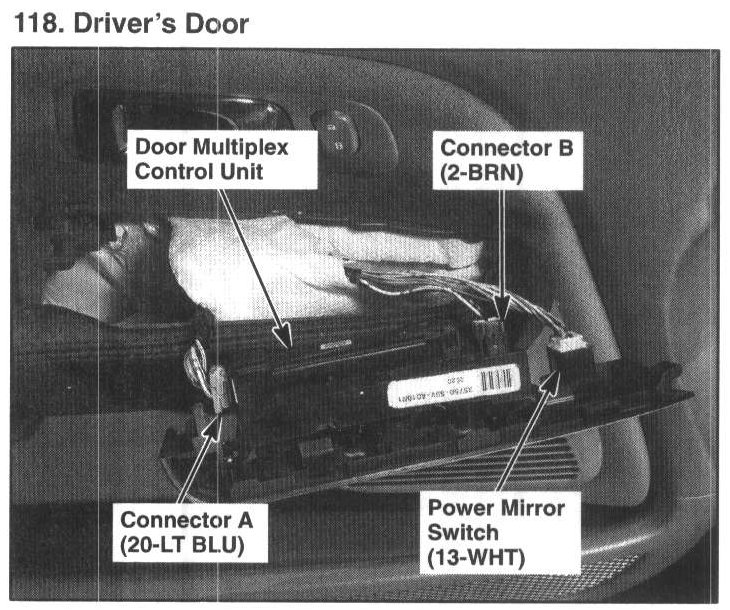

118. Driver's Door:

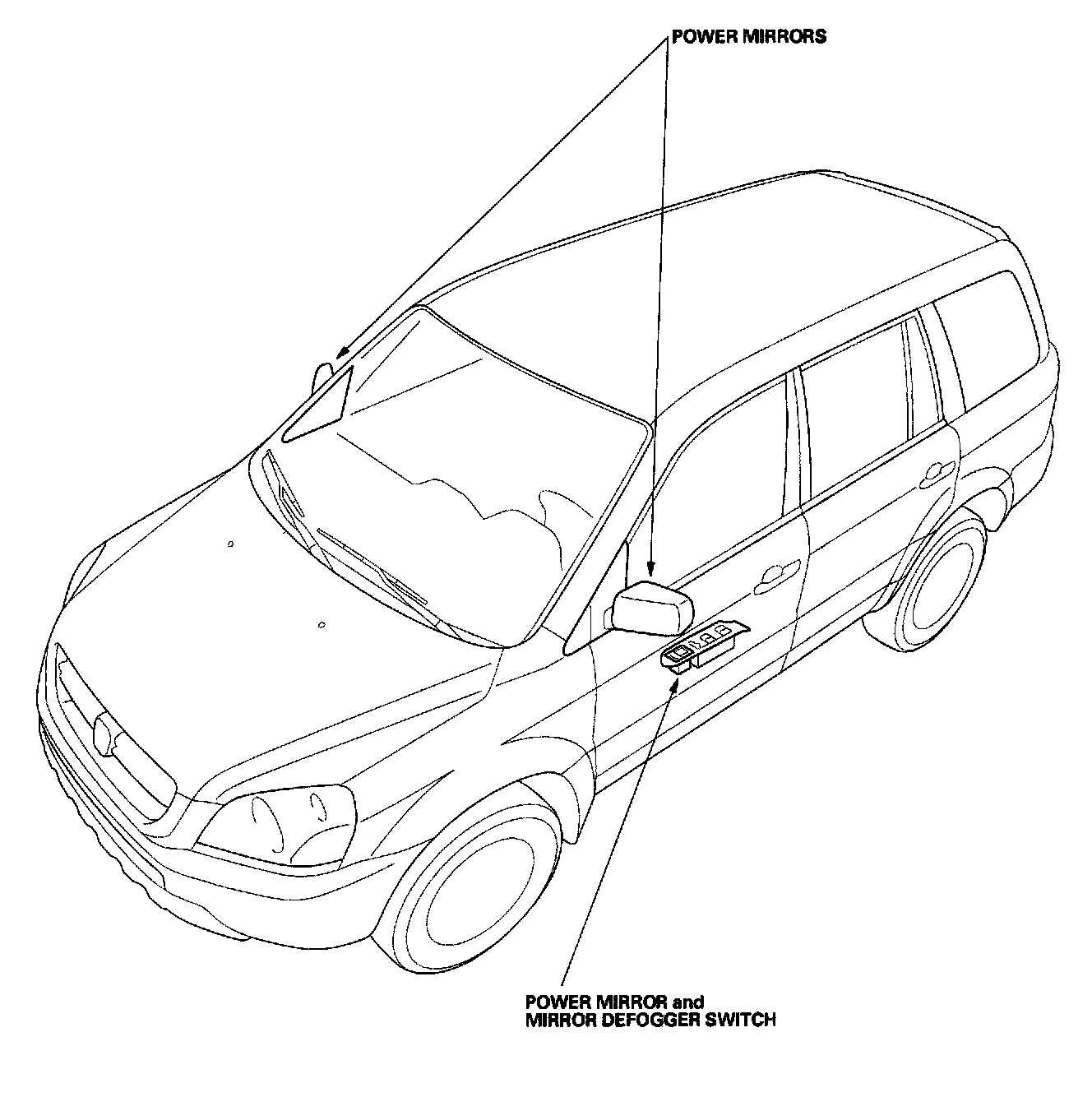

Power Mirrors Component Location Index:



Front Door Component Location Index:
