130-0 to 130-4

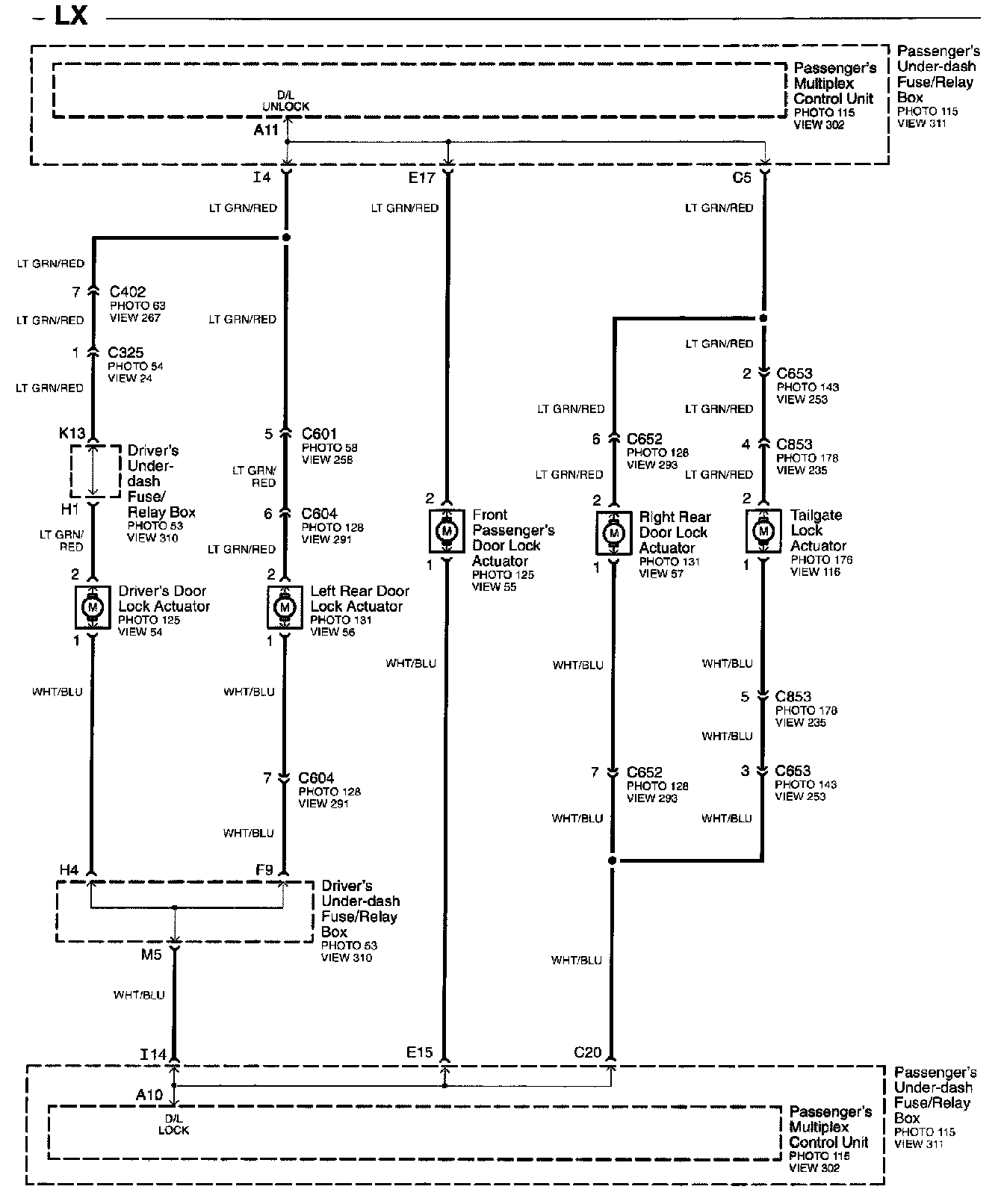

Diagram 130-0 (LX):

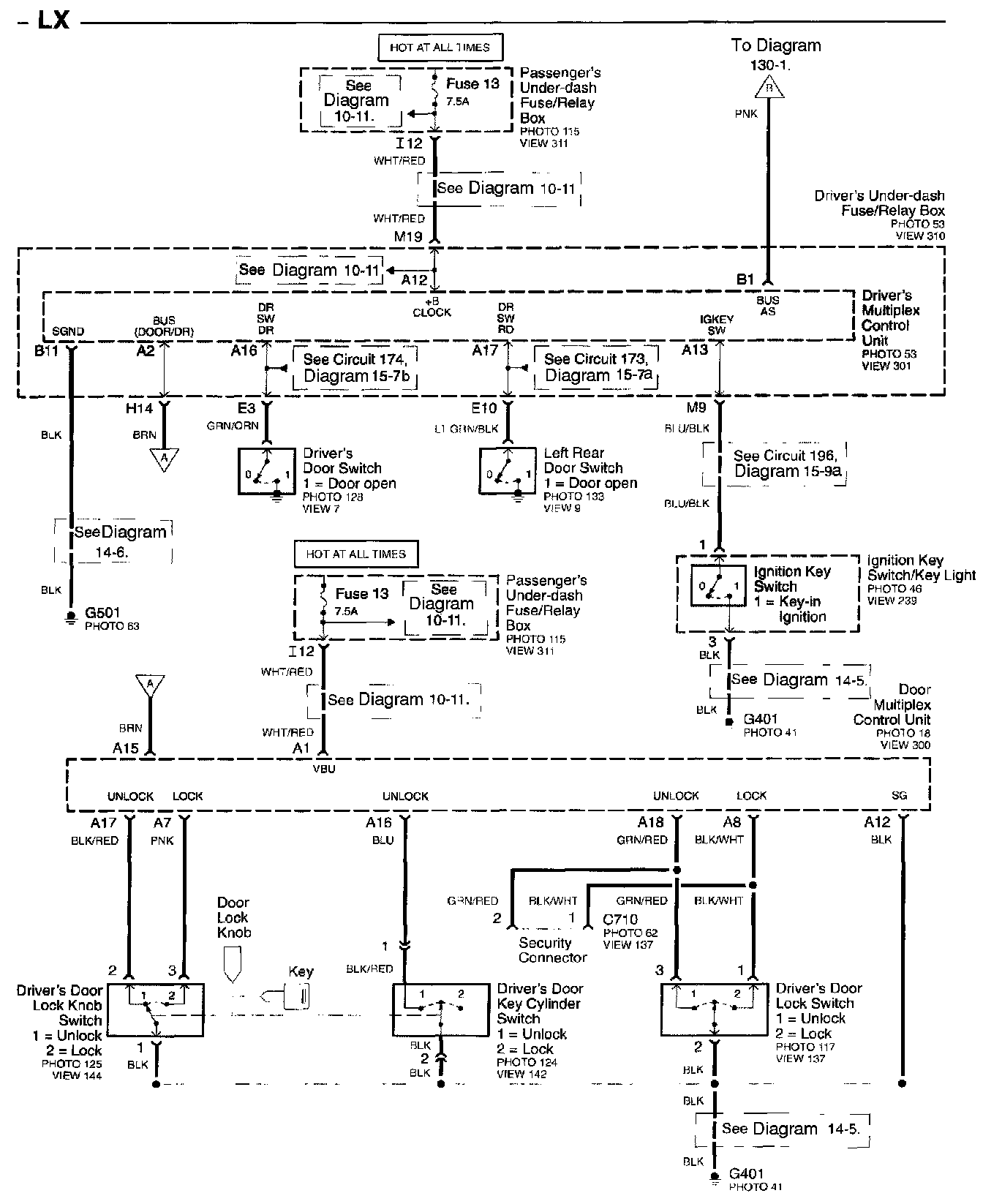

Diagram 130-1 (LX):

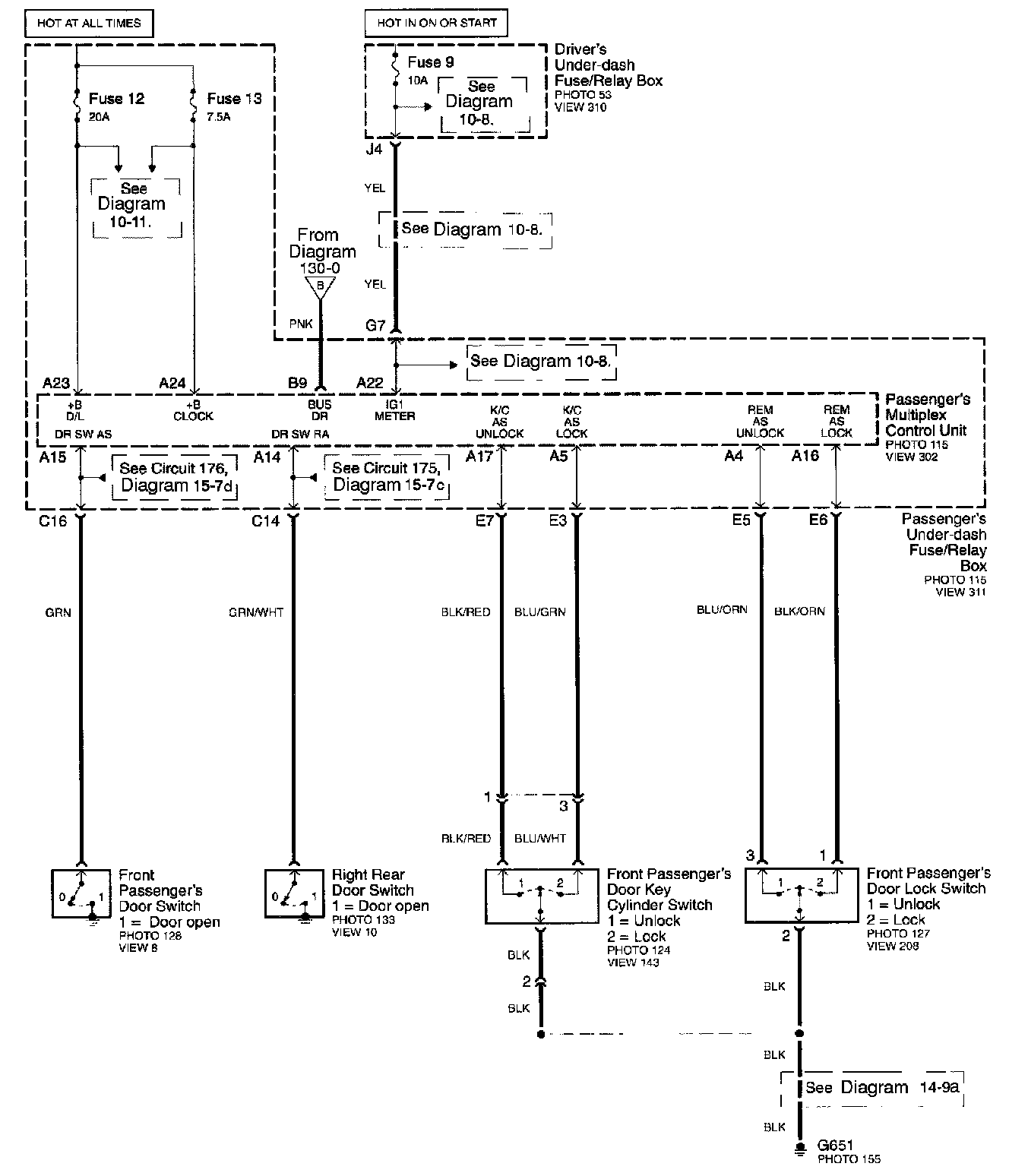

Diagram 130-2 (LX):

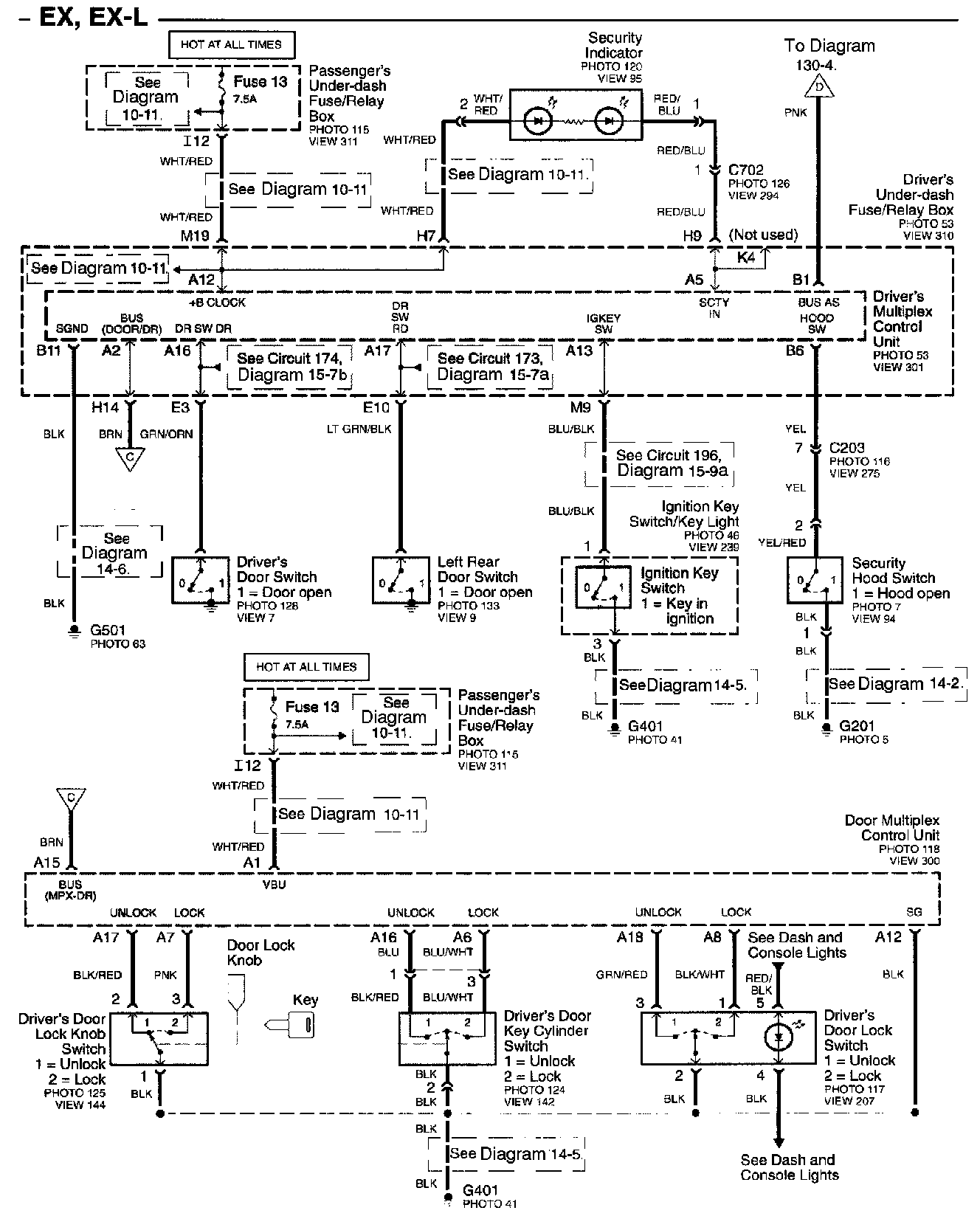

Diagram 130-3 (EX, EX-L):

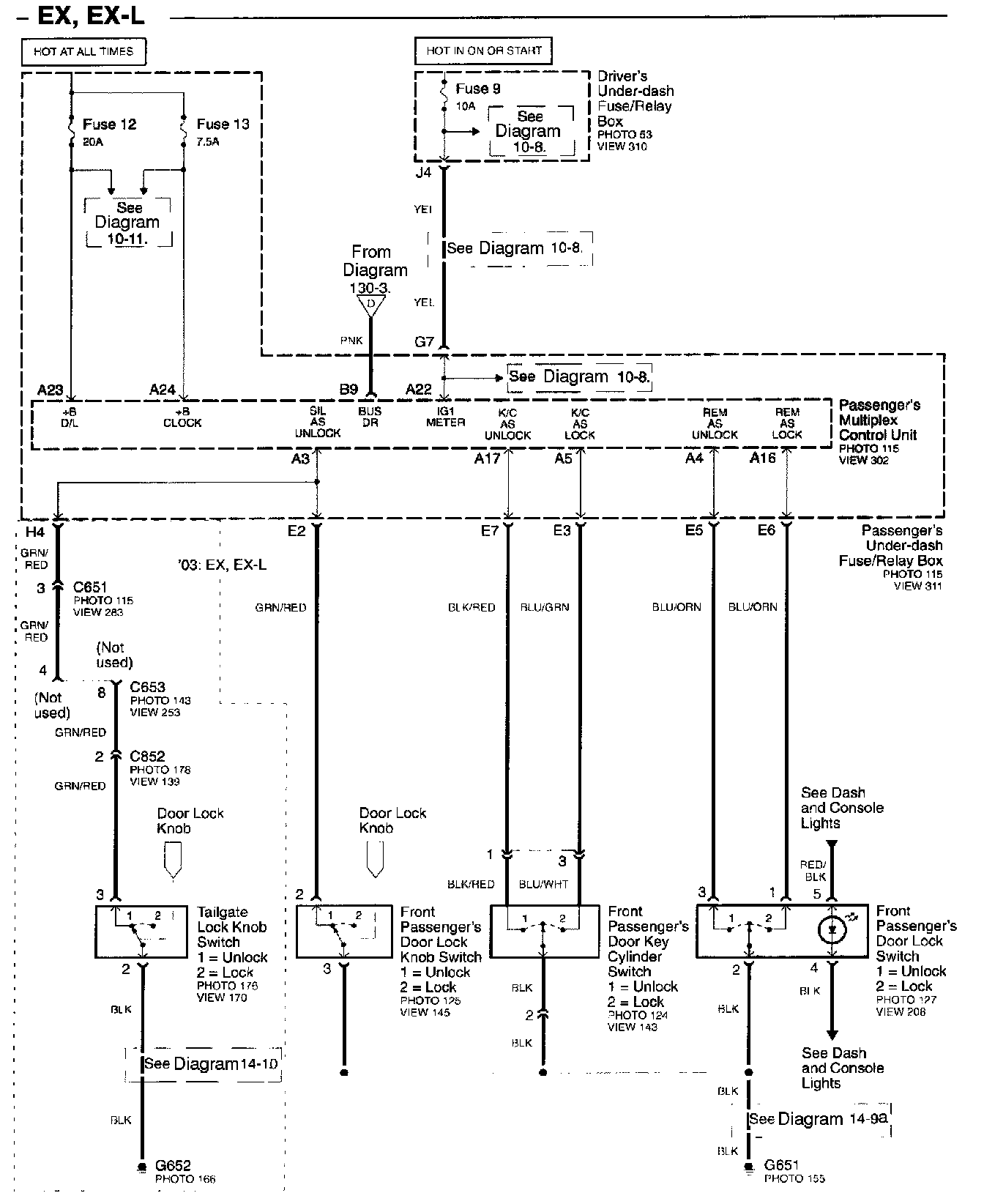

Diagram 130-4 (EX, EX-L):
