Home >> Honda >> 2004 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connectors >> Connector ID By Location on harness >> Left Rear Door Wire Harness

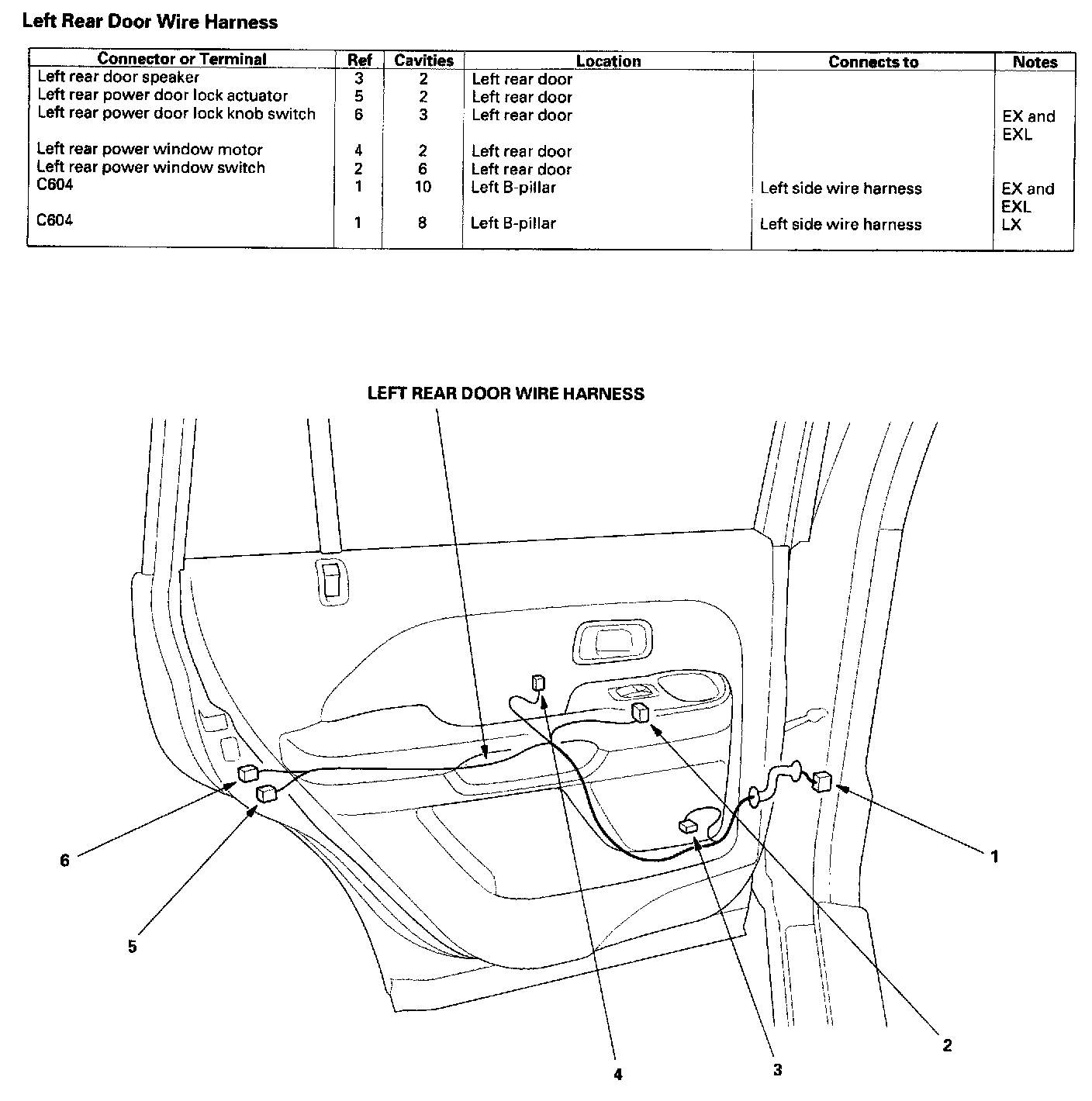

Left Rear Door Wire Harness

Left Rear Door Wire Harness:



Left Rear Door Wire Harness:
