Home >> Honda >> 2004 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Locations >> Connector Locations

Connector Locations

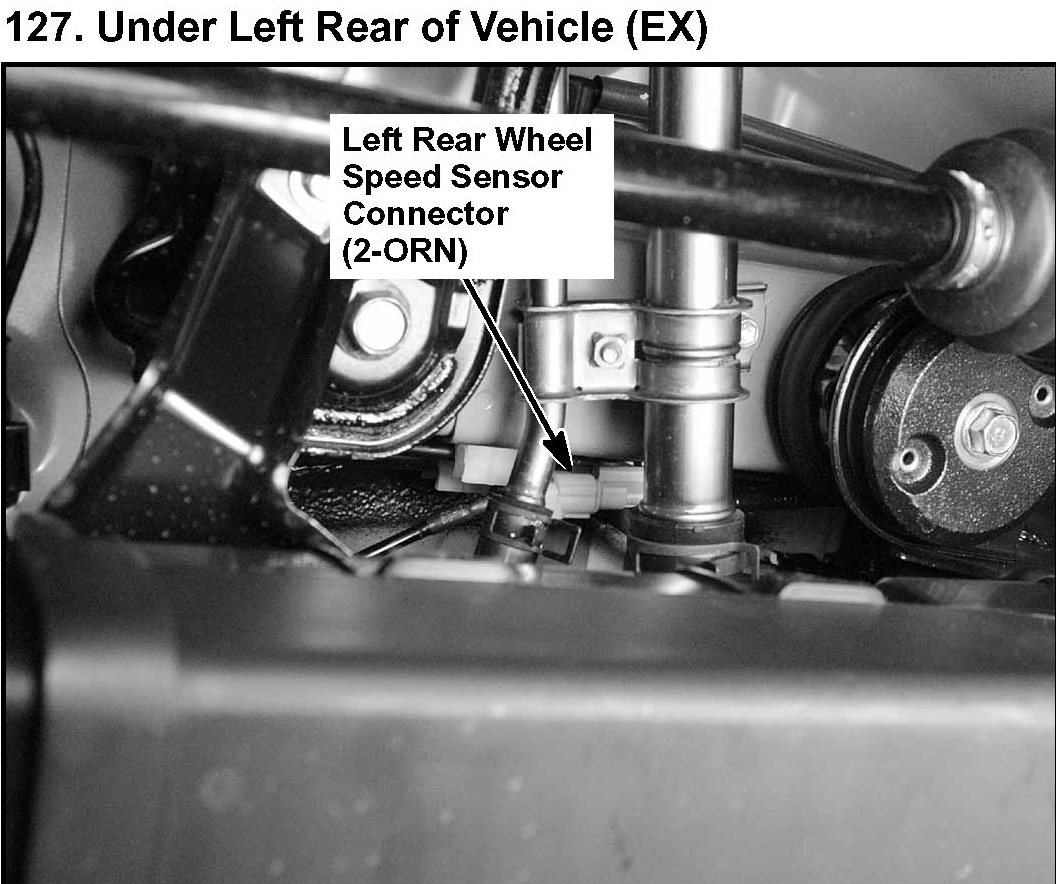

127. Under Left Rear of Vehicle (EX):

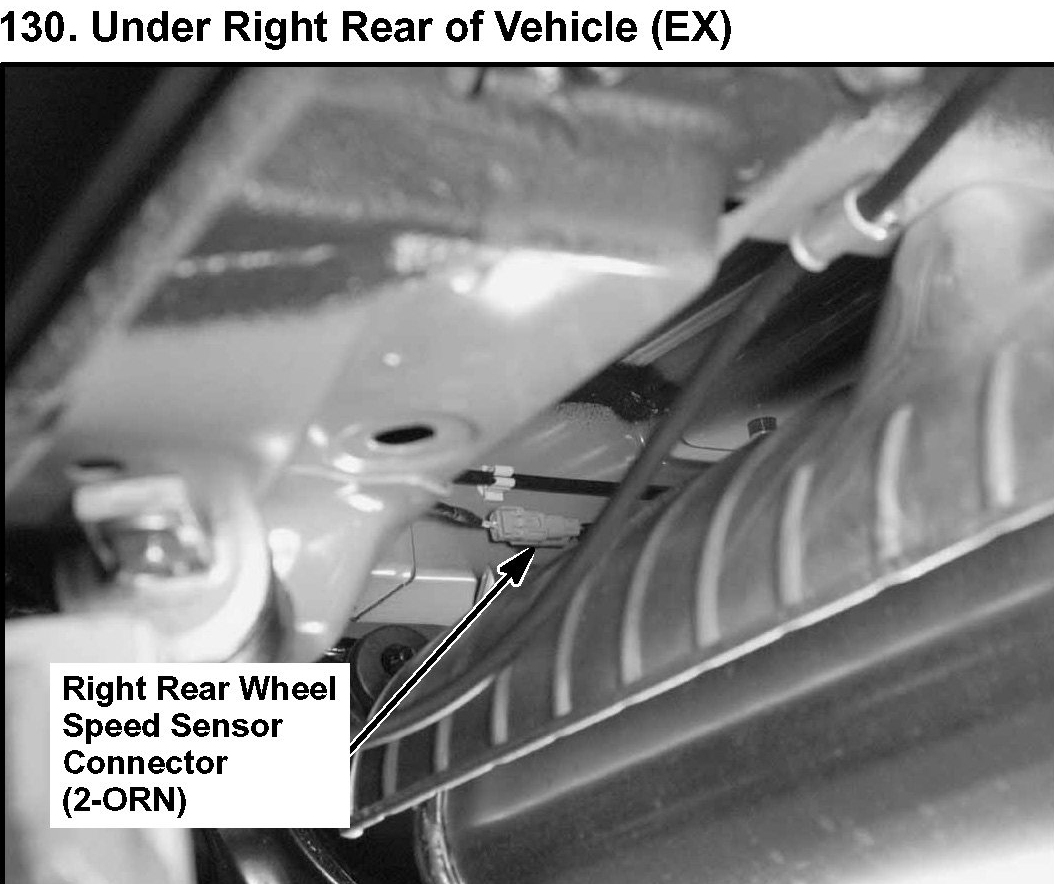

130. Under Right Rear of Vehicle (EX):
