Brake System Operation

WARNING: This page is about a different variant/trim than selected.

For component trouble shooting and system trouble shooting procedures, see Fig 1.

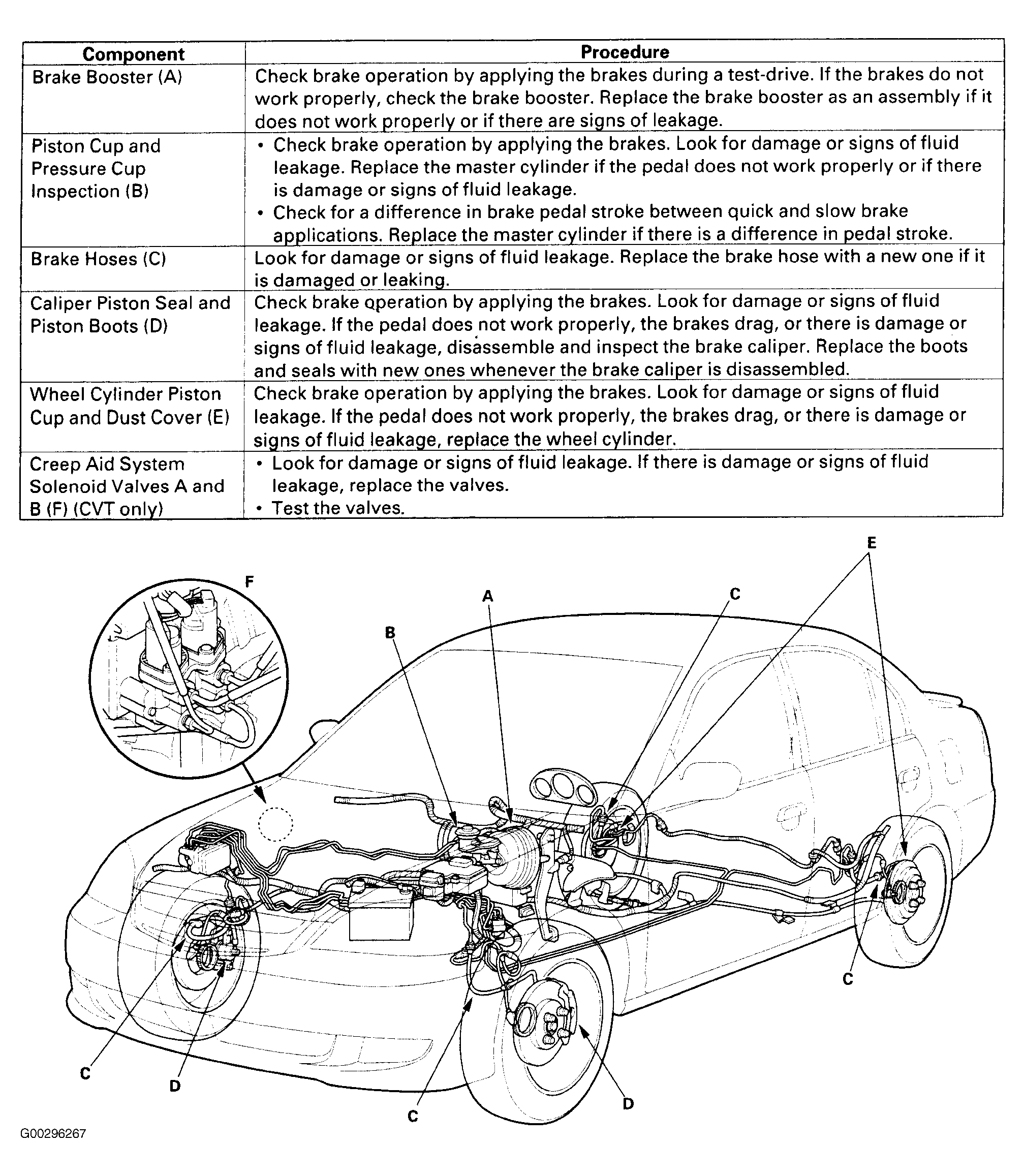

Fig 1: Brake System Check

Courtesy of AMERICAN HONDA MOTOR CO., INC.
