Disassembly & Reassembly

WARNING: This page is about a different variant/trim than selected.

For exploded views of front disc brake calipers, see Fig 1.

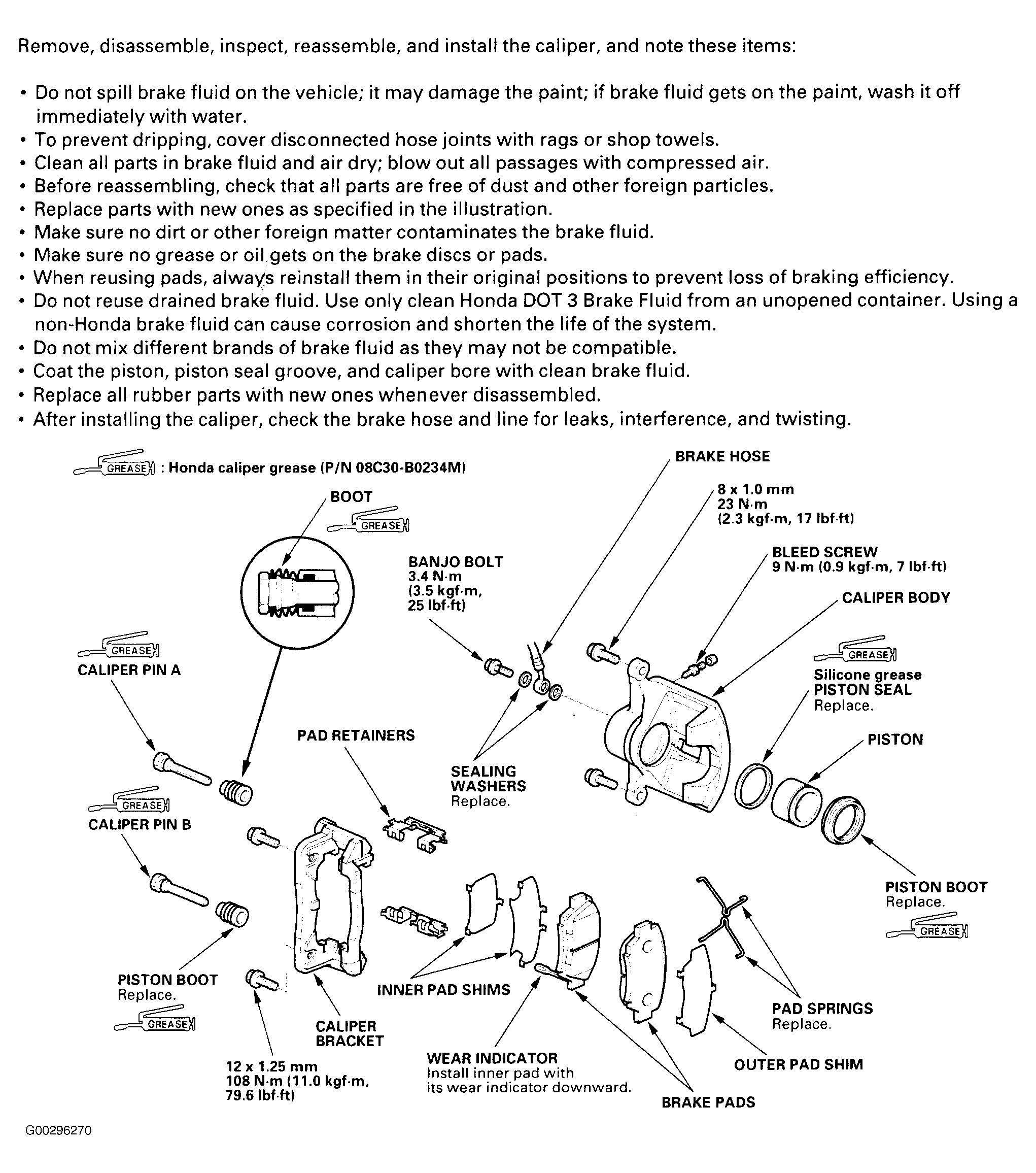

Fig 1: Exploded View Of Brake Caliper Overhaul
G00296270Courtesy of AMERICAN HONDA MOTOR CO., INC.
