Section 2 (Disc Brakes & Drum Brakes (Hybrid)): Description

WARNING: This page is about a different variant/trim than selected.

NOTE: This article covers Civic Hybrid. For all other models, see DISC & DRUM - EXCEPT CIVIC HYBRID article.

Model uses front disc brakes and rear self-adjusting drum type. Parking brake cable mechanism applies rear brakes. See Fig 1 for views of component locations.

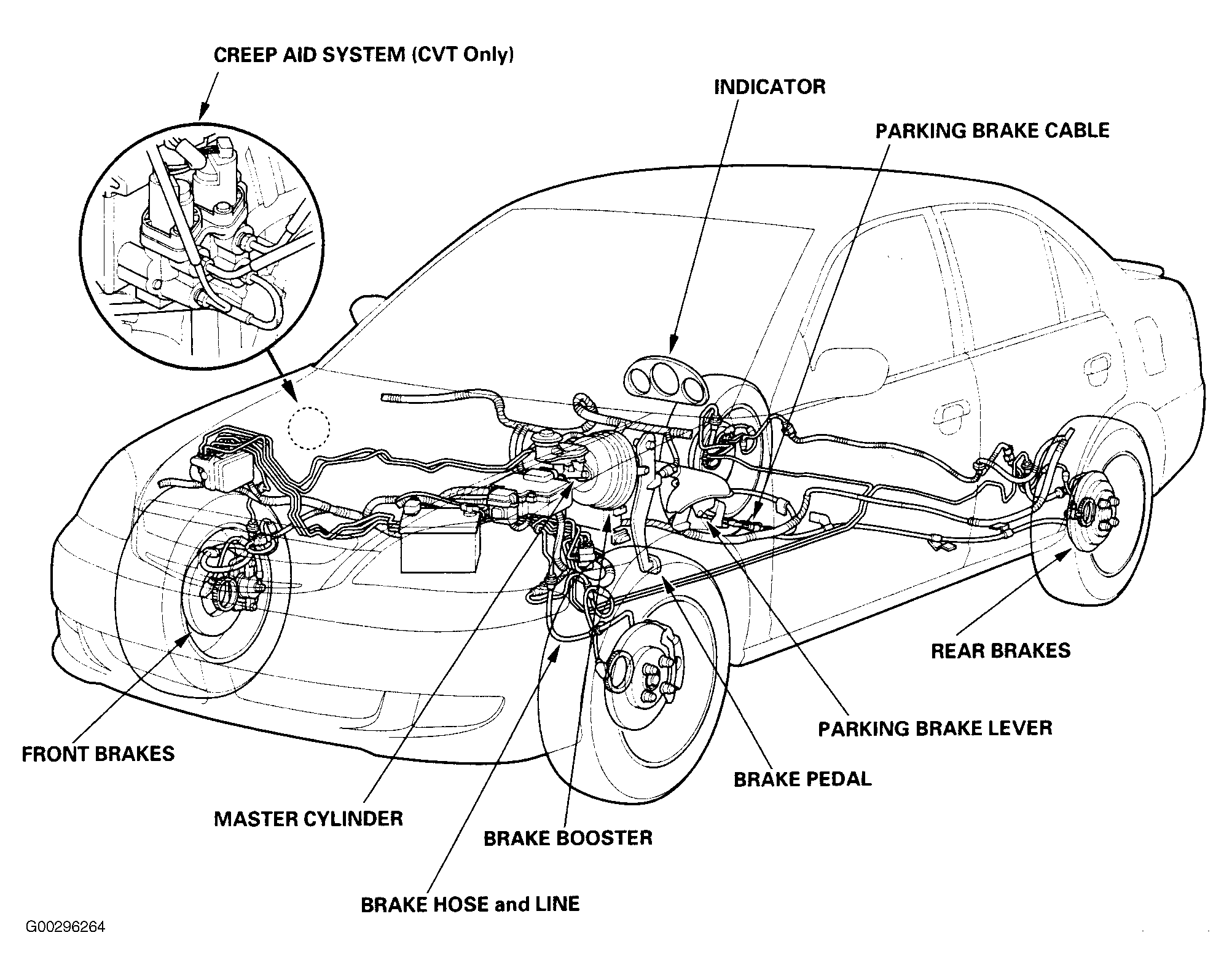

Fig 1: Locating Brake Components (Civic Hybrid)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
