Roof Wire Harness
Roof Wire Harness

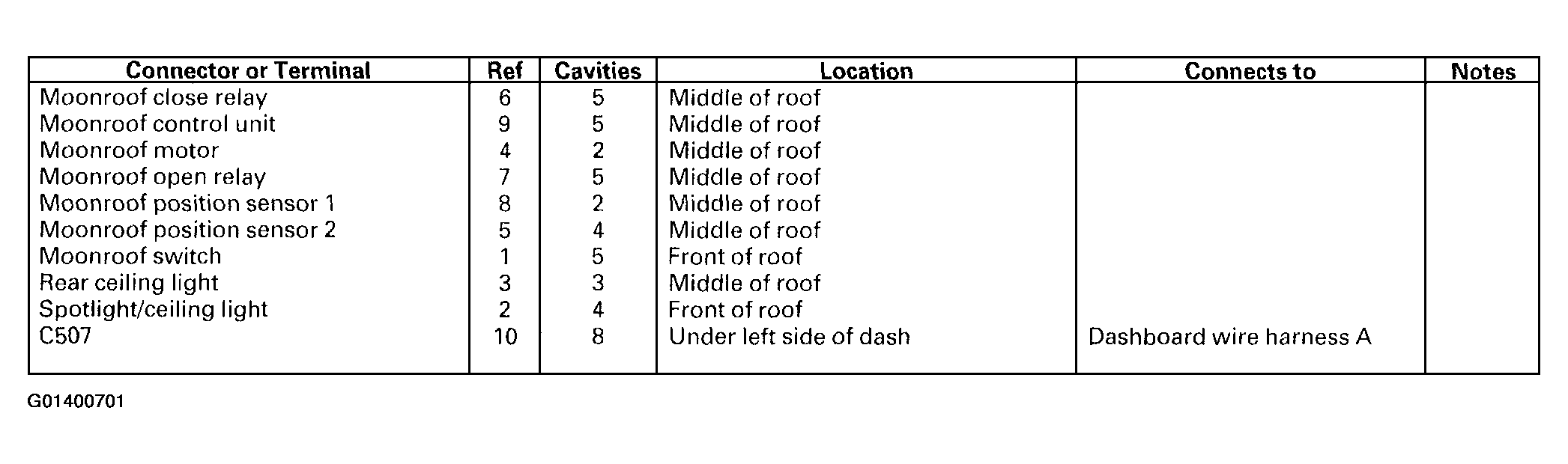

Fig 1: Roof Wire Harness Locations Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

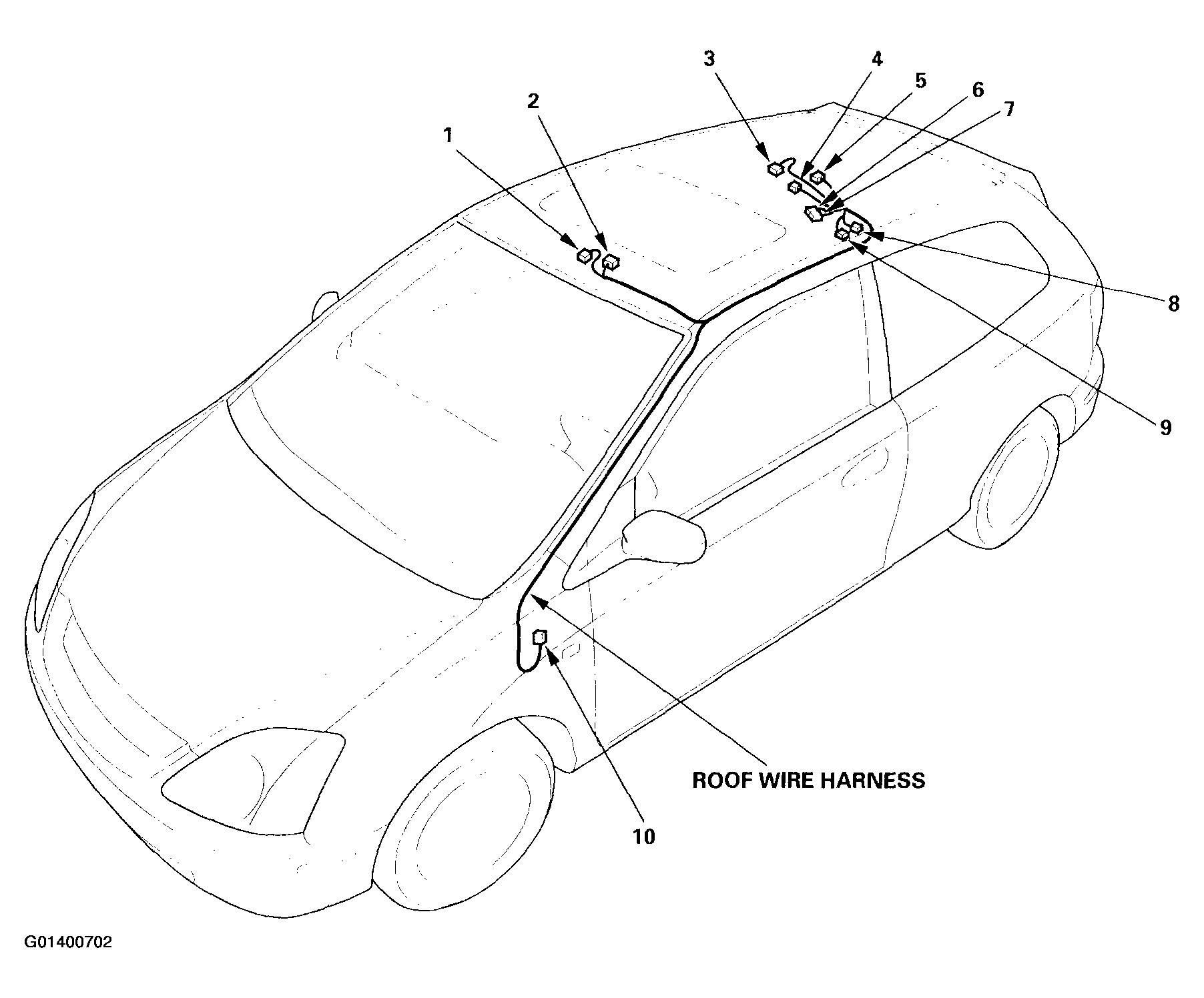

Fig 2: Identifying Roof Wire Harness Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
