Passenger's Door Wire Harness

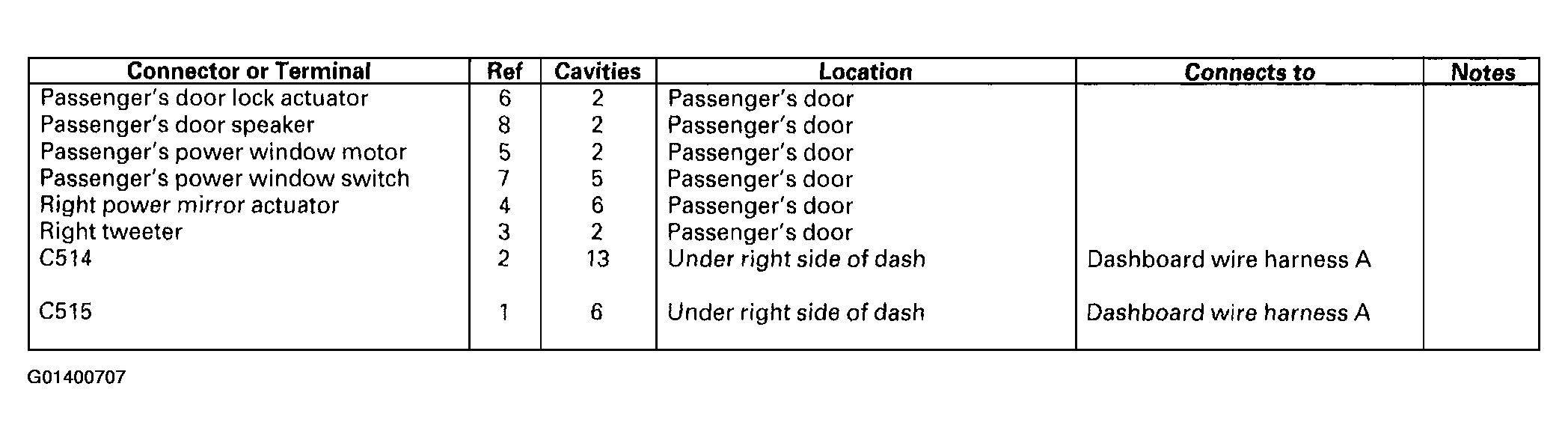

Fig 1: Passenger's Door Wire Harness Locations Chart
G01400707Courtesy of AMERICAN HONDA MOTOR CO., INC.

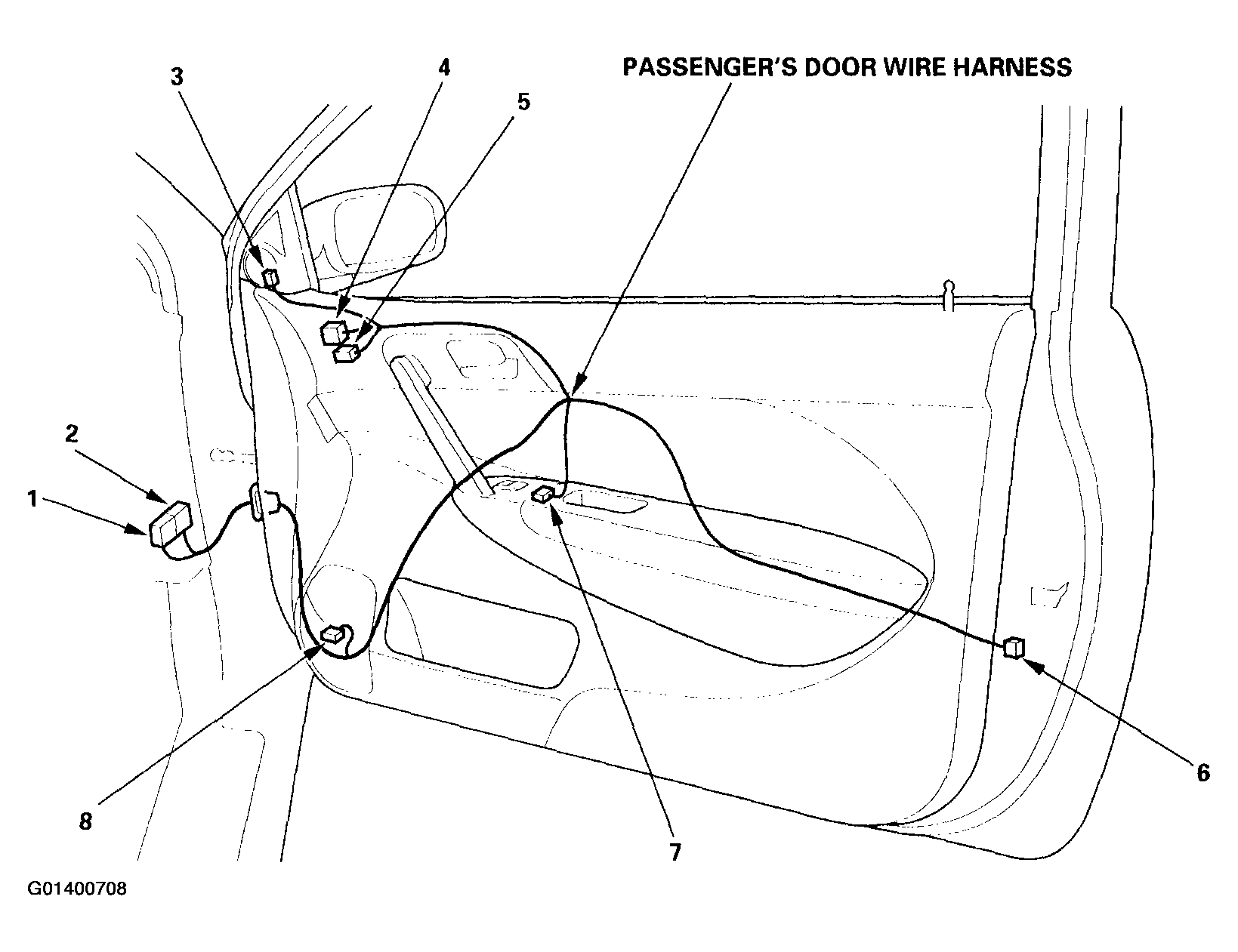

Fig 2: Identifying Passenger's Door Wire Harness Locations
G01400708Courtesy of AMERICAN HONDA MOTOR CO., INC.
