Floor Wire Harness (Front Side)
Floor Wire Harness (Front Side)

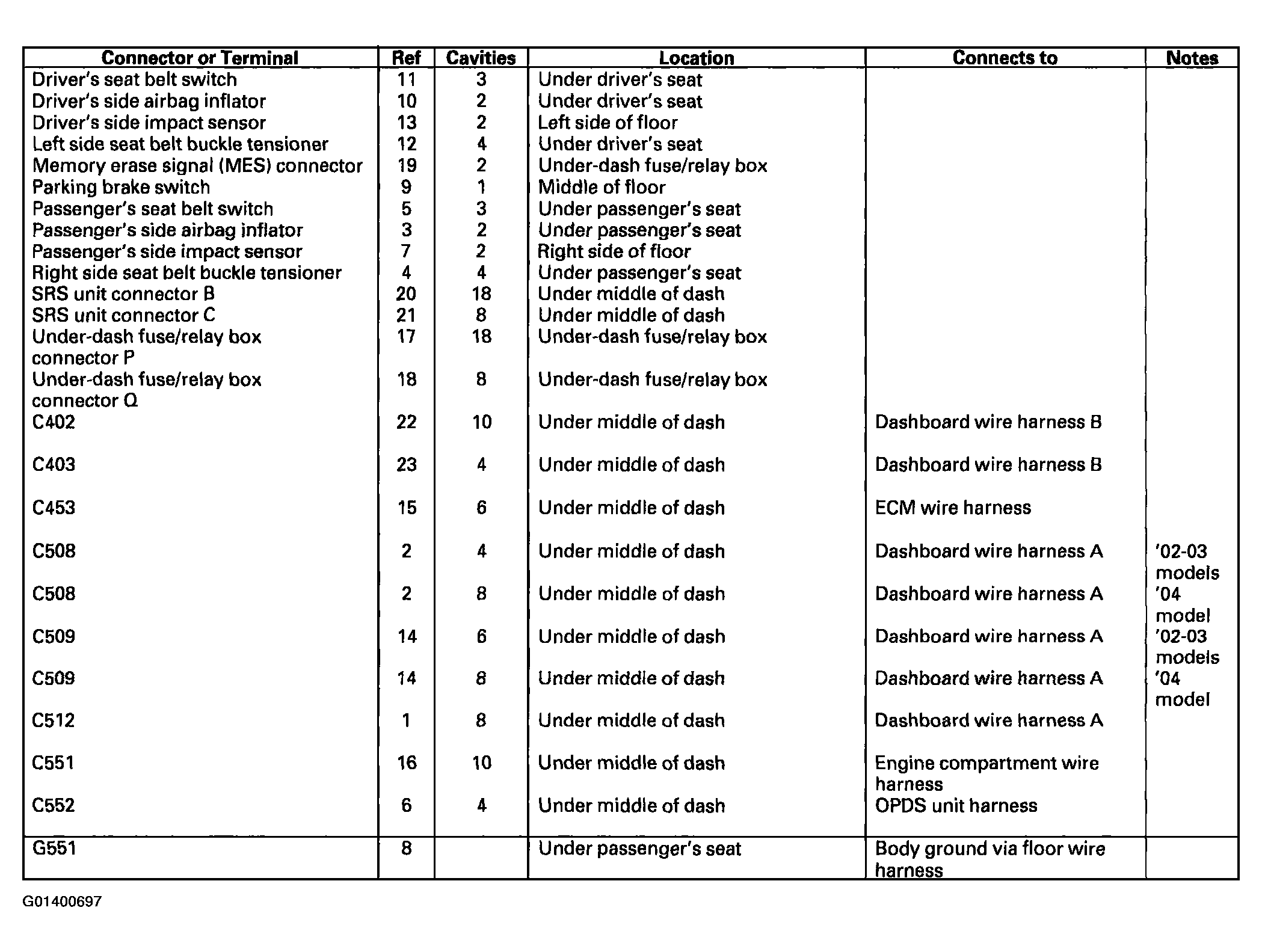

Fig 1: Floor Wire Harness (Front Side) Locations Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

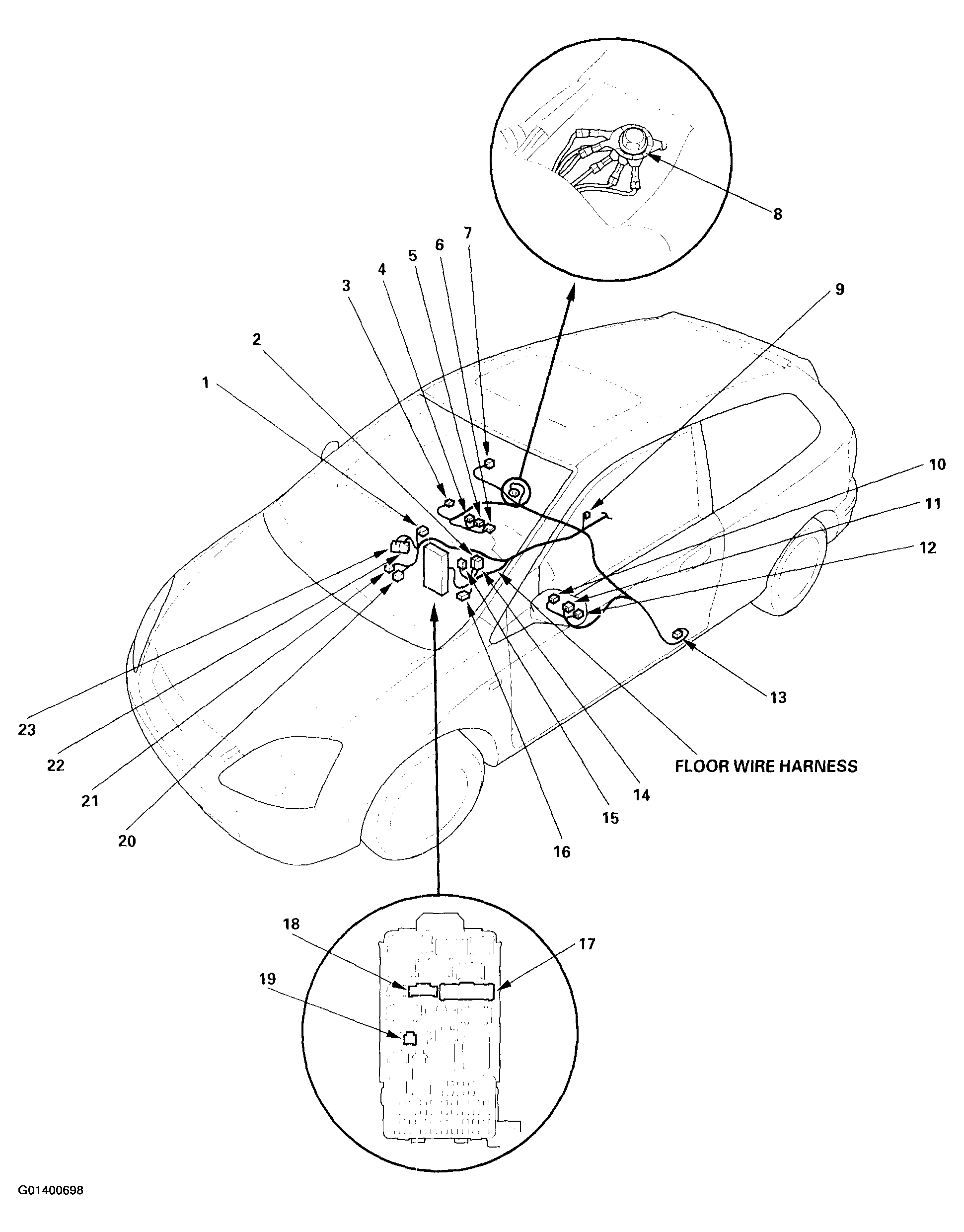

Fig 2: Identifying Floor Wire Harness (Front Side) Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
