Engine Wire Harness
Engine Wire Harness

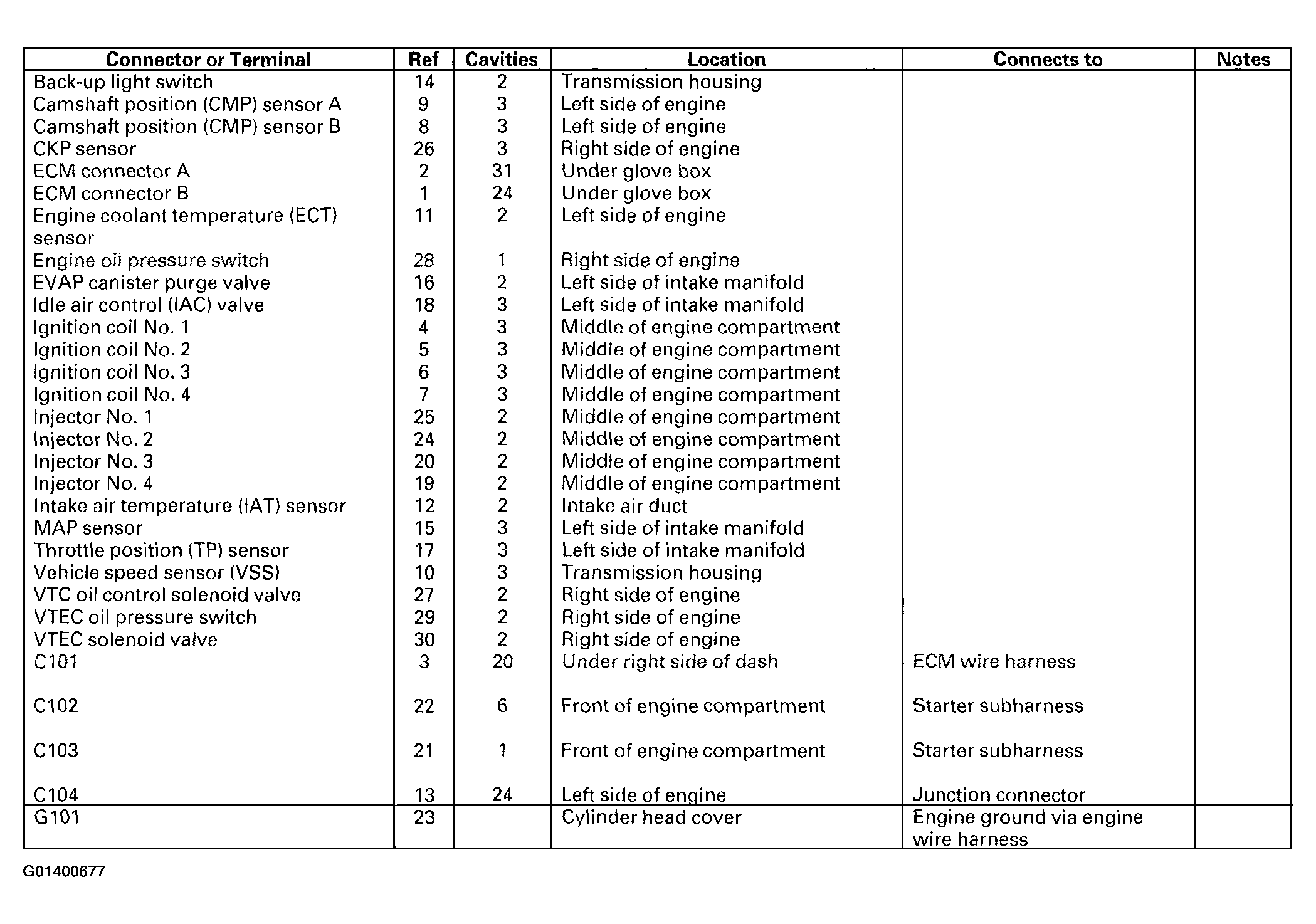

Fig 1: Engine Wire Harness Locations Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

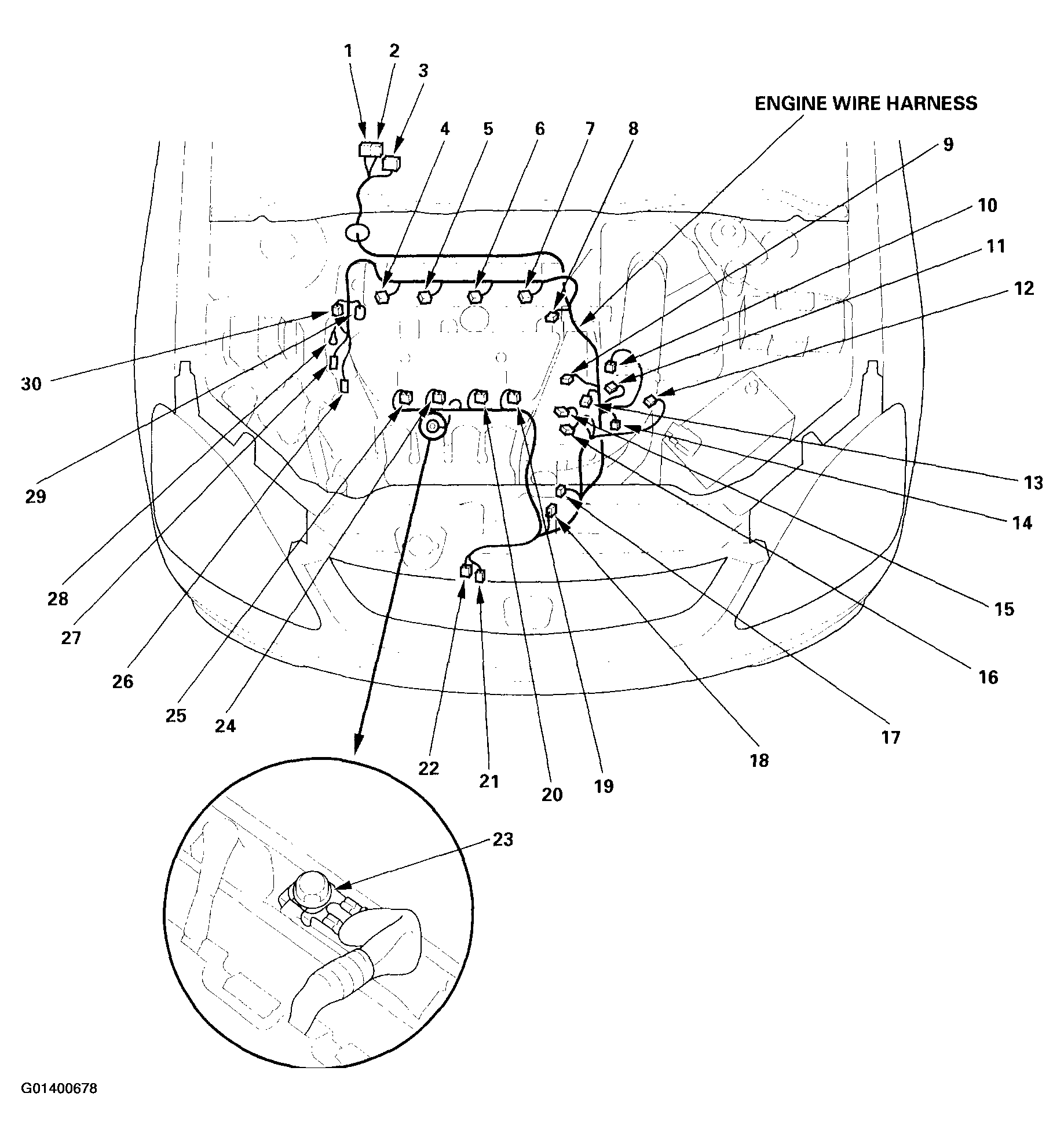

Fig 2: Identifying Engine Wire Harness Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
