Engine Compartment Wire Harness (Right Branch)

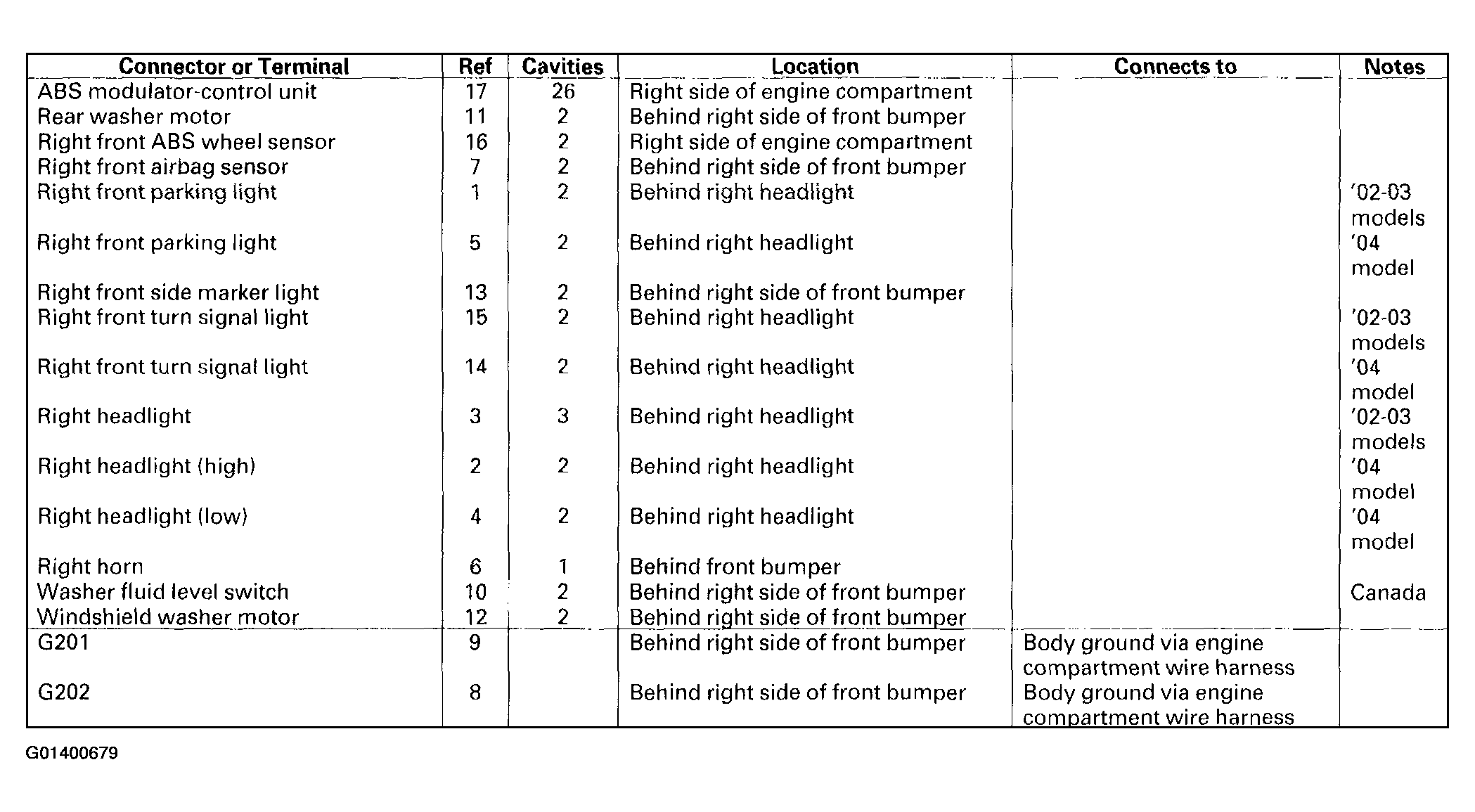

Fig 1: Engine Compartment Wire Harness (Right Branch) Locations Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

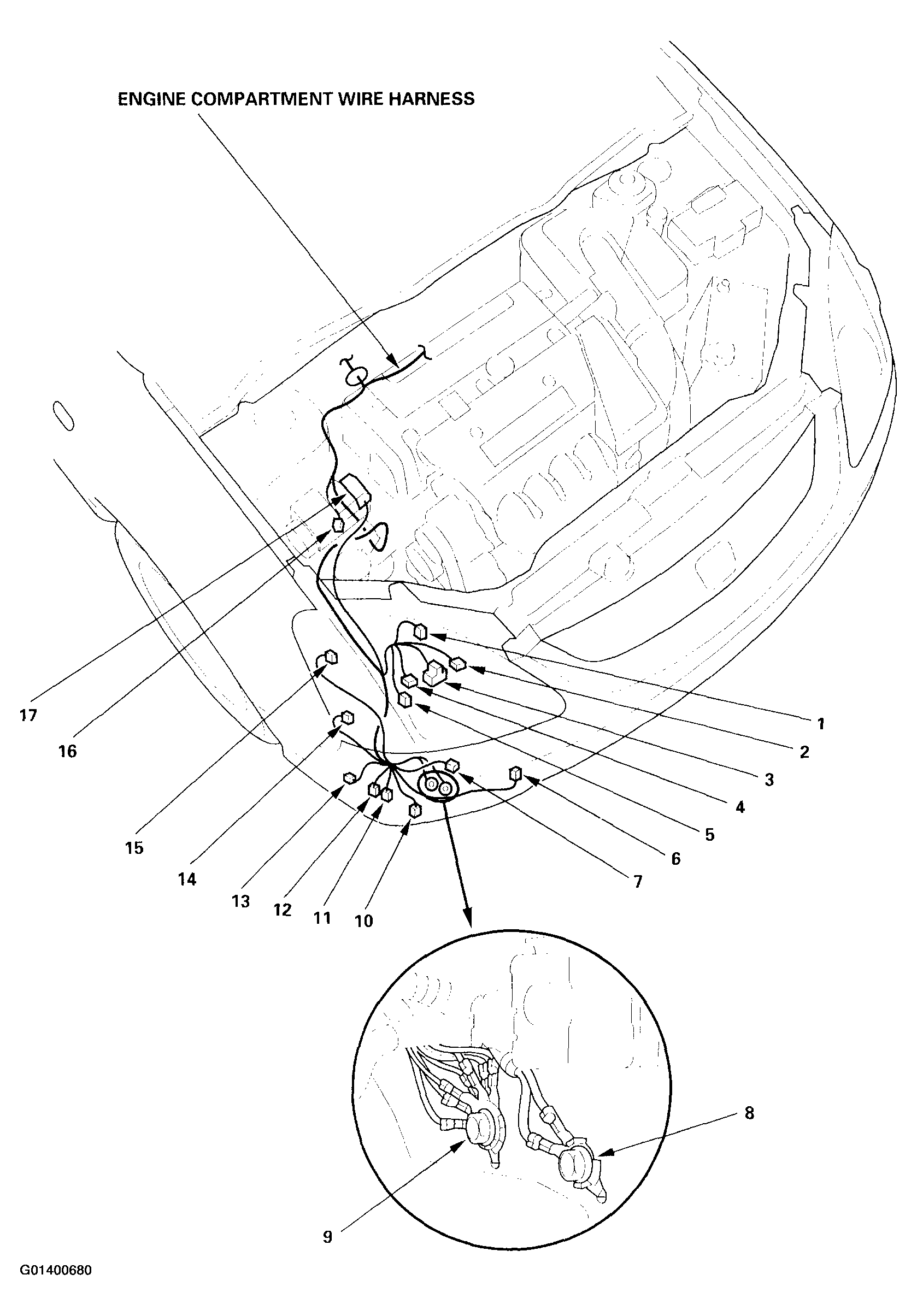

Fig 2: Identifying Engine Compartment Wire Harness (Right Branch) Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.
