Engine Compartment Wire Harness (Dashboard)

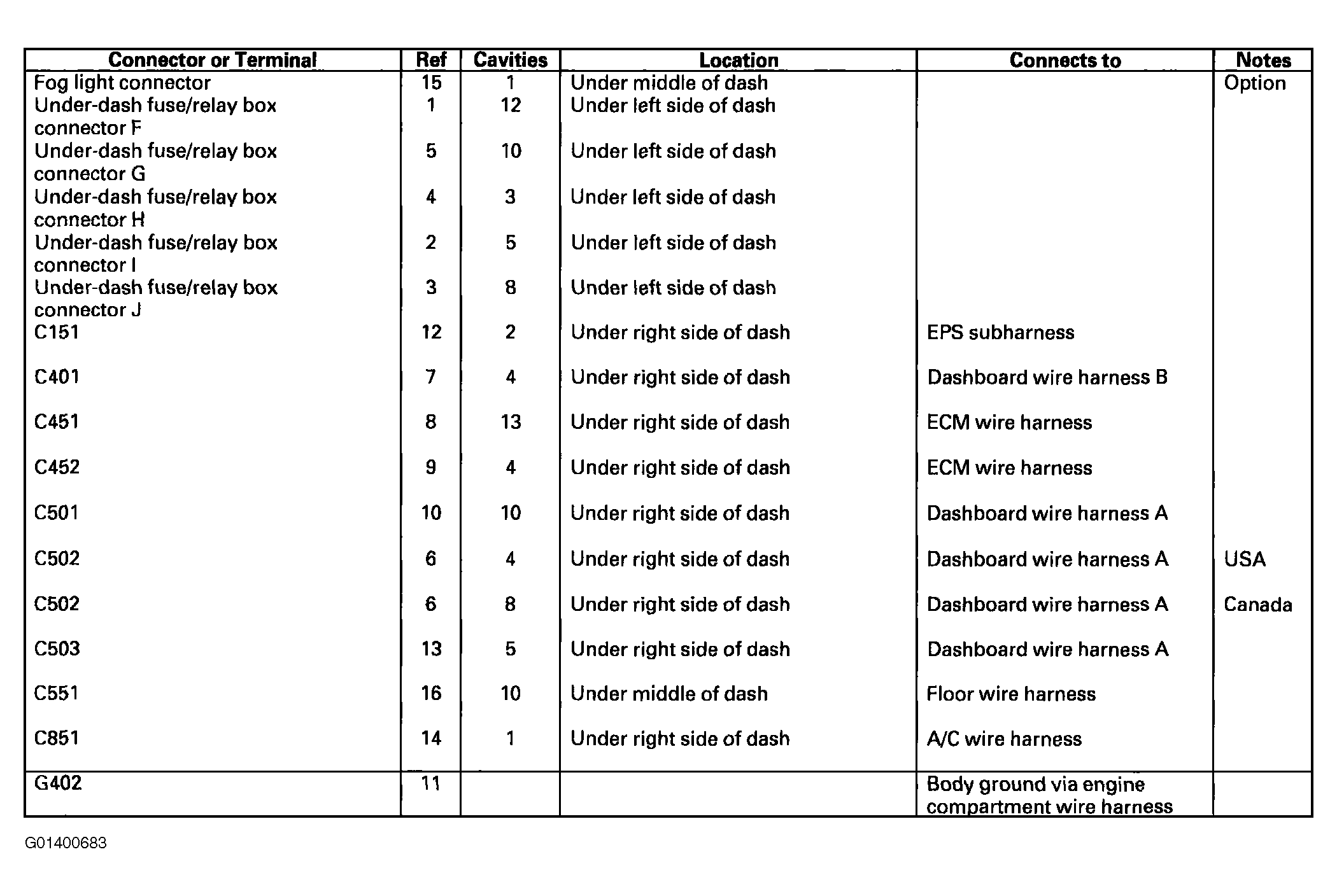

Fig 1: Engine Compartment Wire Harness (Dashboard) Locations Chart
G01400683Courtesy of AMERICAN HONDA MOTOR CO., INC.

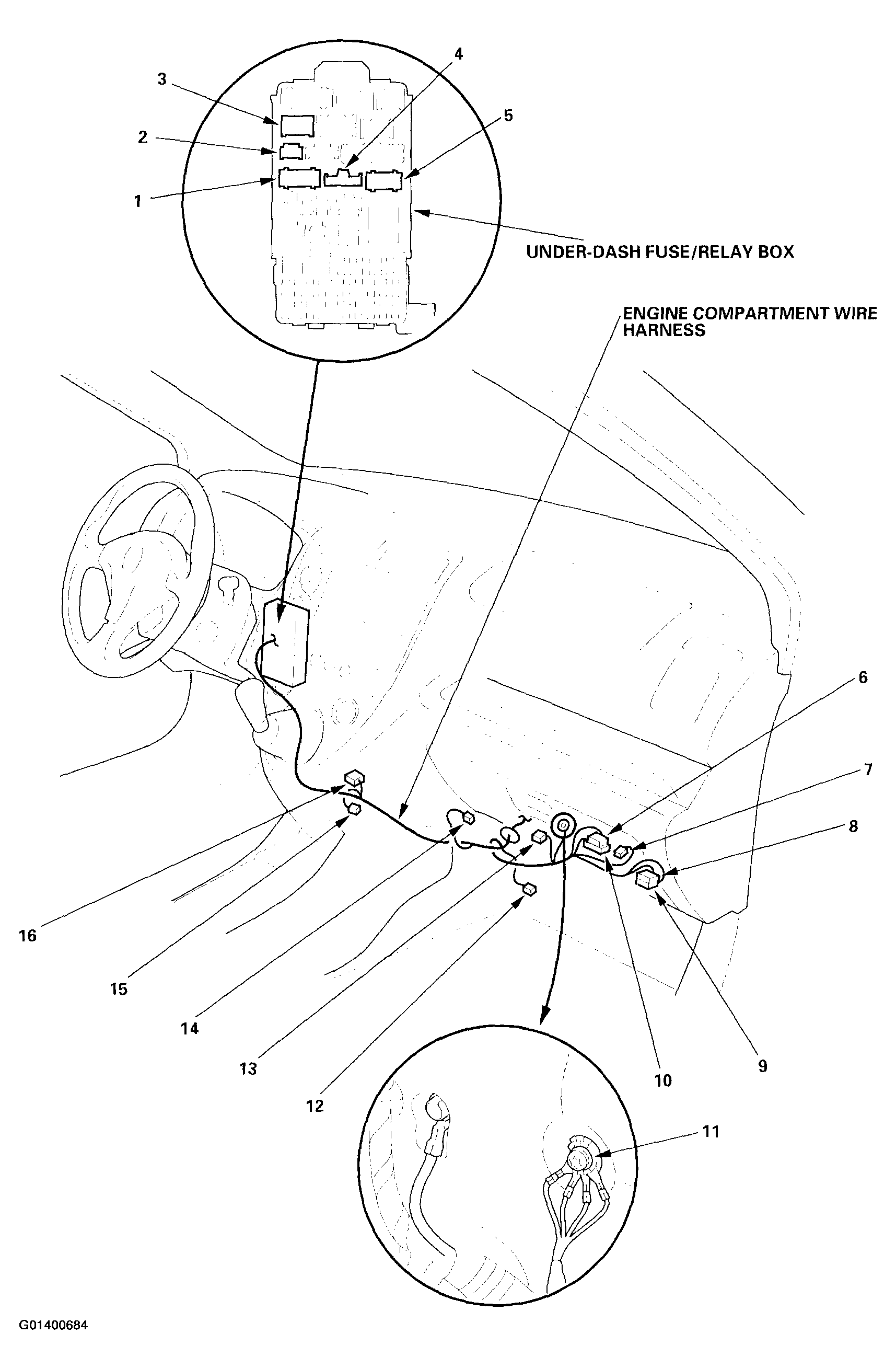

Fig 2: Identifying Engine Compartment Wire Harness (Dashboard) Locations
G01400684Courtesy of AMERICAN HONDA MOTOR CO., INC.
