EPS Subharness

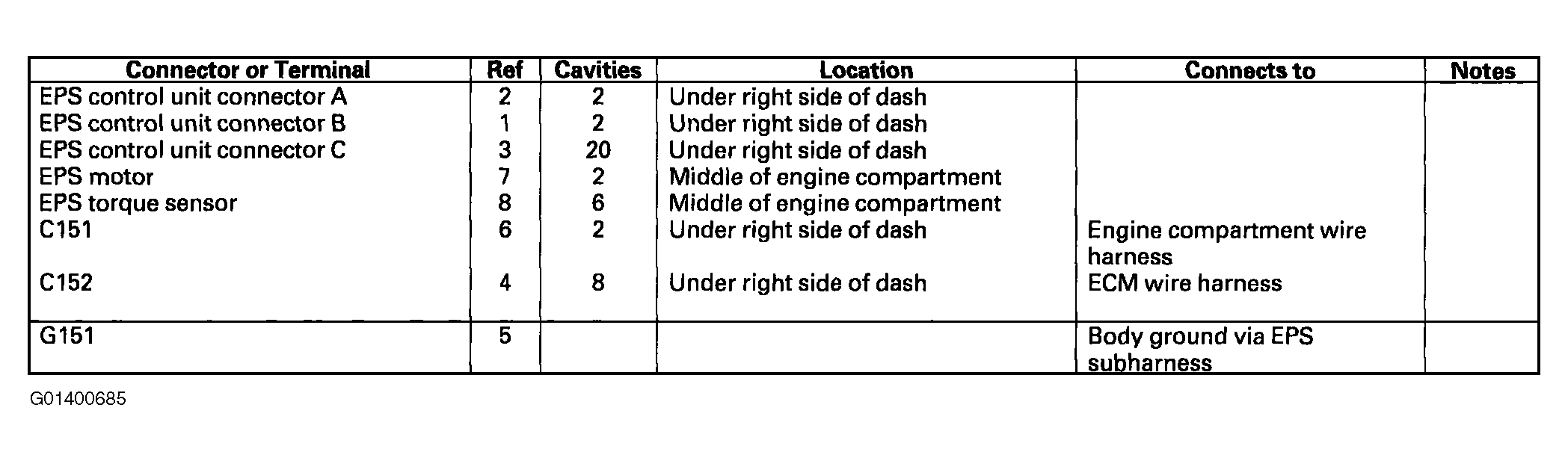

Fig 1: EPS Subharness Locations Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

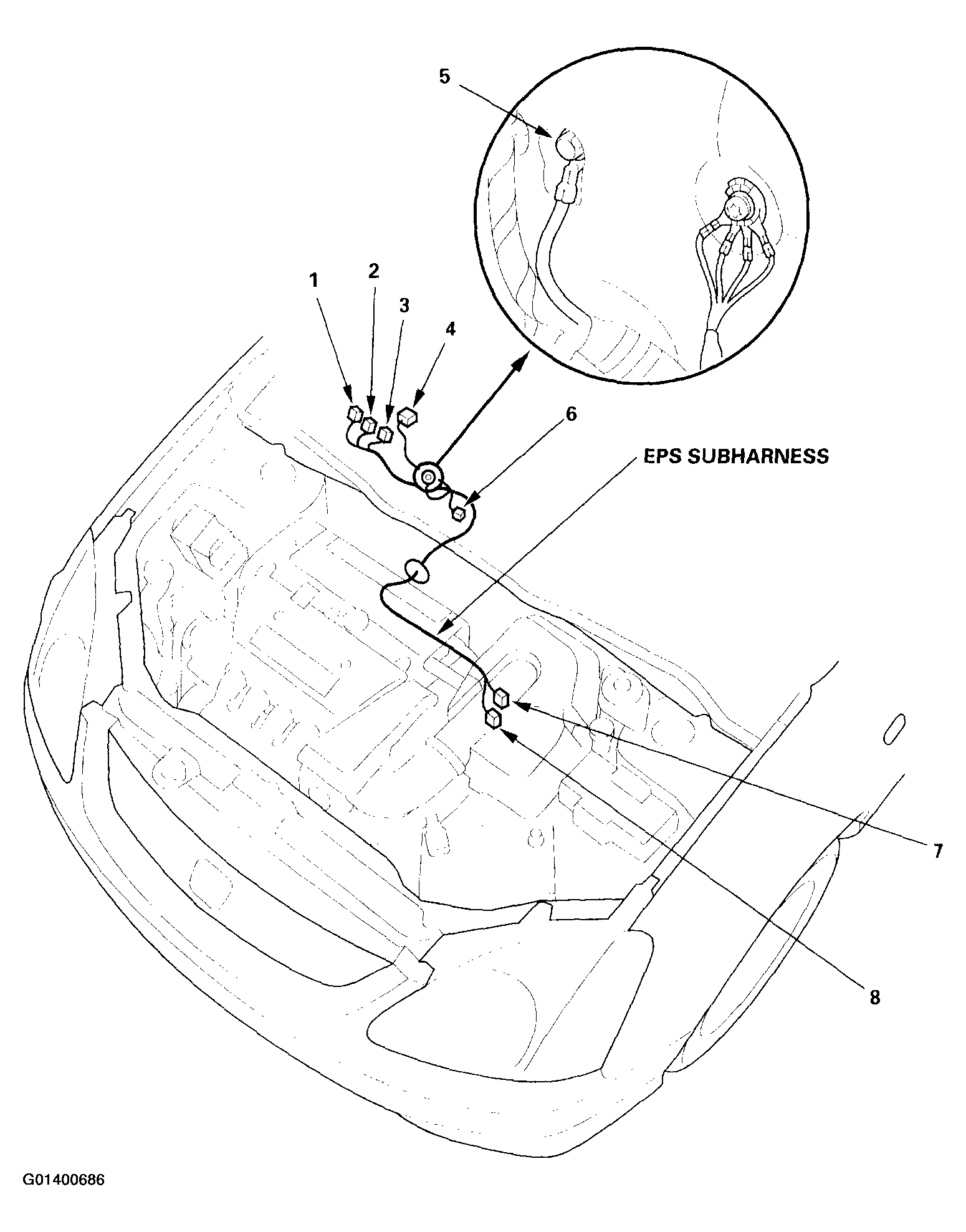

Fig 2: Identifying EPS Subharness Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
