ECM Wire Harness

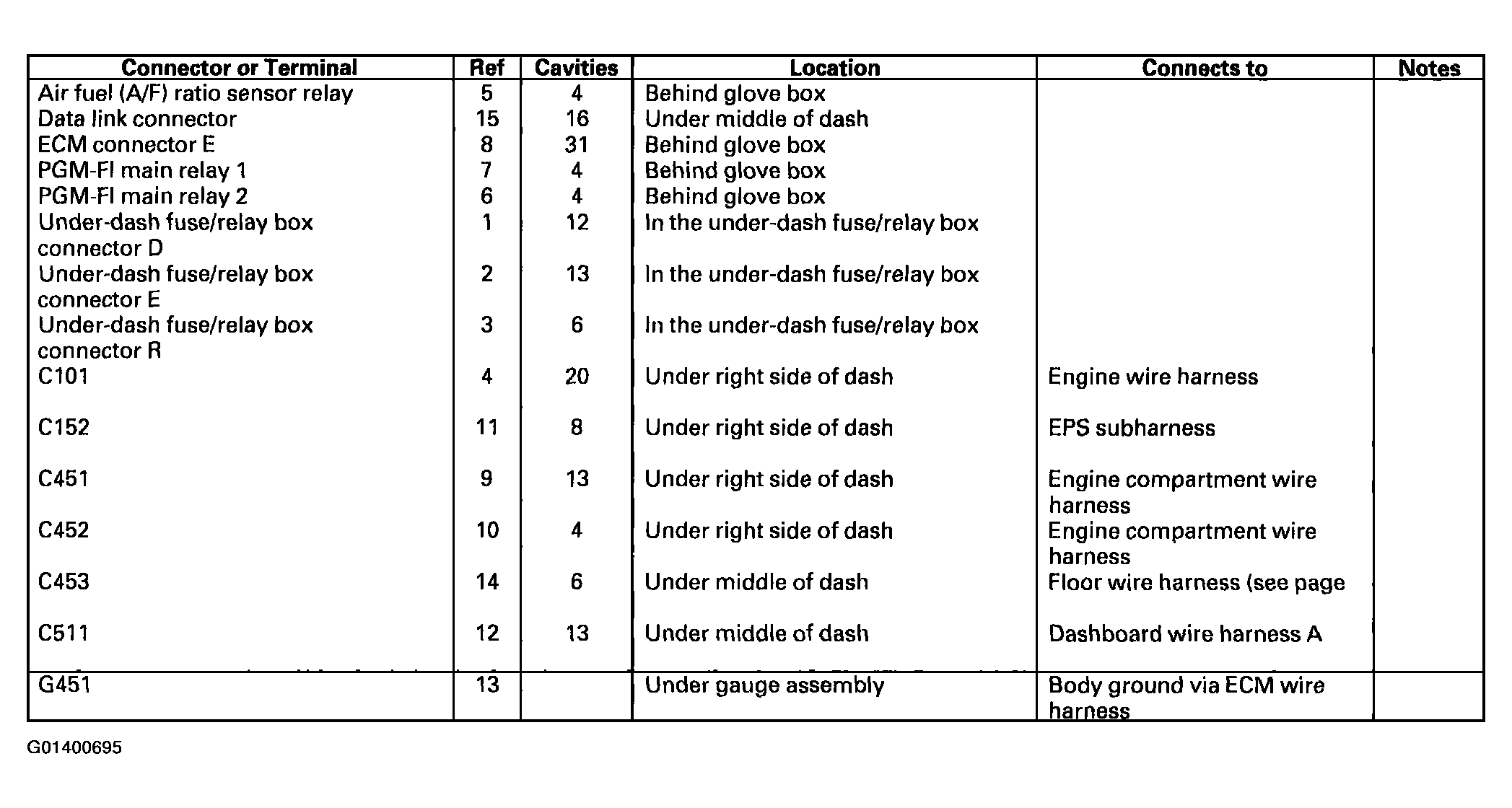

Fig 1: ECM Wire Harness Locations Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

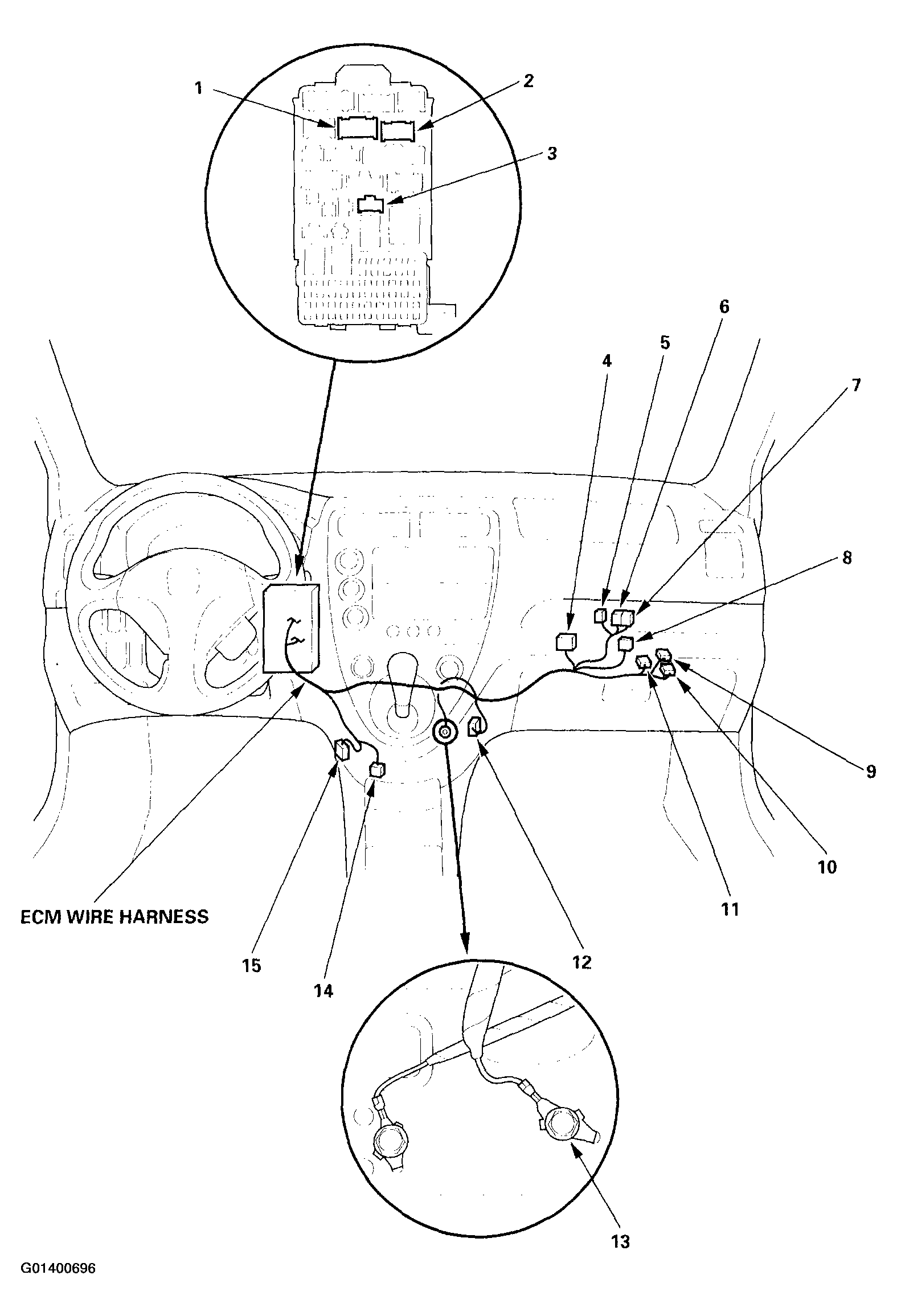

Fig 2: Identifying ECM Wire Harness Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
