Dashboard Wire Harness B

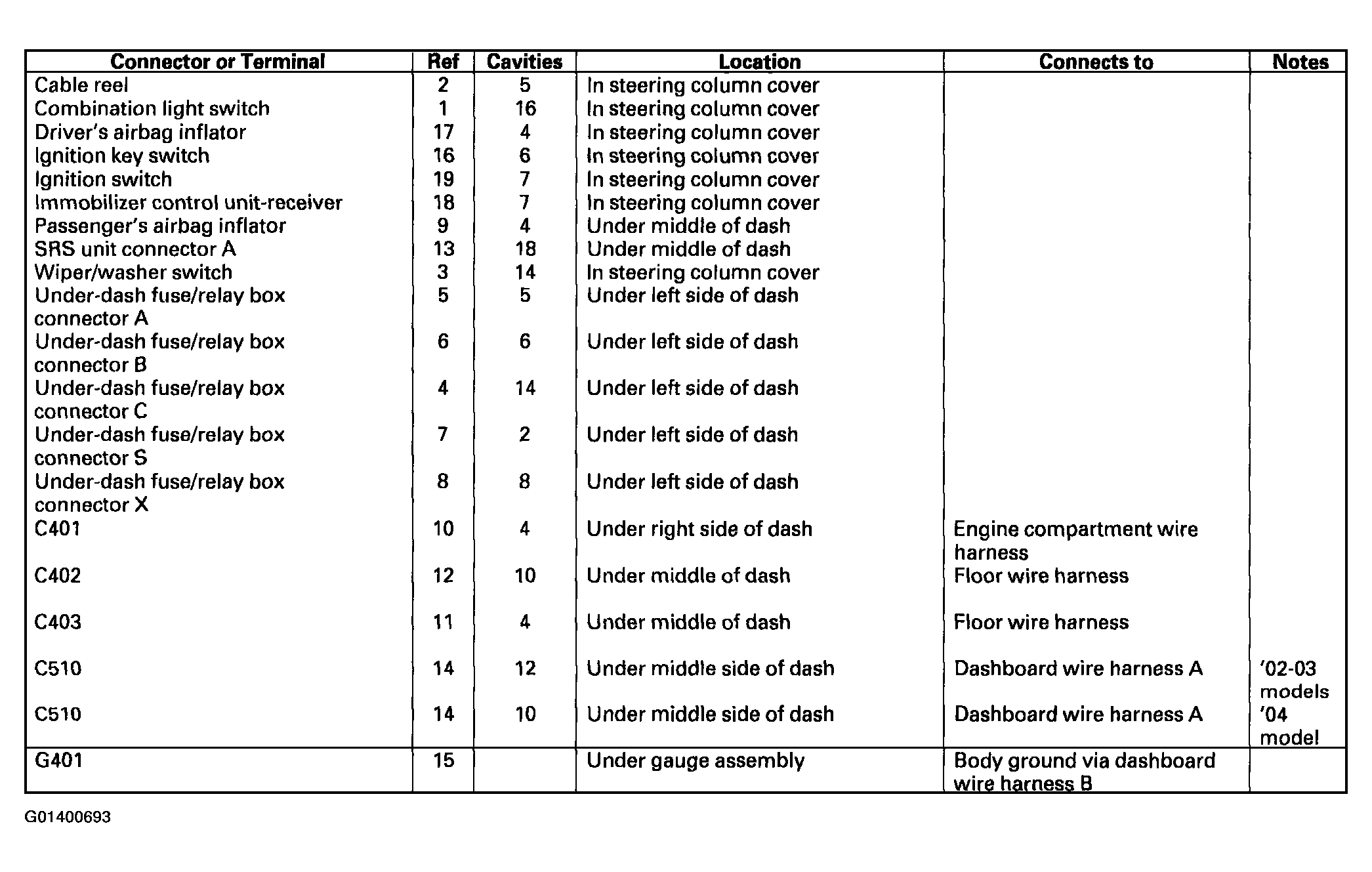

Fig 1: Dashboard Wire Harness B Locations Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

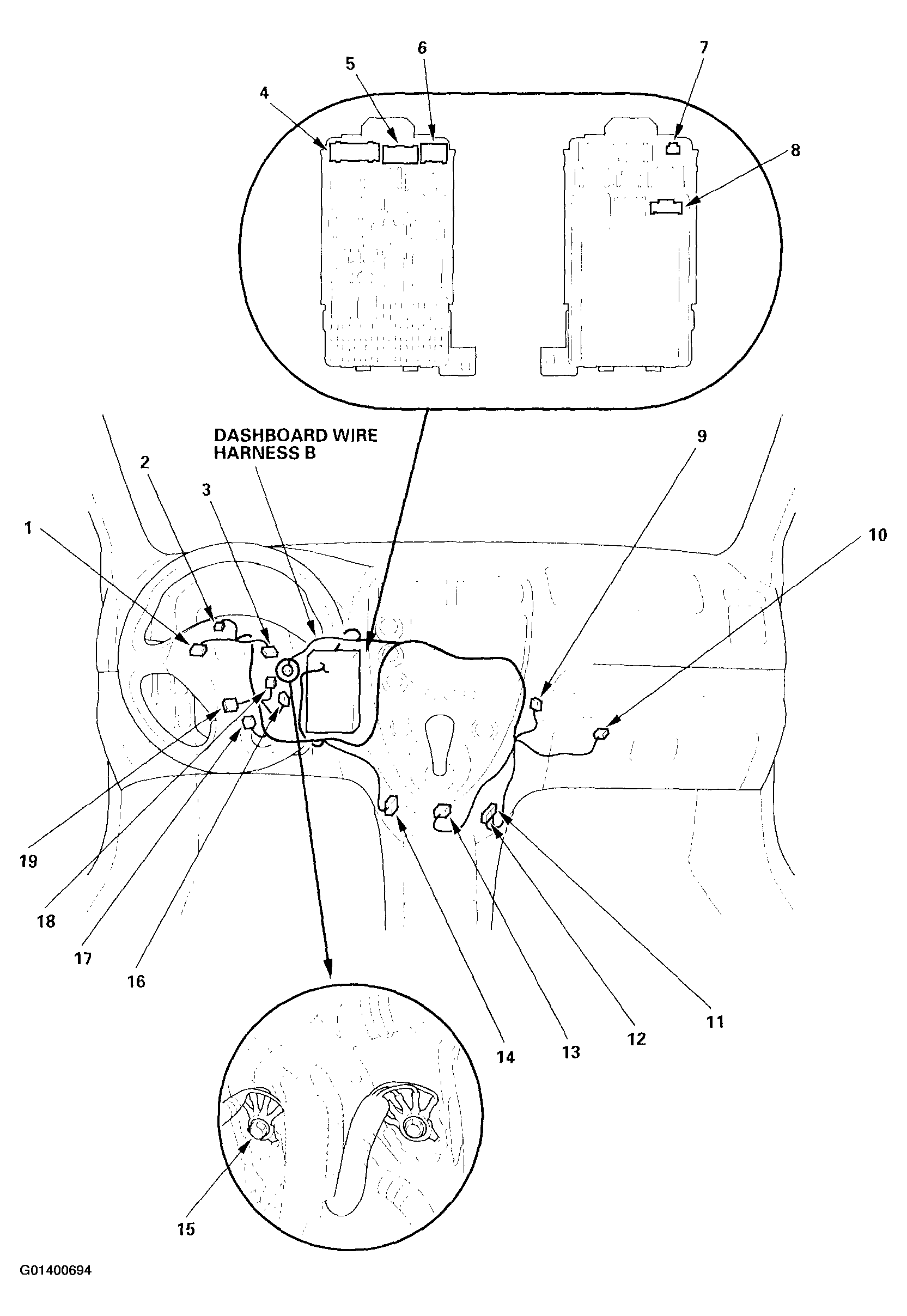

Fig 2: Identifying Dashboard Wire Harness B Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
