Dashboard Wire Harness A (Right branch)

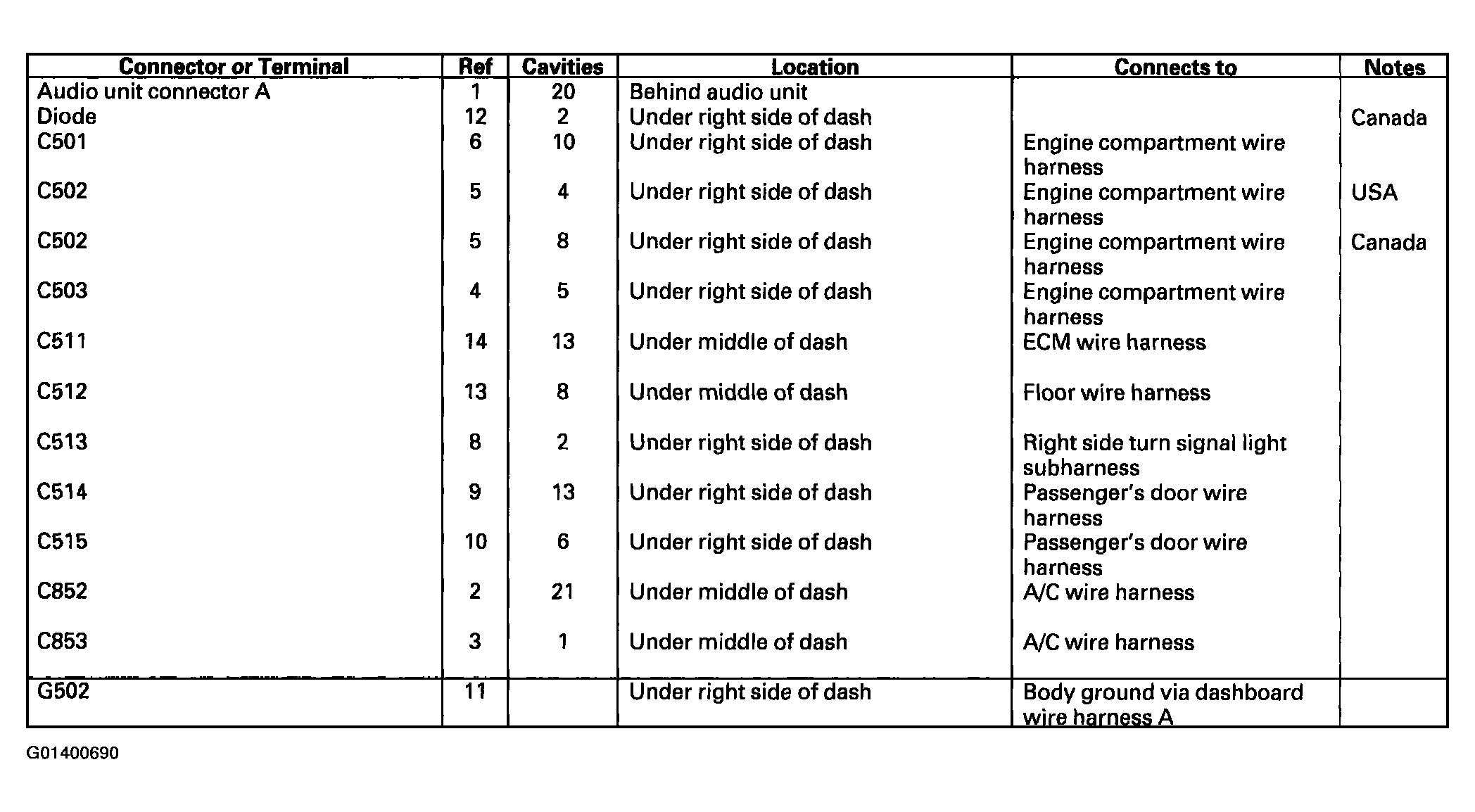

Fig 1: Dashboard Wire Harness A (Right Branch) Locations Chart

G01400690

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Also see Figure .
