Dashboard Wire Harness A (Left branch)

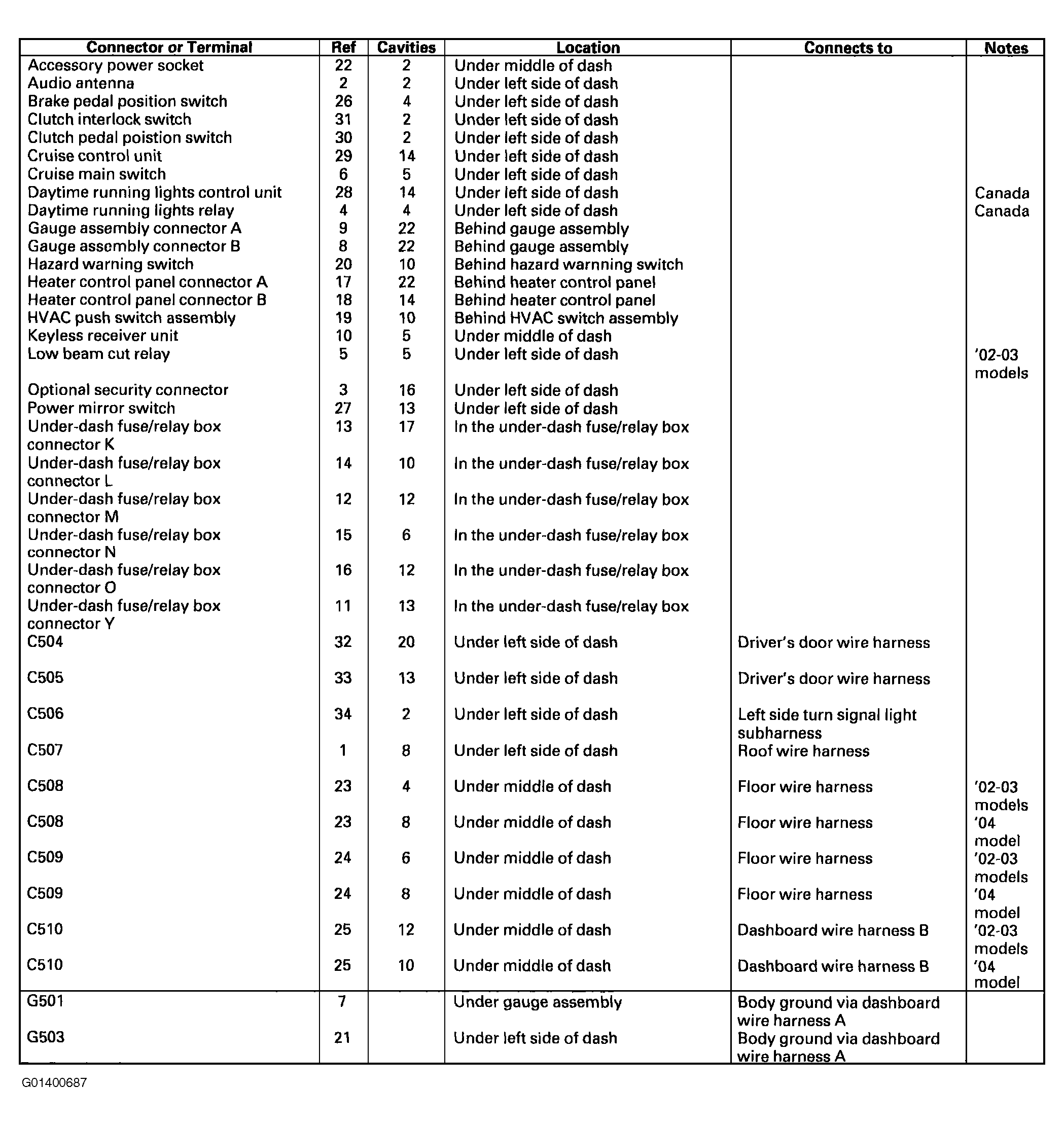

Fig 1: Dashboard Wire Harness A (Left Branch) Locations Chart

G01400687

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Also see Figure .
