Passenger's Dashboard Lower Cover Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

Remove the passenger's dashboard lower cover (A).
1. Gently pull down the rear edge to release the clips.
2. Pull the cover away to release the pins (B) from the holders (C).

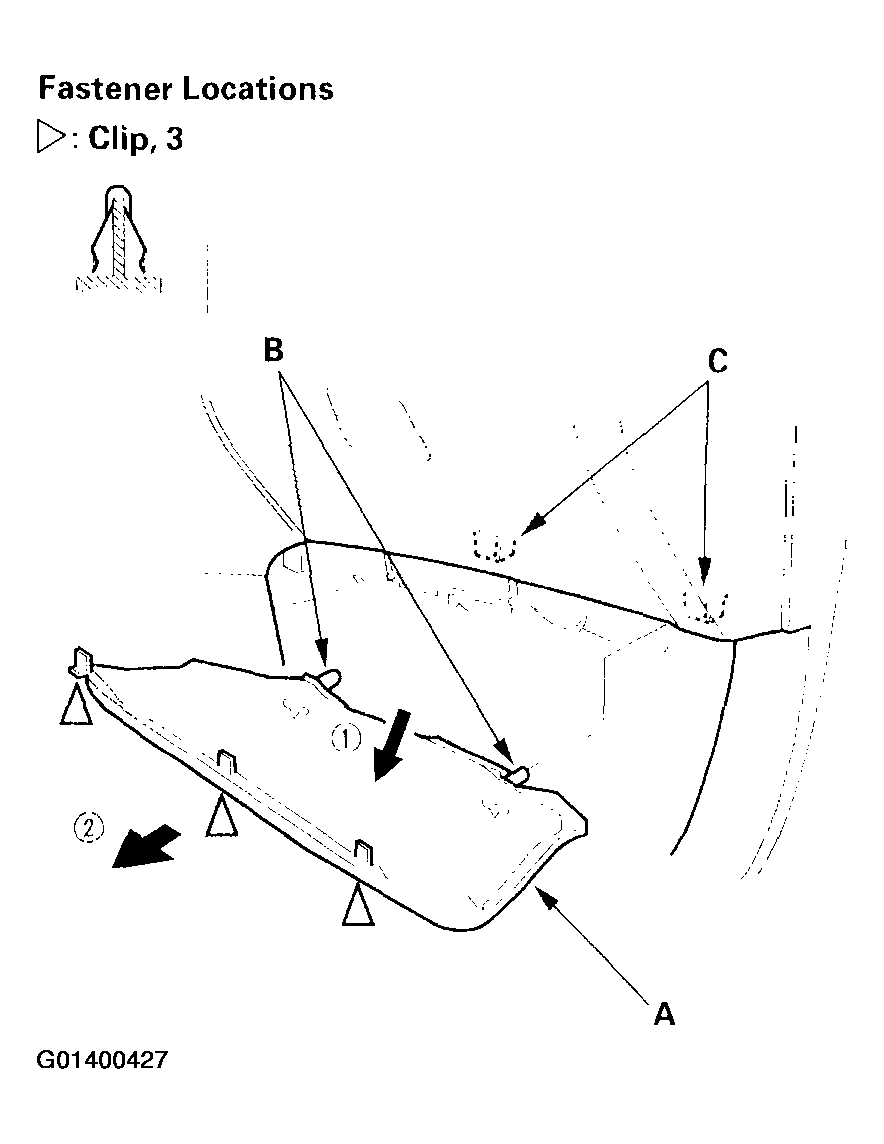

Fig 1: Removing Passenger's Dashboard Lower Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the under cover in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
