Driver's Dashboard Under Cover Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

Remove the driver's dashboard under cover (A).
1. Turn the lock knob (B) 90°.
2. Gently pull down the rear edge to release the clip.
3. Pull the cover away to release it from the clip (C).

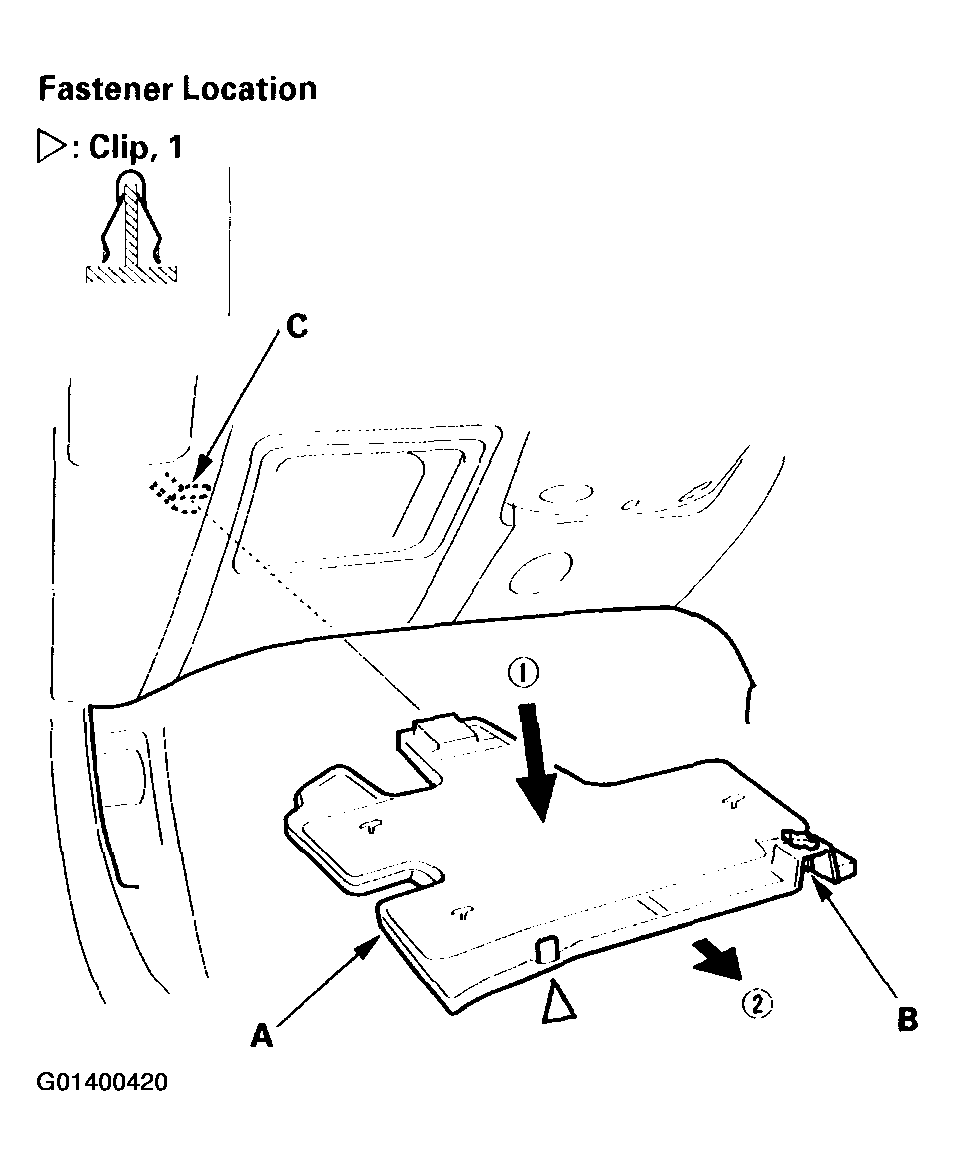

Fig 1: Removing Driver's Dashboard Under Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- Replace the clip if it's damaged.
- Push the clip into place securely.
