Console Removal/Installation

NOTE: Take care not to scratch the front seat, dashboard, and related parts.

Remove the rear console (A).
1. Slide the front seat forward fully on each side.
2. Remove the screws (B) from the rear portion of the rear console.
3. Slide the front seat rearward fully on each side.
4. Pull the front portion of the rear console up to detach the clips (C) and hooks (D), then release the rear console from the front console (E).
5. Starting at the rear, pull the rear console up, then remove it.

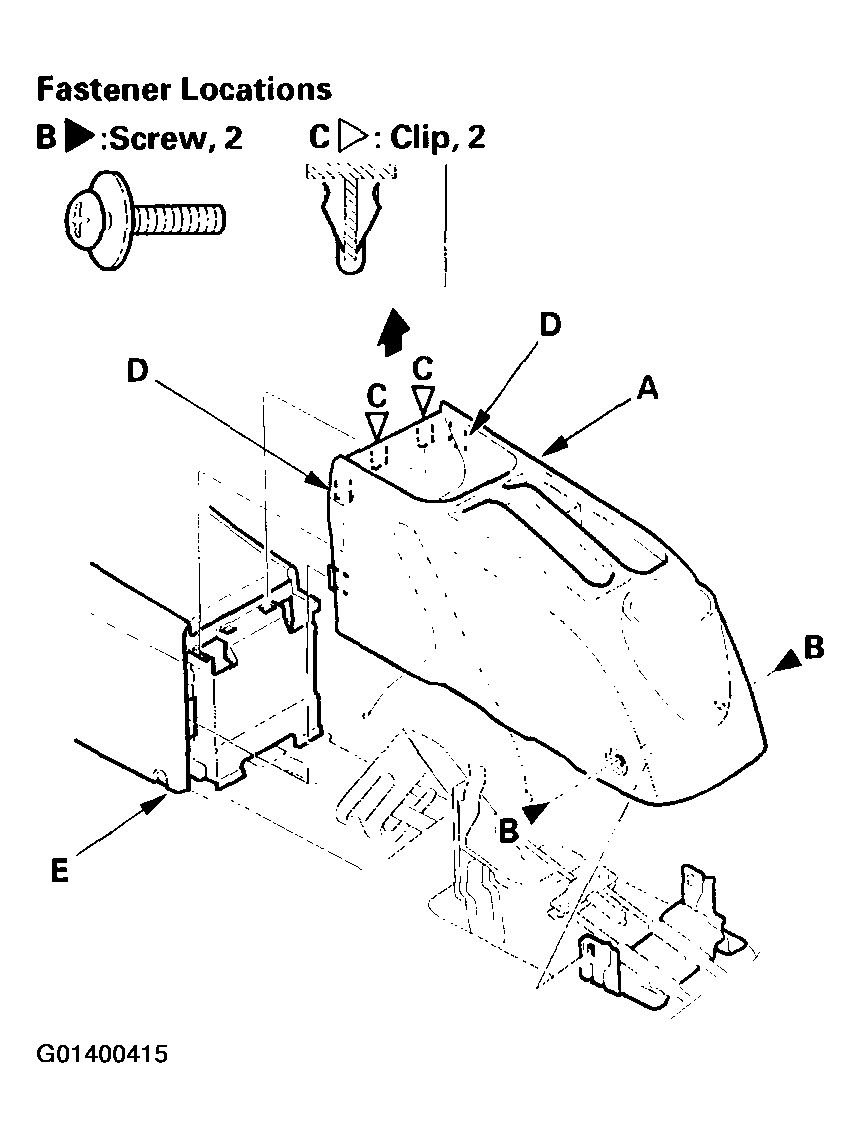

Fig 1: Removing The Rear Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the front console (A).
1. Pull out the dashboard center lower cover (B) to detach the clips (C).
2. Disconnect the accessory power socket connector (D).
3. Remove the console box mat (E).
4. Remove the bolts (F), screws (G), and clips (H).
5. Gently pull out the front console to release the hooks (I) and pins (J).

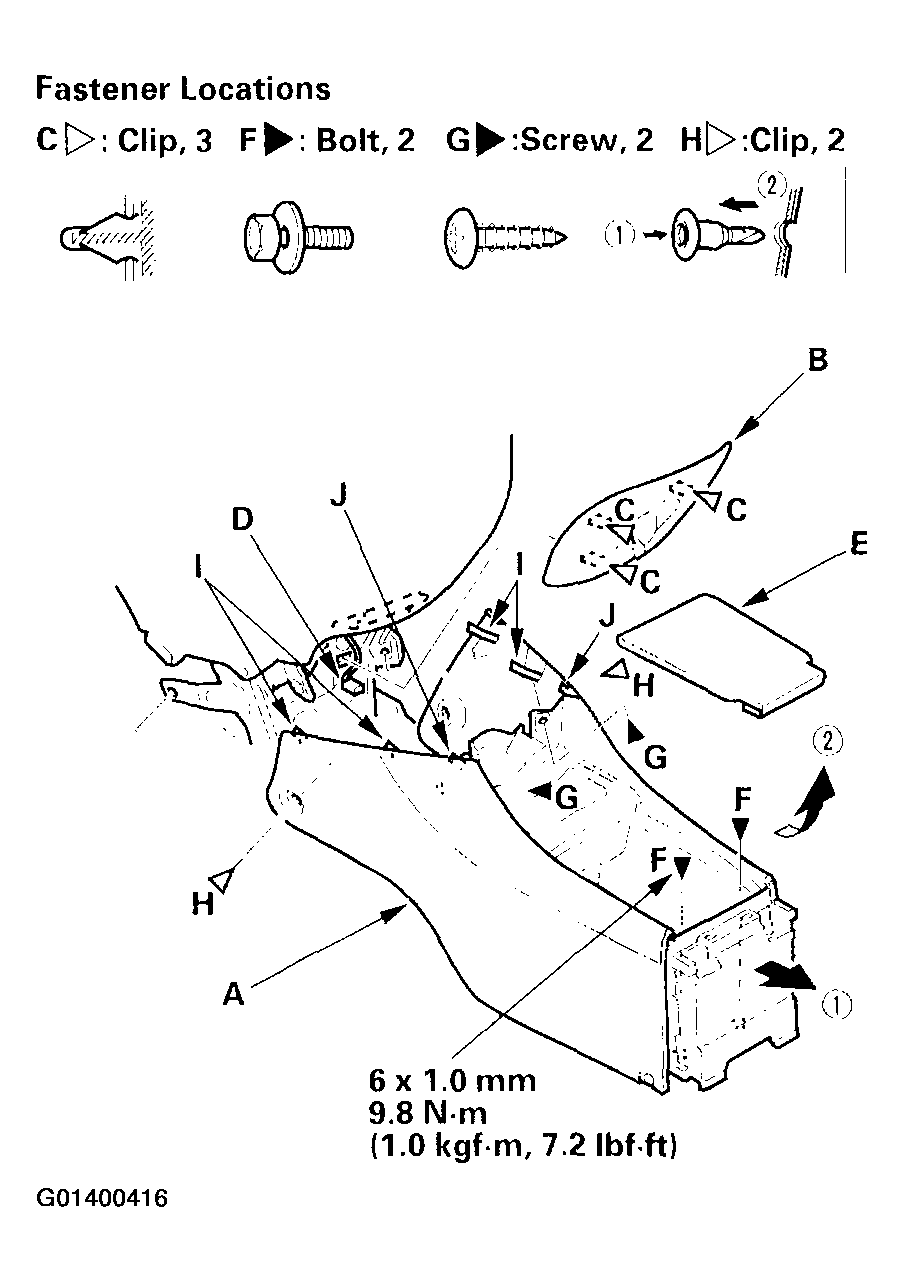

Fig 2: Removing The Front Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the console in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the accessory power socket connector is plugged in properly.
- Push the clips into place securely.
