VSS Replacement

  1. Remove the intake resonator.
  2. Disconnect the 3P connector from the vehicle speed sensor (VSS) (A).

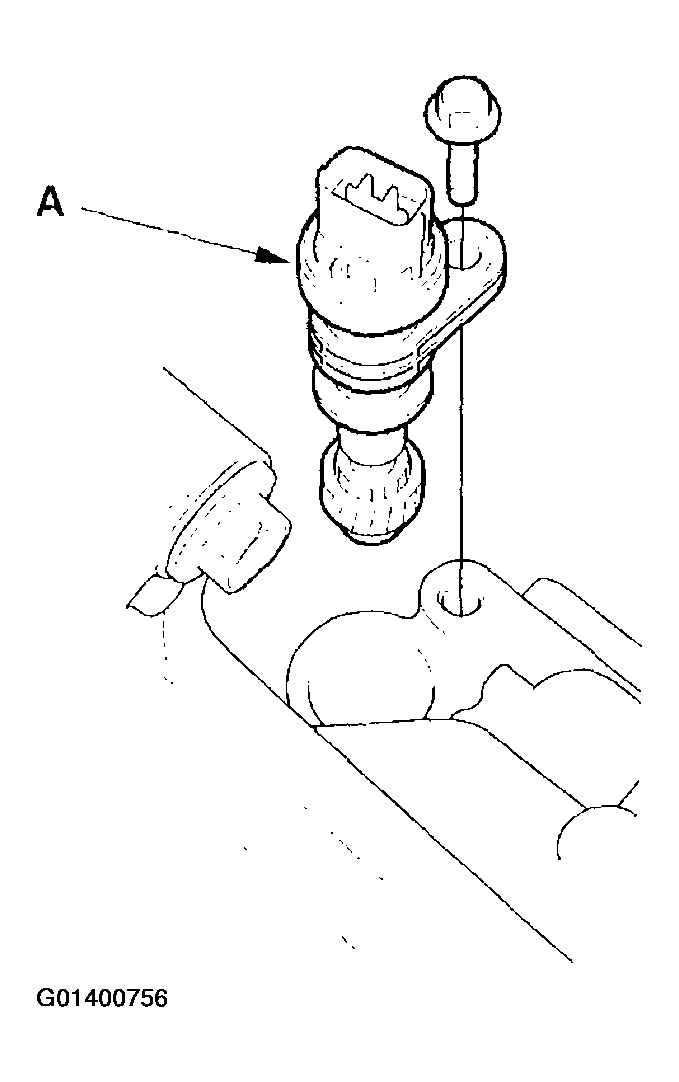

    Fig 1: Disconnecting The 3P Connector From The Vehicle Speed Sensor
    G01400756Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the mounting bolt, then remove the VSS.
  4. Install the VSS in the reverse order of removal.
