Entering the self-diagnosis function
Before doing the self-diagnostic function, check the No. 9 (10A) fuse in the under-hood fuse/relay box and No. 10 (7.5A) fuse in the under-dash fuse/relay box.

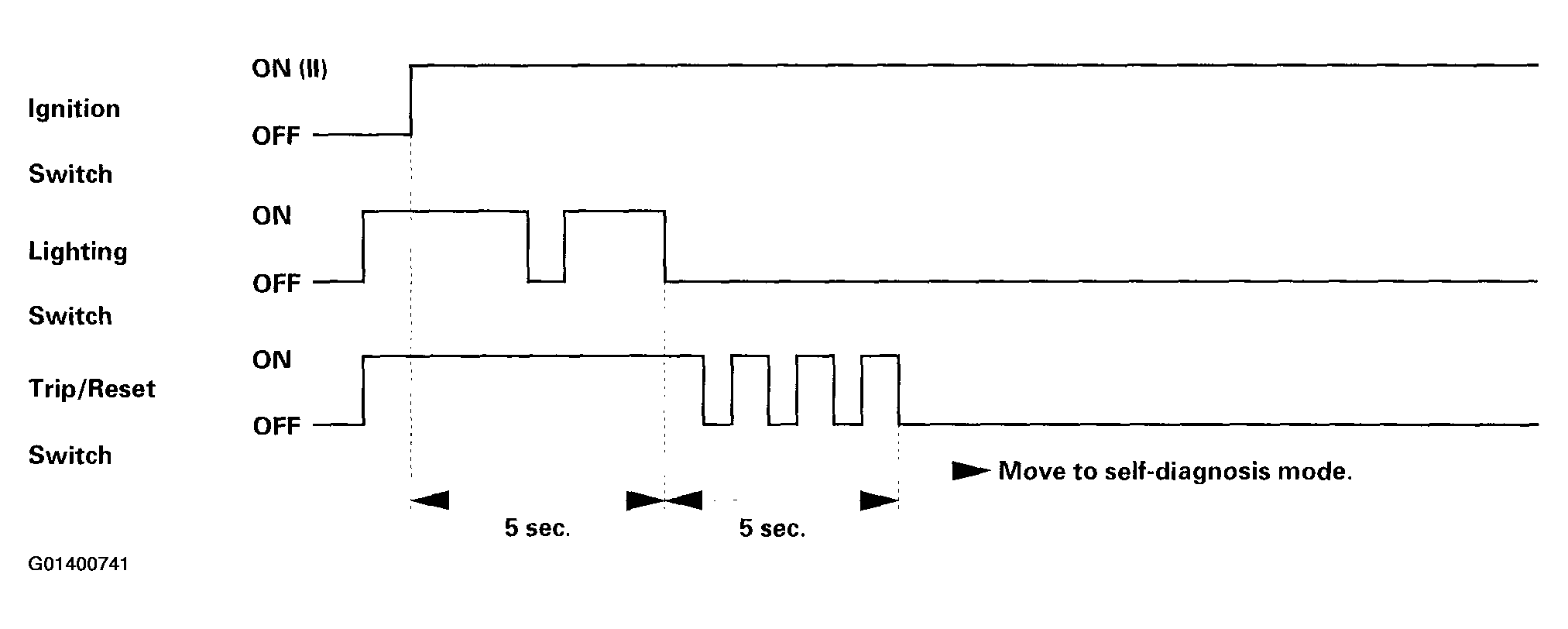

- Push and hold the trip/reset button.
- Turn the lighting switch ON.
- Turn the ignition switch ON (II).
- Within 5 sec., turn the lighting switch OFF, then ON and OFF again.
- Within 5 sec., release the trip/reset button, then push and release the button four times repeatedly.
NOTE:
- While in the self-diagnostic function, the dash lights brightness controller operates normally.
- While in the self-diagnostic function, the trip/reset button is used to start the beeper drive circuit check and the gauge drive circuit check.
- If the vehicle speed exceeds 1.2 mph (2 km/h) or the ignition switch is turned OFF, the self-diagnostic function ends.
